GX340 K1 QPE2 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-9999999) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

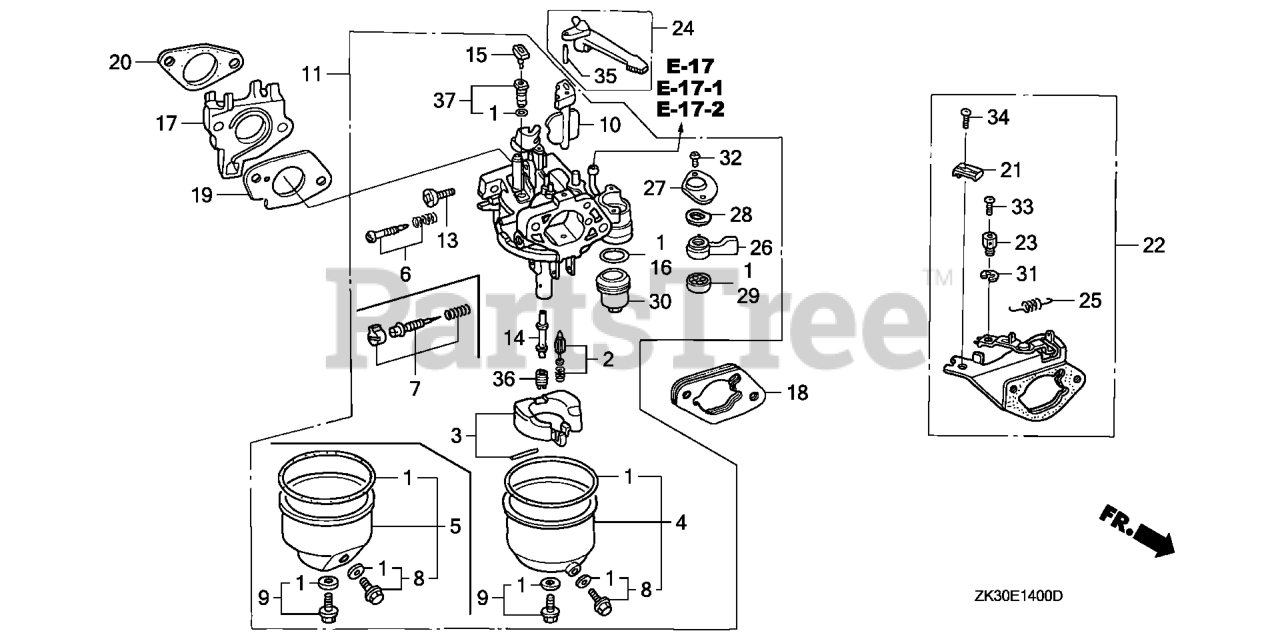

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET (INCLUDE 16173-001-004) (INCLUDES 16173-001-004)

$18.99

$

In Stock, Qty 20+

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$43.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$49.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 2089993).

Note: Use up to Engine SN BE80B A.

$44.99

$

Usually ships in 3-6 days

0

5

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 2089993).

Note: Use from Engine SN BE80B B.

$44.99

$

Usually ships in 3-6 days

0

7

Honda 16016-ZH7-W01

SEE PART DETAILS - PRI; SCREW SET (Honda Code 4219879). (CARBURETOR NO.)

$20.99

$

In Stock, only 2 left!

0

8

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

9

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

9

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

10

Honda 16044-ZE3-811

CHOKE SET (Honda Code 2107852).

$35.99

$

Usually ships in 3-6 days

0

11

Honda 16100-ZE3-V01

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE80B B)

$110.99

$

Usually ships in 3-6 days

0

13

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

14

Honda 16166-ZE3-W50

NOZZLE, MAIN (CARBURETOR NO.)

$26.99

$

Usually ships in 3-6 days

0

15

Honda 16172-ZE3-W10

COLLAR, SET (Honda Code 3738358).

$10.99

$

Usually ships in 3-6 days

0

16

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$7.49

$

In Stock, Qty 8

0

17

Honda 16211-ZE3-000

INSULATOR, CARBURETOR (Honda Code 2107886).

$19.99

$

In Stock, only 1 left!

0

18

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$11.99

$

In Stock, only 1 left!

0

19

Honda 16221-ZE3-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3795358).

$2.99

$

In Stock, Qty 20+

0

20

Honda 16223-ZE3-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 3795366).

$2.99

$

Usually ships in 3-6 days

0

24

Honda 16610-ZE1-000

LEVER, CHOKE (STD) (Honda Code 1440114).

$10.99

$

In Stock, Qty 11

0

26

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE (Honda Code 5167358).

Note: Use up to Engine SN BE80B A.

$13.99

$

Usually ships in 3-6 days

0

26

Honda 16953-ZE1-812

LEVER, VALVE (Honda Code 5140876).

Note: Use from Engine SN BE80B B.

$10.99

$

In Stock, Qty 10

0

27

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

Note: Use from Engine SN BE80B B. Use up to Engine SN BE80B B.

$4.49

$

In Stock, only 1 left!

0

28

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$3.99

$

In Stock, only 1 left!

0

29

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$4.49

$

In Stock, Qty 7

0

30

Honda 16967-ZE0-811

CUP, FUEL STRAINER (Honda Code 1441583).

$22.99

$

In Stock, only 1 left!

0

32

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

Note: Use from Engine SN BE80B B.

$1.49

$

In Stock, Qty 5

0

32

Honda 93500-03008-1G

SCREW, PAN (3X8) (CARBURETOR NO.)

Note: Use up to Engine SN BE80B A.

$

$

Currently unavailable

35

Honda 94305-20122

PIN, SPRING (2X12) (Honda Code 1441591).

$2.49

$

In Stock, Qty 5

0

36

Honda 99101-ZH7-0920

JET, MAIN (#92) (CARBURETOR NO.)

Note: Use up to Engine SN BE80B A.

$8.49

$

Usually ships in 3-6 days

0

36

Honda 99101-ZH8-0880

SEE PART DETAILS - PRI; JET, MAIN (#88) Use up to Engine SN BE81B B.

Note: Use from Engine SN BE80B B. (Optional) Use up to Engine SN BE80B A.

$7.99

$

In Stock, only 1 left!

0

36

Honda 99101-ZH8-0900

SEE PART DETAILS - PRI; JET, MAIN (#90) Use from Engine SN BE81B C.

Note: Use from Engine SN BE80B B. (Optional) Use up to Engine SN BE80B A.

$7.99

$

In Stock, only 2 left!

0

36

Honda 99101-ZH8-0920

SEE PART DETAILS - PRI; JET, MAIN (#92) (Honda Code 5947163).

Note: Use from Engine SN BE80B B.

$7.99

$

In Stock, only 1 left!

0

37

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

$22.99

$

In Stock, only 1 left!

0
