GX340 K1 QNR2 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) CONTROL BOX (1) Parts Diagram

Engine, Made in Japan

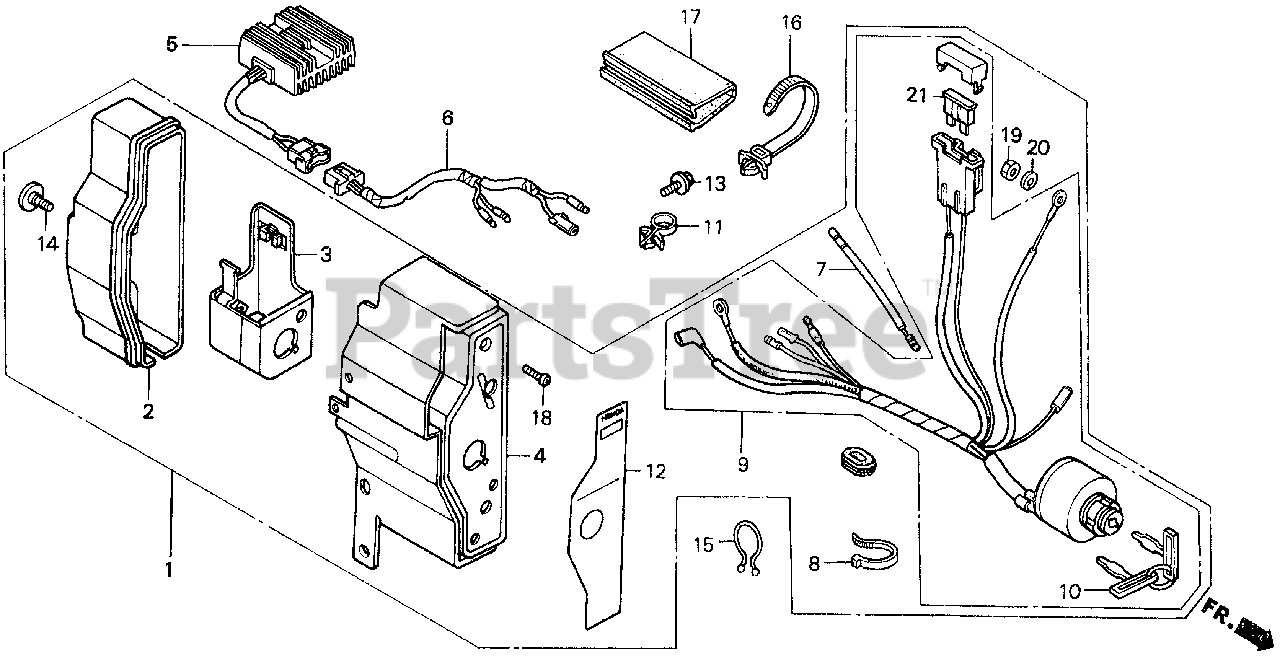

CONTROL BOX (1) Parts Diagram

  • Title

1

Honda 31610-ZE3-W42ZA

BOX ASSY., CONTROL (EXTERNAL-ALERT-18A) *NH1* (BLACK)

Note: Use from Engine SN 2801238. (Honda Code 6139927).

$266.99

$

Usually ships in 3-6 days

0

1

Honda 31610-ZE3-W42ZB

SEE PART DETAILS - PRI; BOX ASSY., CONTROL (EXP-ALT,18A) *R8* (BRIGHT RED)

Note: (Honda Code 5960802).

$

$

Currently unavailable

2

Honda 31612-ZE2-003

SEE PART DETAILS - PRI; CASE, CONTROL

Note: (Honda Code 2095875).

$22.99

$

Usually ships in 3-6 days

0

3

Honda 31614-ZE2-003

SEE PART DETAILS - PRI; BRACKET, CASE MOUNTING

Note: (Honda Code 2095883).

$18.99

$

Usually ships in 3-6 days

0

4

Honda 31615-ZE3-003ZA

PANEL, CONTROL *NH1* (BLACK)

Note: (Honda Code 4475489).

$36.99

$

Usually ships in 3-6 days

0

4

Honda 31615-ZE3-003ZB

SEE PART DETAILS - PRI; PANEL, CONTROL *R8* (BRIGHT RED)
(Superseded to 31615-ZE3-003ZE)

Note: (Honda Code 4070280).

$30.99

$

Usually ships in 3-6 days

0

5

Honda 31620-ZG5-003

RECTIFIER ASSY., REGULATOR (20A)
(Superseded to 31620-ZG5-033)

Note: (Honda Code 4210225).

$205.99

$

In Stock, only 3 left!

0

6

Honda 32110-ZE2-W00

SUB-WIRE HARNESS ASSY.

Note: (Honda Code 4687802).

$48.99

$

Usually ships in 3-6 days

0

7

Honda 32197-ZE1-003

SUB-HARNESS

Note: (Honda Code 4331096).

$12.99

$

Usually ships in 3-6 days

0

8

Honda 32902-892-003

BAND

Note: (Honda Code 0947457).

$4.99

$

In Stock, only 1 left!

0

9

Honda 35100-ZE2-W01

SWITCH ASSY., COMBINATION (18A-CHARGE)

Note: (Honda Code 4687901).

$134.99

$

Usually ships in 3-6 days

0

10

Honda 35111-880-003

KEY
(Superseded to 35111-880-013)

Note: (Honda Code 0485706).

$11.99

$

In Stock, only 3 left!

0

11

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

Note: (Honda Code 1429141).

$2.99

$

In Stock, only 1 left!

0

12

Honda 87529-ZE2-860

MARK, CONTROL BOX (EXTERNAL-REGULATOR)

Note: (Honda Code 4212486).

$

$

Currently unavailable

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

14

Honda 90380-MA6-010

SEE PART DETAILS - PRI; SCREW, SPECIAL (6X12)

Note: (Honda Code 1490648).

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90630-751-000

CLIP, PURSE LOCK

Note: (Honda Code 2159598).

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L* (BLACK)

Note: (Honda Code 1170653).

$9.99

$

In Stock, only 1 left!

0

17

Honda 91406-ZE2-003

TUBE, FASTENER (30)

Note: (Honda Code 2159762).

$7.49

$

Usually ships in 3-6 days

0

18

Honda 93500-04012-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X12)

Note: (Honda Code 0285643).

$1.49

$

In Stock, Qty 10

0

19

Honda 94001-04390-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM)

Note: Use from Engine SN 2801238. (Honda Code 0499707).

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94111-04800

WASHER, SPRING (4MM)

Note: (Honda Code 0346114).

$1.49

$

Usually ships in 3-6 days

0

21

Honda 98200-32500

FUSE, BLADE (25A)

Note: (Honda Code 4210589).

$3.49

$

Usually ships in 3-6 days

0

22

Honda 34150-ZH7-003

ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use from Engine SN 2801238. (Honda Code 5858444).

$53.99

$

In Stock, only 1 left!

0

23

Honda 94101-04800

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM)

Note: Use from Engine SN 2801238. (Honda Code 0331462).

$1.49

$

Usually ships in 3-6 days

0
