GX340 K1 QNE (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) CONTROL BOX (10A) Parts Diagram

Engine, Made in Japan

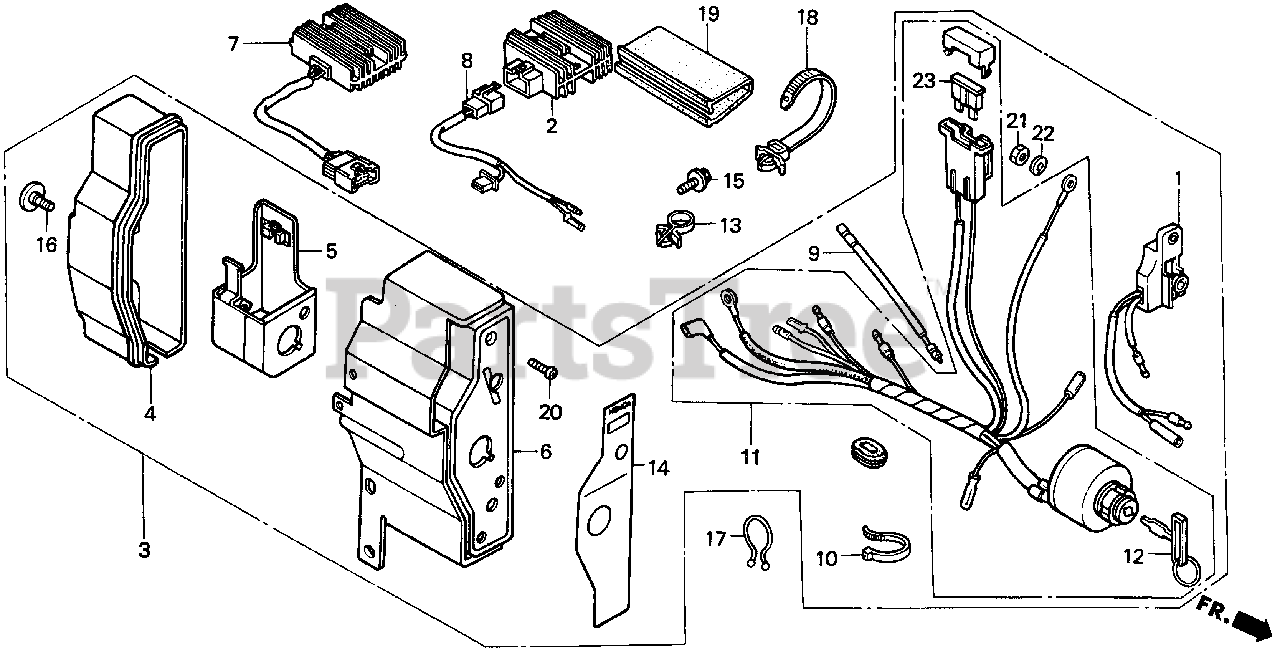

CONTROL BOX (10A) Parts Diagram

  • Title

1

Honda 15520-ZE2-822

SEE PART DETAILS - PRI; ALERT UNIT, OIL (SEL)

Note: Use up to Engine SN 2143683. (Honda Code 2095222).

$

$

Not available

2

Honda 31600-ZE2-861

RECTIFIER ASSY., REGULATOR

Note: (Honda Code 2534915).

$240.99

$

Usually ships in 3-6 days

0

3

Honda 31610-ZE3-W31ZB

SEE PART DETAILS - PRI; BOX ASSY., CONTROL (10A) *R8* (EXTERNAL-ALERT) (BRIGHT RED)

Note: Use up to Engine SN 2143683. (Honda Code 4070264).

$

$

Not available

3

Honda 31610-ZE3-W33ZB

SEE PART DETAILS - PRI; BOX ASSY., CONTROL (EXTERNAL-ALERT/10A) *R8* (BRIGHT RED)

Note: Use from Engine SN 2143684. (Honda Code 5962618).

$

$

Currently unavailable

4

Honda 31612-ZE2-003

SEE PART DETAILS - PRI; CASE, CONTROL

Note: (Honda Code 2095875).

$23.99

$

Usually ships in 3-6 days

0

5

Honda 31614-ZE2-003

SEE PART DETAILS - PRI; BRACKET, CASE MOUNTING

Note: (Honda Code 2095883).

$19.99

$

Usually ships in 3-6 days

0

6

Honda 31615-ZE3-003ZB

SEE PART DETAILS - PRI; PANEL, CONTROL *R8* (BRIGHT RED)
(Superseded to 31615-ZE3-003ZE)

Note: (Honda Code 4070280).

$31.99

$

Usually ships in 3-6 days

0

8

Honda 32110-ZE2-860

SUB-WIRE HARNESS ASSY.

Note: (Honda Code 2534931).

$50.99

$

Usually ships in 3-6 days

0

10

Honda 32902-892-003

BAND

Note: (Honda Code 0947457).

$4.99

$

In Stock, only 4 left!

0

11

Honda 35100-ZE2-862

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION

Note: (Honda Code 3713427).

$174.99

$

Usually ships in 3-6 days

0

12

Honda 35111-880-003

KEY
(Superseded to 35111-880-013)

Note: (Honda Code 0485706).

$12.99

$

In Stock, Qty 5

0

13

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

Note: (Honda Code 1429141).

$2.99

$

In Stock, only 1 left!

0

14

Honda 87529-ZE2-860

MARK, CONTROL BOX (EXTERNAL-REGULATOR)

Note: Use from Engine SN 2143684. (Honda Code 4212486).

$

$

Currently unavailable

14

Honda 87529-ZE2-870

MARK, CONTROL BOX (EXTERNAL-ALERT-REG)

Note: Use up to Engine SN 2143683. (Honda Code 2537074).

$

$

Not available

15

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

16

Honda 90380-MA6-010

SEE PART DETAILS - PRI; SCREW, SPECIAL (6X12)

Note: (Honda Code 1490648).

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90630-751-000

CLIP, PURSE LOCK

Note: (Honda Code 2159598).

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L* (BLACK)

Note: (Honda Code 1170653).

$10.99

$

Usually ships in 3-6 days

0

19

Honda 91406-ZE2-003

TUBE, FASTENER (30)

Note: (Honda Code 2159762).

$7.49

$

Usually ships in 3-6 days

0

20

Honda 93500-04012-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X12)

Note: (Honda Code 0285643).

$1.49

$

In Stock, only 2 left!

0

21

Honda 94001-04390-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM)

Note: (Honda Code 0499707).

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94111-04800

WASHER, SPRING (4MM)

Note: (Honda Code 0346114).

$1.49

$

Usually ships in 3-6 days

0

23

Honda 98200-31500

FUSE, BLADE (15A)

Note: (Honda Code 1644244).

$1.99

$

In Stock, Qty 6

0
