GX340 K1 QN18 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-9999999) MUFFLER (2) Parts Diagram

Engine, Made in Japan

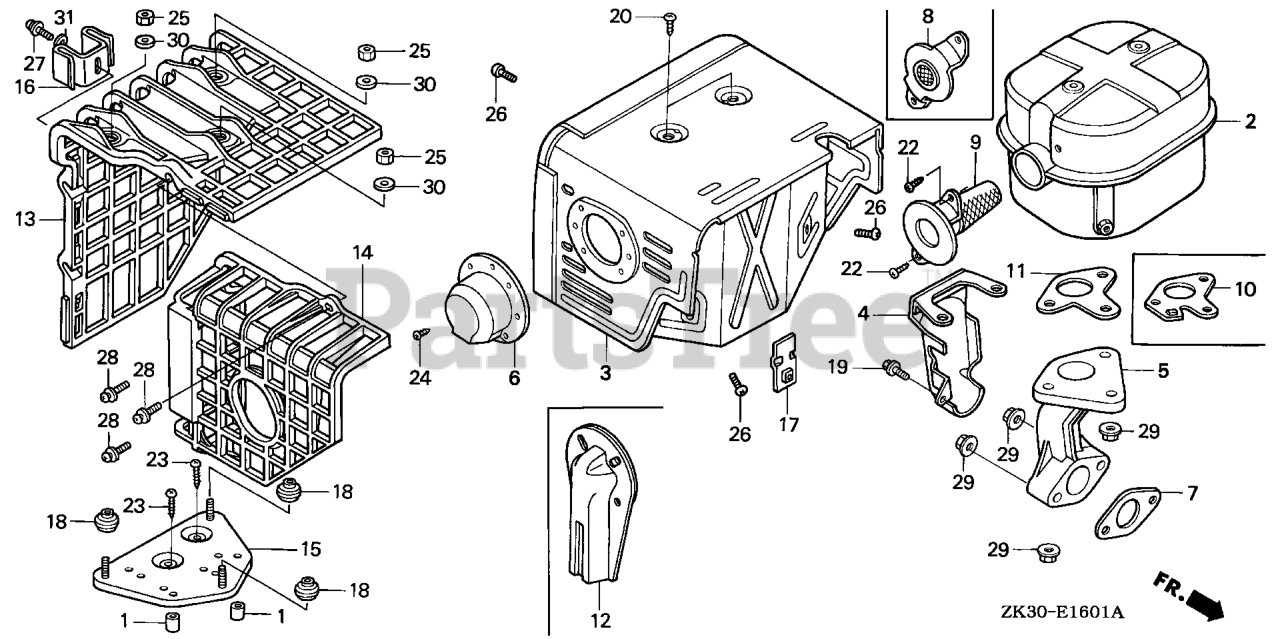

MUFFLER (2) Parts Diagram

  • Title

2

Honda 18310-ZE3-W00

MUFFLER

$176.99

$

Usually ships in 3-6 days

0

3

Honda 18320-ZE3-W02

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER

$78.99

$

Usually ships in 3-6 days

0

4

Honda 18323-ZE3-W40

PROTECTOR, EX. PIPE

$27.99

$

In Stock, only 1 left!

0

5

Honda 18330-ZE2-W00

PIPE, EX.

$76.99

$

In Stock, only 1 left!

0

6

Honda 18331-ZE3-811

SEE PART DETAILS - PRI; CAP, MUFFLER

$11.99

$

In Stock, only 2 left!

0

7

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE Use up to Engine SN 2949254.
(Superseded to 18333-ZK6-Y00)

Note: Use up to Engine SN 2582468.

$4.99

$

In Stock, Qty 20+

0

7

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE (WACKER) (Honda Code 5164199).

Note: Use from Engine SN 2582469 to 3030997. Use up to Engine SN 2582468.

$4.99

$

In Stock, Qty 20+

0

7

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

Note: Use from Engine SN 3030998.

$2.99

$

In Stock, only 3 left!

0

8

Honda 18336-ZE3-000

FLANGE, BAFFLE (Honda Code 2309581).

$13.99

$

Usually ships in 3-6 days

0

9

Honda 18355-ZE3-010

SEE PART DETAILS - PRI; ARRESTER, SPARK (Honda Code 2537207).

Note: (Optional)

$36.99

$

Usually ships in 3-6 days

0

11

Honda 18381-ZE2-800

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 3678810).
(Superseded to 18381-ZE2-801)

$14.99

$

In Stock, only 1 left!

0

11

Honda 18381-ZE2-801

SEE PART DETAILS - PRI; GASKET, MUFFLER (NIPPON LEAKLESS)

$14.99

$

In Stock, only 1 left!

0

19

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use up to Engine SN 2644833.

$1.99

$

In Stock, Qty 20+

0

20

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

24

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

$1.49

$

In Stock, Qty 11

0

26

Honda 93500-06006-0B

SCREW, PAN (6X6)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0
