GX340 K1 QN18 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-9999999) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

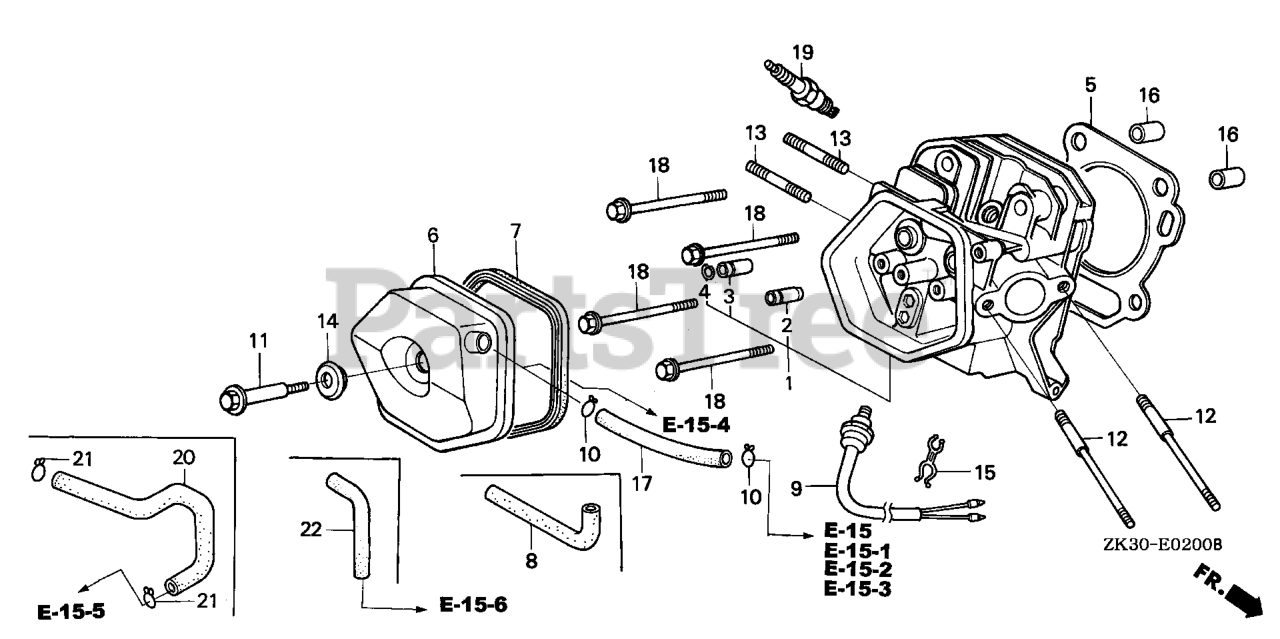

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZF6-W01

SEE PART DETAILS - PRI; CYLINDER HEAD
(Superseded to 12200-ZF6-406)

$362.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS) (Honda Code 4179164).

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE (Honda Code 2089597).

$2.49

$

In Stock, Qty 5

0

5

Honda 12251-ZE3-W00

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 3738218).
(Superseded to 12251-ZE3-W01)

$19.99

$

In Stock, only 1 left!

0

5

Honda 12251-ZE3-W01

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$19.99

$

In Stock, only 1 left!

0

6

Honda 12310-ZE2-020

COVER, HEAD

$58.99

$

In Stock, only 1 left!

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER (Honda Code 4300893).

$11.99

$

In Stock, Qty 20+

0

11

Honda 90014-ZE2-000

BOLT, HEAD COVER (Honda Code 2027035).

$6.99

$

In Stock, only 1 left!

0

12

Honda 90042-ZE8-000

BOLT, STUD (8X131.5) (Honda Code 2106656).

$8.99

$

Usually ships in 3-6 days

0

13

Honda 90047-ZE2-000

SEE PART DETAILS - SUP; BOLT, STUD (Honda Code 2027050).

Note: Use up to Engine SN 3033461.

$3.99

$

Usually ships in 3-6 days

0

13

Honda 92900-08032-0E

SEE PART DETAILS - PRI; BOLT 2, STUD (8X32) (Honda Code 2663433).

Note: Use from Engine SN 3033462.

$2.99

$

In Stock, Qty 20+

0

14

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER (Honda Code 2293918).

$6.49

$

In Stock, Qty 14

0

16

Honda 94301-12200

SEE PART DETAILS - PRI; PIN A, DOWEL (12X20) (Honda Code 0165324).

$3.49

$

Usually ships in 3-6 days

0

17

Honda 95005-11001-30M

BULK HOSE, VACUUM (11X1000) (Honda Code 4537312). (11X105)

$38.99

$

Usually ships in 3-6 days

0

18

Honda 95701-10080-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X80) (Honda Code 2545341).

$4.49

$

In Stock, only 3 left!

0

19

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

Note: (Optional)

$3.49

$

In Stock, Qty 20+

0

19

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO) (Honda Code 1672450).

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

$3.49

$

In Stock, Qty 20+

0

19

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO) (Honda Code 1441120).

$3.99

$

In Stock, Qty 11

0
