GX340 K1 QN18 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-9999999) CONTROL BOX (7) Parts Diagram

Engine, Made in Japan

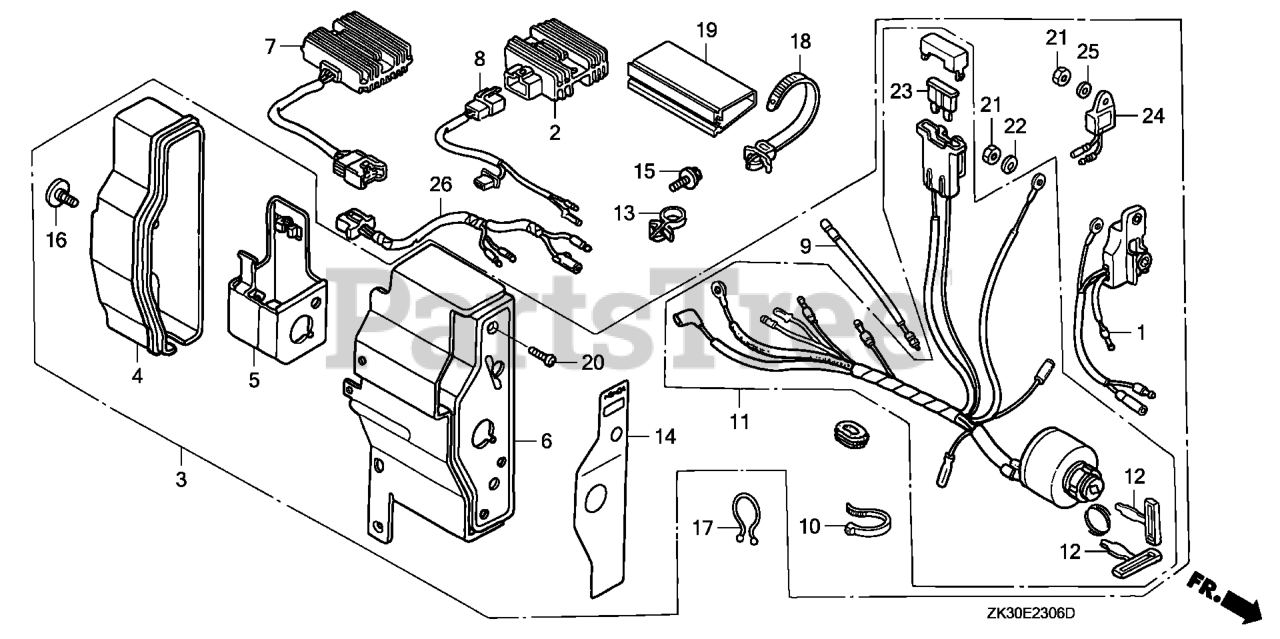

CONTROL BOX (7) Parts Diagram

  • Title

3

Honda 31610-ZE3-W42ZD

BOX ASSY., CONTROL (18A) *R280* (EXP-ALERT) (POWER RED)

$298.99

$

Usually ships in 3-6 days

0

4

Honda 31612-ZE2-003

SEE PART DETAILS - PRI; CASE, CONTROL (Honda Code 2095875).

$22.99

$

Usually ships in 3-6 days

0

5

Honda 31614-ZE2-003

SEE PART DETAILS - PRI; BRACKET, CASE MOUNTING (Honda Code 2095883).

$18.99

$

Usually ships in 3-6 days

0

6

Honda 31615-ZE3-003ZE

SEE PART DETAILS - PRI; PANEL, CONTROL *R280* (POWER RED)

$30.99

$

Usually ships in 3-6 days

0

7

Honda 31620-ZG5-033

SEE PART DETAILS - PRI; RECTIFIER ASSY., REGULATOR (20A)

$205.99

$

In Stock, only 3 left!

0

9

Honda 32197-ZE1-003

SUB-WIRE HARNESS

$12.99

$

Usually ships in 3-6 days

0

10

Honda 32902-892-003

BAND (Honda Code 0947457).

$4.99

$

In Stock, only 1 left!

0

11

Honda 35100-ZE2-W01

SWITCH ASSY., COMBINATION (18A-CHARGE)

$134.99

$

Usually ships in 3-6 days

0

12

Honda 35111-880-003

SEE PART DETAILS - SUP; KEY (Honda Code 0485706).
(Superseded to 35111-880-013)

Note: Use up to Engine SN 3838382.

$11.99

$

In Stock, only 3 left!

0

12

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY (Honda Code 7635063).

$11.99

$

In Stock, only 3 left!

0

13

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819.

$2.99

$

In Stock, only 1 left!

0

14

Honda 87529-ZE2-861

MARK, CONTROL BOX (EXTERNAL-REGULATOR)

$20.99

$

Usually ships in 3-6 days

0

15

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

16

Honda 90380-MA6-010

SEE PART DETAILS - PRI; SCREW, SPECIAL (6X12) (Honda Code 1490648).

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90630-751-000

SEE PART DETAILS - PRI; CLIP, PURSE LOCK

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L* (Honda Code 1170653). (BLACK)

$9.99

$

In Stock, only 1 left!

0

19

Honda 91406-ZE2-003

TUBE, FASTENER (30) (Honda Code 2159762).

$7.49

$

Usually ships in 3-6 days

0

20

Honda 93500-04012-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X12) (Honda Code 0285643).

$1.49

$

In Stock, Qty 10

0

21

Honda 94001-04390-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM) (Honda Code 0499707).

Note: Use from Engine SN 2801238. Use up to Engine SN 2801237.

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94111-04800

WASHER, SPRING (4MM) (Honda Code 0346114).

$1.49

$

Usually ships in 3-6 days

0

23

Honda 98200-32500

FUSE, BLADE (25A)

$3.49

$

Usually ships in 3-6 days

0

24

Honda 34150-ZH7-023

SEE PART DETAILS - PRI; ALERT UNIT, OIL

Note: Use from Engine SN 2801238.

$53.99

$

In Stock, only 1 left!

0

25

Honda 94101-04800

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM) (Honda Code 0331462).

Note: Use from Engine SN 2801238.

$1.49

$

Usually ships in 3-6 days

0

26

Honda 32110-ZE2-W00

SUB-WIRE HARNESS ASSY.

$48.99

$

Usually ships in 3-6 days

0
