GX340 K1 QAP2 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) CRANKCASE COVER (1) Parts Diagram

Engine, Made in Japan

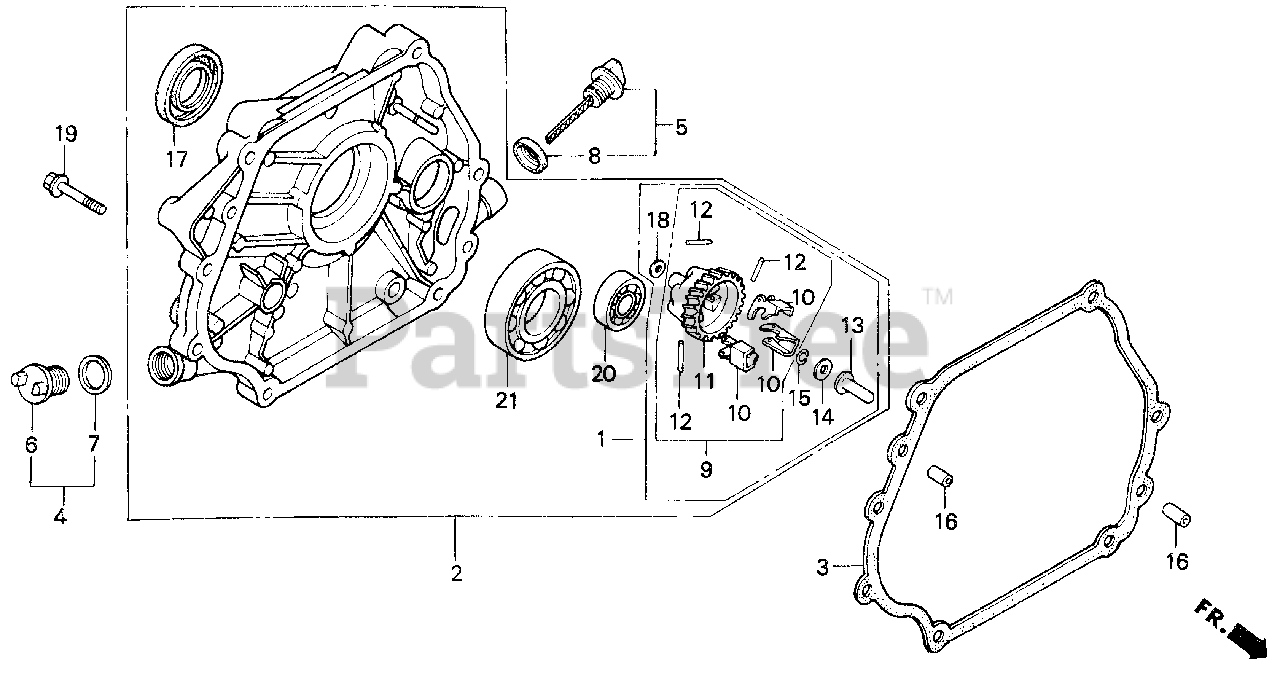

CRANKCASE COVER (1) Parts Diagram

  • Title

1

Honda 06165-ZE3-000

SEE PART DETAILS - SUP; GOVERNOR KIT
(Superseded to 06165-ZE3-020)

Note: (Optional). (Honda Code 3712940).

$25.99

$

Usually ships in 3-6 days

0

2

Honda 11300-ZE3-602

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE (Q-TYPE)
(Superseded to 11300-Z1C-601)

Note: (Honda Code 3712957).

$105.99

$

In Stock, only 1 left!

0

3

Honda 11381-ZE3-800

SEE PART DETAILS - SUP; GASKET, CASE COVER
(Superseded to 11381-ZE3-801)

Note: (Honda Code 3712965).

$13.99

$

In Stock, only 4 left!

0

3

Honda 11381-ZE3-801

SEE PART DETAILS - PRI; GASKET, CASE COVER

Note: (Honda Code 6436869).

$13.99

$

In Stock, only 4 left!

0

4

Honda 15600-ZG4-003

CAP ASSY., OIL FILLER

Note: (Honda Code 4497921).

$6.99

$

In Stock, only 1 left!

0

5

Honda 15600-735-003

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER

Note: (Honda Code 4523106).

$9.49

$

In Stock, Qty 11

0

7

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

Note: (Honda Code 4497947).

$3.49

$

In Stock, only 3 left!

0

8

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

Note: (Honda Code 4497947).

$3.49

$

In Stock, only 3 left!

0

9

Honda 16510-ZE3-000

GOVERNOR ASSY.

Note: (Honda Code 3713187).

$33.99

$

Usually ships in 3-6 days

0

10

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

Note: (Honda Code 2090090).

$7.99

$

Usually ships in 3-6 days

0

11

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT

Note: (Honda Code 3713195).

$19.99

$

Usually ships in 3-6 days

0

12

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

Note: (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

13

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR
(Superseded to 16531-Z0A-000)

Note: (Honda Code 2025989).

$3.99

$

In Stock, only 3 left!

0

13

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

Note: (Honda Code 6605117).

$3.99

$

In Stock, only 3 left!

0

15

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

16

Honda 90701-HC4-000

PIN, DOWEL (8X12)

Note: (Honda Code 2978443).

$3.99

$

In Stock, only 2 left!

0

17

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

Note: (Honda Code 2108595).

$11.99

$

In Stock, Qty 7

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

19

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

Note: (Honda Code 2298404).

$1.99

$

In Stock, Qty 20+

0

20

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

Note: (Honda Code 0708941).

$12.99

$

In Stock, only 3 left!

0

21

Honda 96100-62070-00

BEARING, RADIAL BALL (6207)

Note: (Honda Code 0997320).

$56.99

$

Usually ships in 3-6 days

0
