GX340 K1 QAE2 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) CONTROL BOX (2) Parts Diagram

Engine, Made in Japan

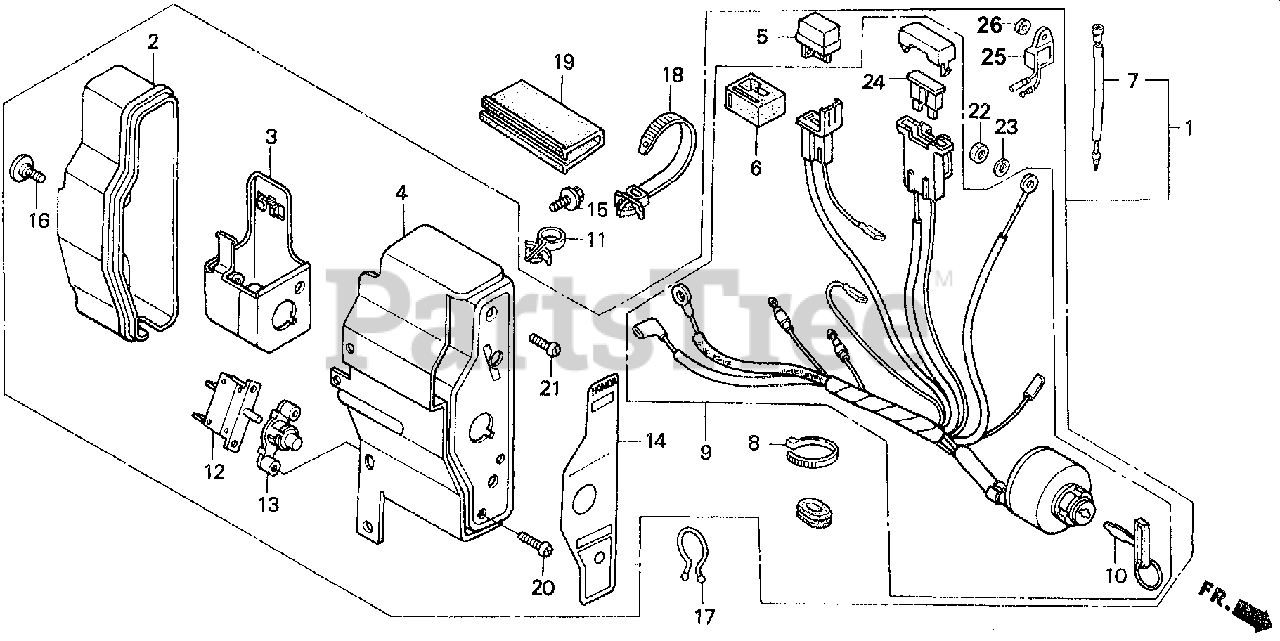

CONTROL BOX (2) Parts Diagram

  • Title

1

Honda 31610-ZE3-W23ZB

SEE PART DETAILS - PRI; BOX ASSY., CONTROL (EXTERNAL-ALERT/3A) *R8* (BRIGHT RED)

Note: (Honda Code 5902804).

$

$

Currently unavailable

2

Honda 31612-ZE2-003

SEE PART DETAILS - PRI; CASE, CONTROL

Note: (Honda Code 2095875).

$22.99

$

Usually ships in 3-6 days

0

3

Honda 31614-ZE2-003

SEE PART DETAILS - PRI; BRACKET, CASE MOUNTING

Note: (Honda Code 2095883).

$18.99

$

Usually ships in 3-6 days

0

4

Honda 31615-ZE3-003ZB

SEE PART DETAILS - PRI; PANEL, CONTROL *R8* (BRIGHT RED)
(Superseded to 31615-ZE3-003ZE)

Note: (Honda Code 4070280).

$30.99

$

Usually ships in 3-6 days

0

5

Honda 31700-124-003

SEE PART DETAILS - PRI; RECTIFIER ASSY., SILICON (STANLEY)
(Superseded to 31700-124-008)

Note: (Honda Code 0351346).

$40.99

$

In Stock, only 1 left!

0

6

Honda 32127-738-700

SUSPENSION, CONNECTOR

Note: (Honda Code 2026631).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 32197-ZE1-003

SUB-HARNESS

Note: (Honda Code 4331096).

$12.99

$

Usually ships in 3-6 days

0

8

Honda 32902-892-003

BAND

Note: (Honda Code 0947457).

$4.99

$

In Stock, only 1 left!

0

9

Honda 35100-ZE2-842

SWITCH ASSY., COMBINATION

Note: (Honda Code 3916335).

$

$

Not available

10

Honda 35111-880-003

KEY
(Superseded to 35111-880-013)

Note: (Honda Code 0485706).

$11.99

$

In Stock, only 3 left!

0

11

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

Note: (Honda Code 1429141).

$2.99

$

In Stock, only 1 left!

0

12

Honda 38240-ZE2-840

PROTECTOR, CIRCUIT (3.5A)

Note: (Honda Code 2652931).

$33.99

$

Usually ships in 3-6 days

0

13

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR

Note: (Honda Code 1888676).

$20.99

$

Usually ships in 3-6 days

0

14

Honda 87529-ZE2-811

PANEL, CONTROL BOX (EXTERNAL)

Note: (Honda Code 4214185).

$

$

Currently unavailable

15

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

16

Honda 90380-MA6-010

SEE PART DETAILS - PRI; SCREW, SPECIAL (6X12)

Note: (Honda Code 1490648).

$4.49

$

Usually ships in 3-6 days

0

17

Honda 90630-751-000

CLIP, PURSE LOCK

Note: (Honda Code 2159598).

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L* (BLACK)

Note: (Honda Code 1170653).

$9.99

$

In Stock, only 1 left!

0

19

Honda 91406-ZE2-003

TUBE, FASTENER (30)

Note: (Honda Code 2159762).

$7.49

$

Usually ships in 3-6 days

0

20

Honda 93500-03012-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X12)

Note: (Honda Code 0665521).

$1.49

$

Usually ships in 3-6 days

0

21

Honda 93500-04012-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X12)

Note: (Honda Code 0285643).

$1.49

$

In Stock, Qty 10

0

22

Honda 94001-04390-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM)

Note: Use from Engine SN 2801238. (Honda Code 0499707).

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94111-04800

WASHER, SPRING (4MM)

Note: (Honda Code 0346114).

$1.49

$

Usually ships in 3-6 days

0

24

Honda 98200-31500

FUSE, BLADE (15A)

Note: (Honda Code 1644244).

$1.99

$

In Stock, Qty 6

0

25

Honda 34150-ZH7-003

ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: Use from Engine SN 2801238. (Honda Code 5858444).

$53.99

$

In Stock, only 1 left!

0

26

Honda 94101-04800

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM)

Note: Use from Engine SN 2801238. (Honda Code 0331462).

$1.49

$

Usually ships in 3-6 days

0
