GX340 K1 QA (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) CARBURETOR (SILENT TYPE) Parts Diagram

Engine, Made in Japan

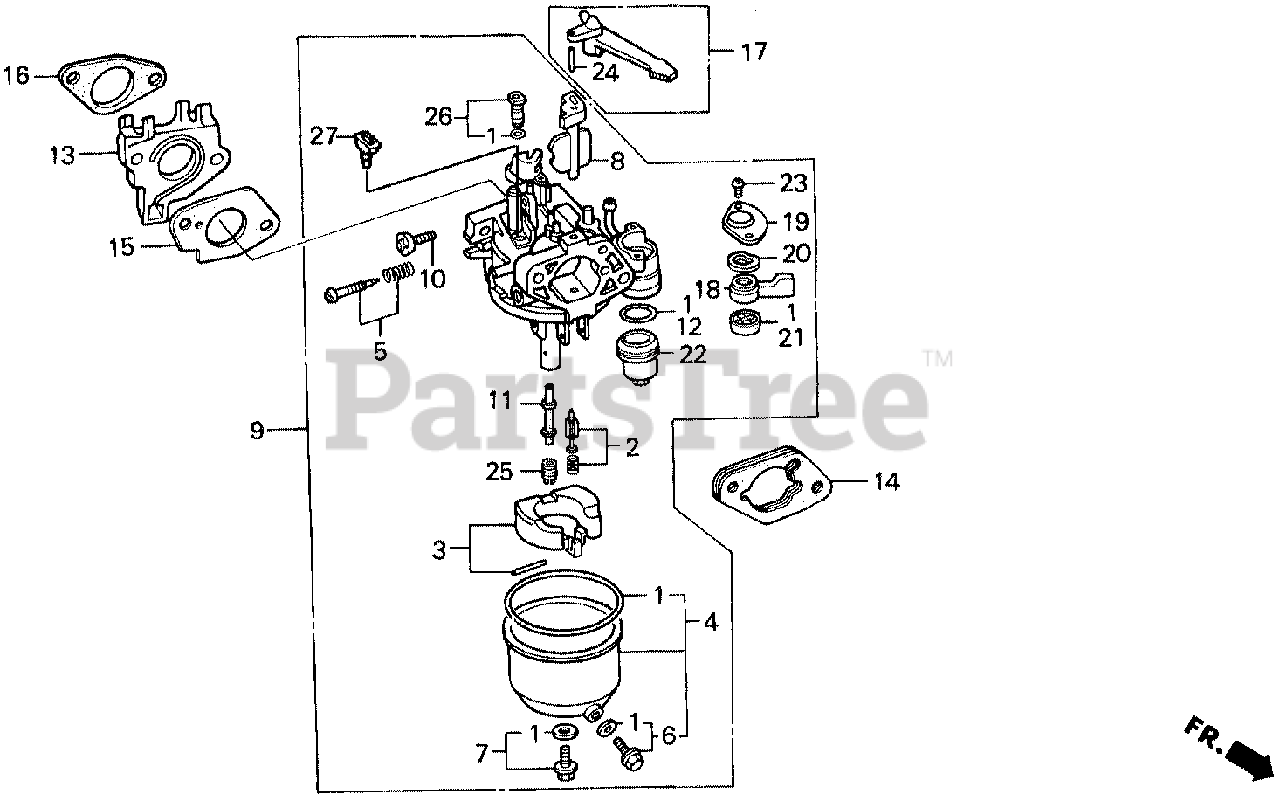

CARBURETOR (SILENT TYPE) Parts Diagram

  • Title

1

Honda 16010-ZE2-812

SEE PART DETAILS - PRI; GASKET SET

Note: (Honda Code 3511383).

$20.99

$

In Stock, Qty 10

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

Note: (Honda Code 2059236).

$47.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZA0-931

FLOAT SET

Note: (Honda Code 2059244).

$53.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE8-005

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT

Note: (Honda Code 2089993).

$48.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

Note: (Honda Code 1441500).

$16.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

Note: (Honda Code 1672187).

$11.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B
(Superseded to 16028-ZK7-S91)

Note: (Honda Code 1441518).

$14.99

$

In Stock, only 1 left!

0

8

Honda 16044-ZE3-W20

CHOKE SET

Note: (Honda Code 3713112).

$39.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZE3-W31

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE34B C)
(Superseded to 16100-ZE3-W32)

Note: Use up to Engine SN 2521202. (Honda Code 5192133).

$128.99

$

In Stock, only 1 left!

0

9

Honda 16100-ZE3-W31

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE34B C)
(Superseded to 16100-ZE3-W32)

Note: Use from Engine SN 2521203. (Honda Code 5192133).

$128.99

$

In Stock, only 1 left!

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

Note: (Honda Code 1441559).

$18.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZE3-W20

NOZZLE, MAIN

Note: (Honda Code 3738341).

$27.99

$

Usually ships in 3-6 days

0

12

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

Note: (Honda Code 0005652).

$7.99

$

In Stock, only 1 left!

0

13

Honda 16211-ZF6-000

INSULATOR, CARBURETOR

Note: (Honda Code 3501277).

$22.99

$

In Stock, only 1 left!

0

14

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR

Note: (Honda Code 2686533).

$12.99

$

In Stock, only 2 left!

0

15

Honda 16221-ZF6-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

Note: (Honda Code 3713161).

$2.99

$

In Stock, Qty 9

0

16

Honda 16223-ZE3-W00

SEE PART DETAILS - PRI; GASKET, INSULATOR

Note: (Honda Code 3713179).

$2.99

$

In Stock, only 3 left!

0

17

Honda 16610-ZE1-000

LEVER, CHOKE (STD)

Note: (Honda Code 1440114).

$11.99

$

In Stock, only 3 left!

0

18

Honda 16953-ZE1-406

SEE PART DETAILS - PRI; LEVER, VALVE

Note: Use up to Engine SN 2519532. (Honda Code 5167358).

$15.99

$

Usually ships in 3-6 days

0

18

Honda 16953-ZE1-811

SEE PART DETAILS - SUP; LEVER, VALVE
(Superseded to 16953-ZE1-406)

Note: Use up to Engine SN 2519532. (Honda Code 1819986).

$15.99

$

Usually ships in 3-6 days

0

18

Honda 16953-ZE1-812

LEVER, VALVE

Note: Use from Engine SN 2519533. (Honda Code 5140876).

$11.99

$

In Stock, Qty 9

0

19

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

Note: (Honda Code 5148135).

$4.49

$

In Stock, only 1 left!

0

20

Honda 16956-ZE1-811

SPRING, VALVE LEVER

Note: (Honda Code 1807809).

$4.49

$

Usually ships in 3-6 days

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE

Note: (Honda Code 3440708).

$4.99

$

In Stock, Qty 20+

0

22

Honda 16967-ZE0-811

CUP, FUEL STRAINER

Note: (Honda Code 1441583).

$24.99

$

In Stock, only 2 left!

0

23

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6)

Note: Use from Engine SN 2519533. (Honda Code 0561654).

$1.49

$

In Stock, only 3 left!

0

23

Honda 93500-03008-0G

SEE PART DETAILS - PRI; SCREW, PAN (3X8)

Note: Use up to Engine SN 2519532. (Honda Code 0420505).

$

$

Not available

24

Honda 94305-20122

PIN, SPRING (2X12)

Note: (Honda Code 1441591).

$2.49

$

In Stock, only 3 left!

0

25

Honda 99101-ZF5-0920

JET, MAIN (#92)

Note: (Optional). (Honda Code 3134657).

$12.99

$

Usually ships in 3-6 days

0

25

Honda 99101-ZF5-0950

JET, MAIN (#95)

Note: (Optional). (Honda Code 3134665).

$12.99

$

In Stock, only 2 left!

0

25

Honda 99101-ZF5-0980

JET, MAIN (#98)

Note: (Honda Code 3344652).

$12.99

$

Usually ships in 3-6 days

0

26

Honda 99204-ZE0-0450

JET SET, PILOT (#45)
