GX340 K1 LXE2 (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) 1/2 REDUCTION Parts Diagram

Engine, Made in Japan

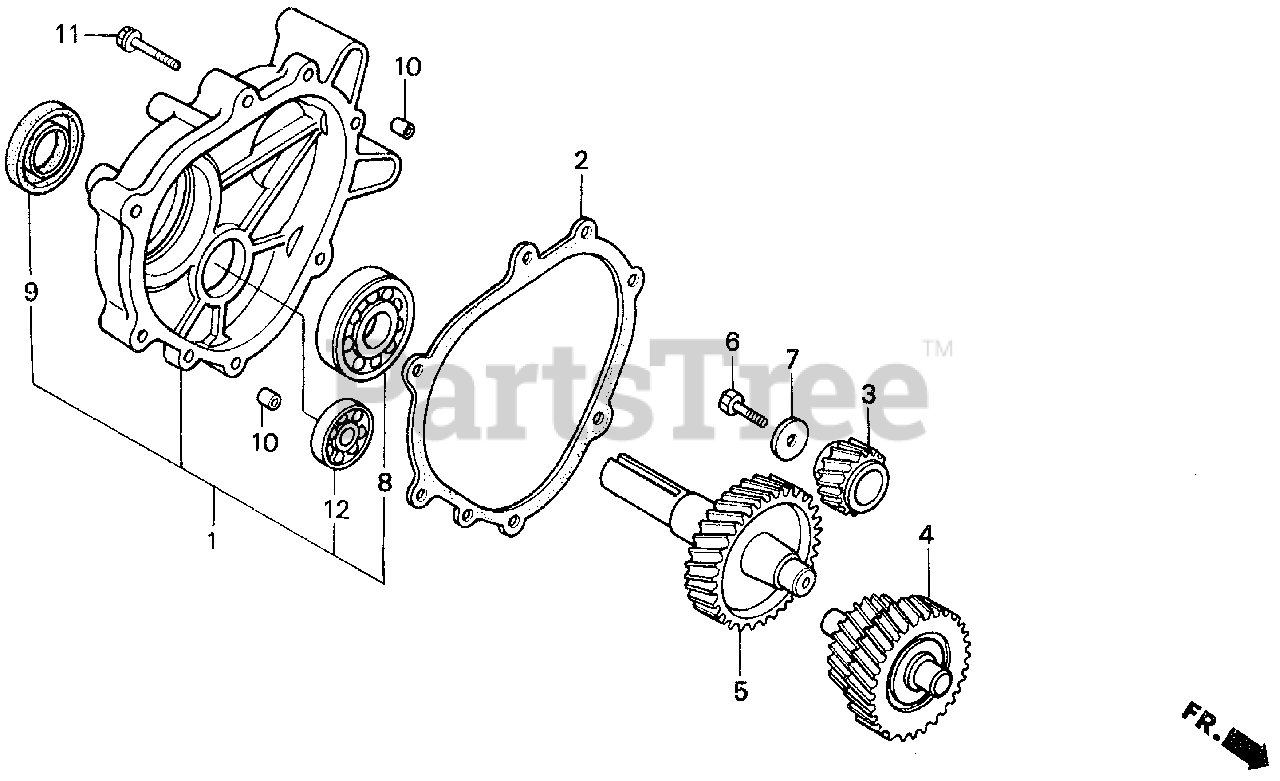

1/2 REDUCTION Parts Diagram

  • Title

1

Honda 11500-ZE3-611

COVER ASSY., GEAR CASE

Note: (Honda Code 3077906).

$180.99

$

Usually ships in 3-6 days

0

2

Honda 11521-ZE2-800

SEE PART DETAILS - PRI; GASKET, CHAIN CASE COVER

Note: (Honda Code 3678513).

$12.99

$

In Stock, only 1 left!

0

3

Honda 22103-ZE3-610

GEAR, PRIMARY DRIVE
(Superseded to 23411-Z1C-000)

Note: (Honda Code 3077922).

$78.99

$

Usually ships in 3-6 days

0

4

Honda 23220-ZE3-610

COUNTERSHAFT

Note: (Honda Code 3077930).

$238.99

$

Usually ships in 3-6 days

0

5

Honda 23710-ZE3-610

SHAFT, P.T.O. (L-TYPE)

Note: (Honda Code 3077948).

$319.99

$

Usually ships in 3-6 days

0

6

Honda 90107-959-003

SEE PART DETAILS - PRI; BOLT, HEX. (8X25)

Note: (Honda Code 1063973).

$4.49

$

Usually ships in 3-6 days

0

7

Honda 90473-ZE3-010

WASHER (8MM)

Note: (Honda Code 3078003).

$7.99

$

Usually ships in 3-6 days

0

8

Honda 91009-KJ1-003

BEARING, RADIAL BALL (6202)

Note: (Honda Code 3078011).

$20.99

$

Usually ships in 3-6 days

0

9

Honda 91201-890-003

OIL SEAL (30X46X8)

Note: (Honda Code 0756494).

$11.99

$

In Stock, Qty 5

0

10

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14)

Note: (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

11

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

Note: (Honda Code 2298404).

$1.99

$

In Stock, Qty 20+

0

12

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

Note: (Honda Code 0636118).

$32.99

$

In Stock, only 1 left!

0
