GX340 K1 EDT (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) FUEL TANK (2) Parts Diagram

Engine, Made in Japan

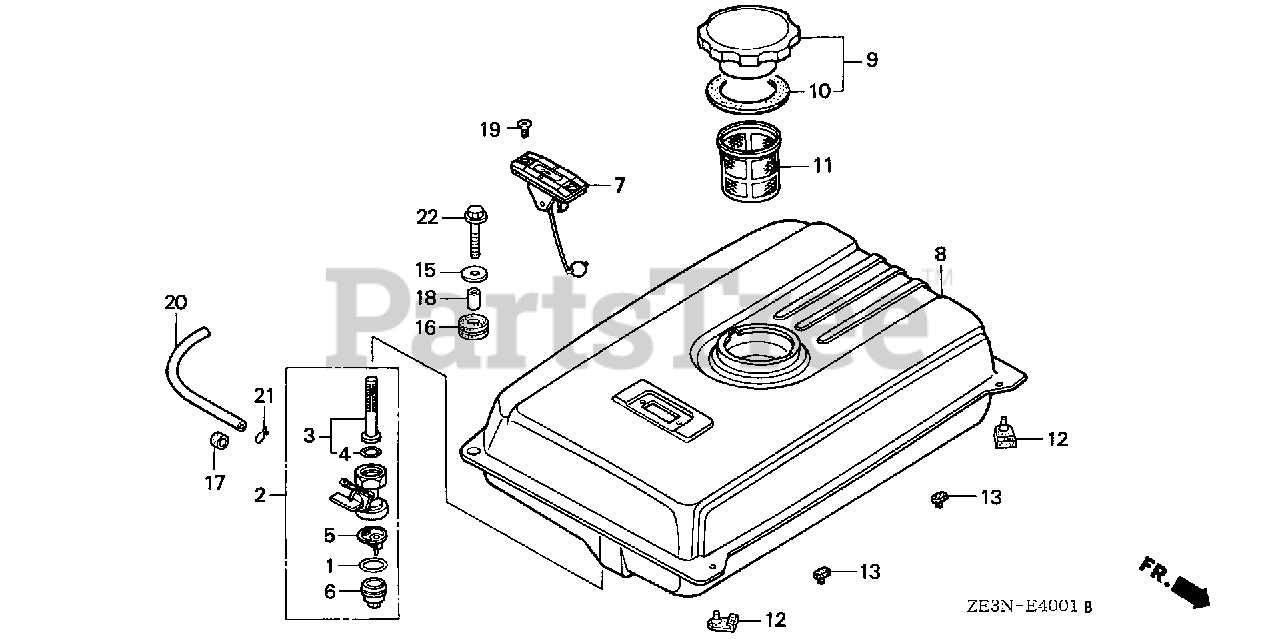

FUEL TANK (2) Parts Diagram

  • Title

1

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

Note: (Honda Code 0005652).

$7.49

$

In Stock, Qty 7

0

2

Honda 16950-ZB4-015

SEE PART DETAILS - PRI; PETCOCK ASSY.

Note: (Honda Code 3456159).

$99.99

$

In Stock, only 4 left!

0

3

Honda 16952-ZB4-005

SCREEN, FUEL STRAINER
(Superseded to 16952-KJ9-752)

Note: (Honda Code 2520484).

$45.99

$

Usually ships in 3-6 days

0

4

Honda 16958-397-771

O-RING (9X1.3)

Note: (Honda Code 1198795).

$7.49

$

In Stock, Qty 5

0

5

Honda 16959-471-831

FILTER, CUP

Note: (Honda Code 1073212).

$12.99

$

In Stock, Qty 8

0

6

Honda 16967-GA6-671

CUP, FUEL STRAINER

Note: (Honda Code 1198803).

$30.99

$

Usually ships in 3-6 days

0

7

Honda 17505-ZB2-003

METER ASSY., FUEL
(Superseded to 17505-ZB2-013)

Note: (Honda Code 1496660).

$25.99

$

Usually ships in 3-6 days

0

8

Honda 17510-ZB4-000ZE

TANK, FUEL *T68* (TSURUI BLUE)

Note: (Honda Code 4786026).

$343.99

$

Usually ships in 3-6 days

0

9

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL TANK
(Superseded to 17620-899-023)

Note: (Honda Code 2892115).

$40.99

$

In Stock, only 1 left!

0

10

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

Note: (Honda Code 3638541).

$7.99

$

In Stock, only 2 left!

0

11

Honda 17670-899-000

FILTER, FUEL

Note: (Honda Code 2324101).

$20.99

$

Usually ships in 3-6 days

0

12

Honda 50319-ZB2-000

RUBBER, TANK MOUNTING

Note: (Honda Code 1497346).

$4.99

$

Usually ships in 3-6 days

0

13

Honda 76122-952-000

STOPPER, DISCHARGE GUARD

Note: (Honda Code 0744789).

$4.99

$

In Stock, only 2 left!

0

15

Honda 90503-898-000

WASHER, TANK RUBBER

Note: (Honda Code 1106798).

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90851-898-000

CUSHION, TANK RUBBER

Note: (Honda Code 1106806).

$5.99

$

In Stock, only 1 left!

0

17

Honda 90854-ZB2-000

RUBBER, FUEL TUBE

Note: (Honda Code 1497635).

$4.49

$

Usually ships in 3-6 days

0

18

Honda 91551-898-000

COLLAR, TANK RUBBER

Note: (Honda Code 1106848).

$5.99

$

Usually ships in 3-6 days

0

19

Honda 93600-05010-0A

SEE PART DETAILS - PRI; SCREW, FLAT (5X10)

Note: (Honda Code 0181529).

$1.49

$

In Stock, only 3 left!

0

20

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X150)

Note: (Honda Code 5137104).

$54.99

$

In Stock, only 4 left!

0

21

Honda 95002-02080

CLIP, TUBE (B8)

Note: (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-06022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22)

Note: (Honda Code 2105823).

$2.49

$

In Stock, only 1 left!

0
