GX340 K1 EDT (GC05) - Honda Engine, Made in Japan (SN: GC05-2000001 - GC05-3599999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

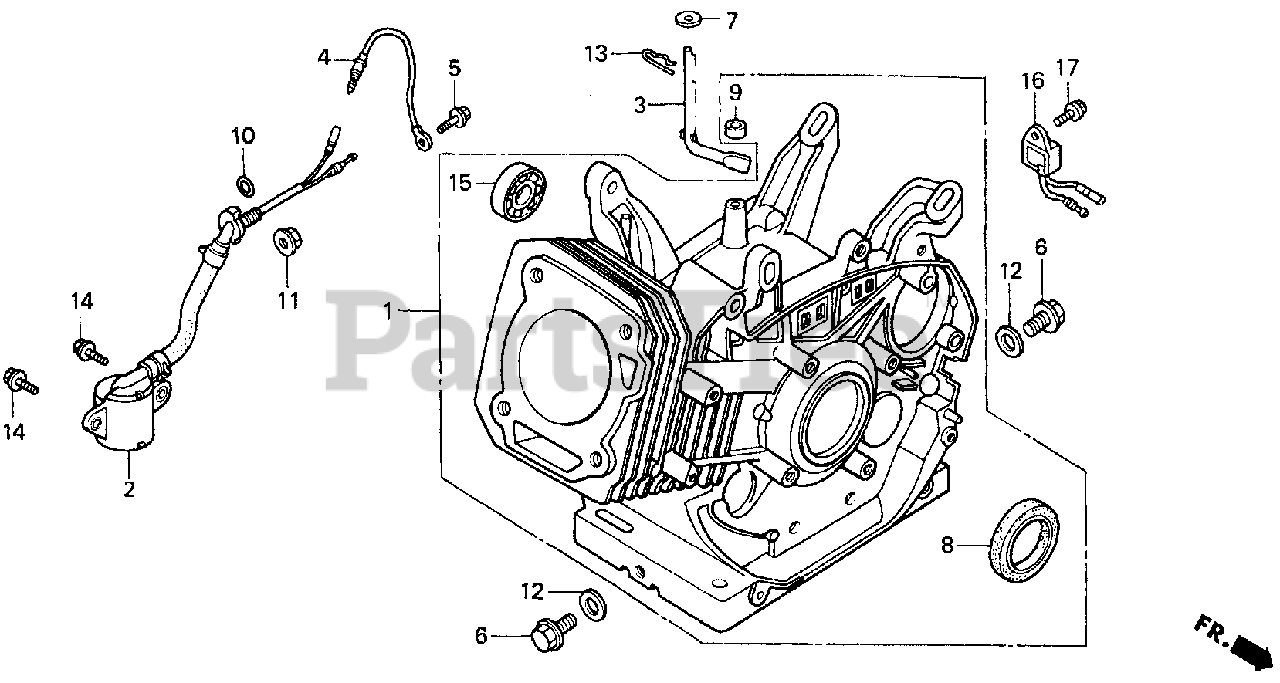

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-ZE3-827

SEE PART DETAILS - PRI; CYLINDER ASSY. (SELFSTARTER+ALERT)

Note: (Honda Code 6475693).

$

$

Currently unavailable

2

Honda 15510-ZE2-043

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

Note: (Honda Code 5792361).

$67.99

$

In Stock, only 1 left!

0

3

Honda 16541-ZE3-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

Note: (Honda Code 4717393).

$17.99

$

Usually ships in 3-6 days

0

6

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

Note: (Honda Code 1986231).

$5.49

$

In Stock, Qty 7

0

7

Honda 90446-KE1-000

WASHER (8.2X17X0.8)

Note: (Honda Code 2027134).

$2.49

$

Usually ships in 3-6 days

0

8

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

Note: (Honda Code 2108595).

$11.99

$

In Stock, Qty 5

0

9

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

Note: (Honda Code 2461713).

$5.99

$

In Stock, Qty 11

0

9

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

Note: (Honda Code 0744326).

$5.99

$

In Stock, Qty 11

0

10

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

Note: (Honda Code 0949883).

$3.99

$

In Stock, Qty 20+

0

11

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

Note: (Honda Code 0483867).

$1.99

$

In Stock, only 4 left!

0

12

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM)

Note: (Honda Code 0171868).

$1.99

$

In Stock, Qty 20+

0

13

Honda 94251-10000

PIN, LOCK (10MM)

Note: (Honda Code 0159269).

$1.99

$

In Stock, Qty 5

0

14

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0

15

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

Note: (Honda Code 0708941).

$13.99

$

In Stock, only 3 left!

0

16

Honda 34150-ZH7-003

ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

Note: (Honda Code 5858444).

$56.99

$

In Stock, only 1 left!

0

17

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$2.49

$

In Stock, Qty 19

0
