GX31 SA (GCAG) - Honda Engine, Made in Japan (SN: GCAG-1000001 - GCAG-2099999) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

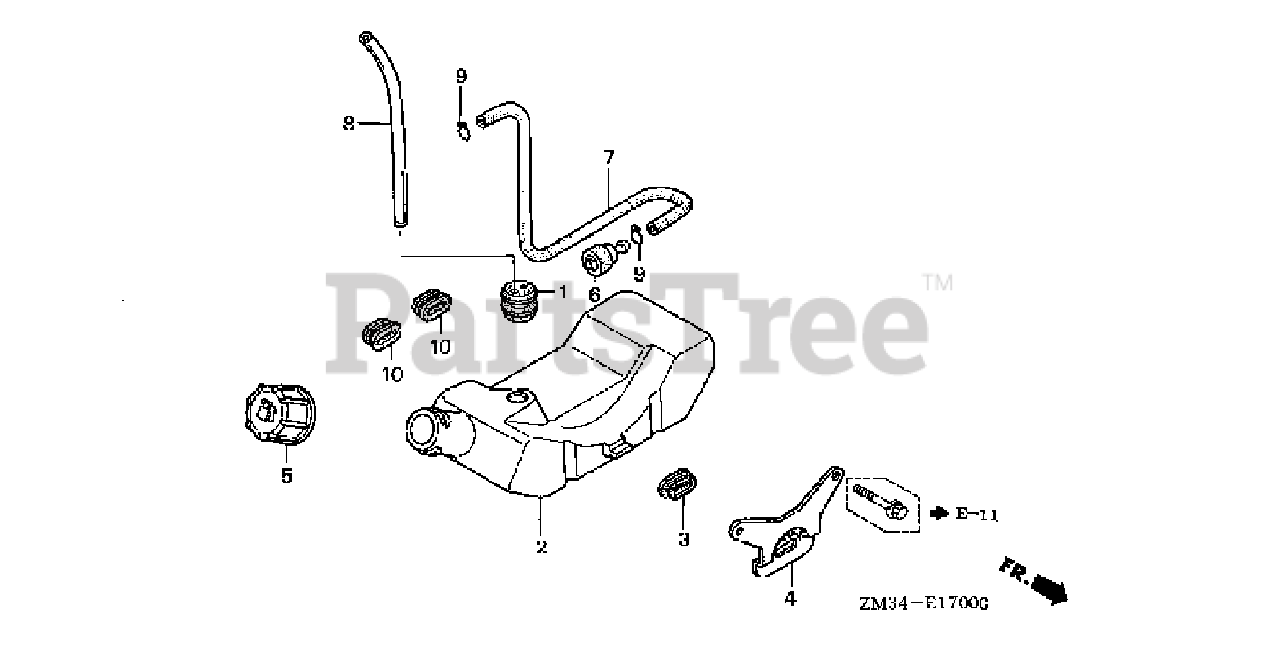

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

Note: (Honda Code 5421227).

$4.49

$

In Stock, Qty 12

0

2

Honda 17511-ZM5-003

TANK, FUEL
(Superseded to 17511-ZM5-023)

Note: (Honda Code 5421243).

$31.99

$

In Stock, only 1 left!

0

3

Honda 17532-ZM3-000

RUBBER, TANK MOUNTING

Note: Use up to Engine SN 1040026. (Honda Code 5383609).

$

$

Currently unavailable

3

Honda 17532-ZM3-010

RUBBER A, TANK MOUNTING

Note: Use from Engine SN 1040027. (Honda Code 5686944).

$2.49

$

In Stock, Qty 6

0

4

Honda 04101-ZM3-000

STAY, FUEL TANK

Note: Use up to Engine SN 1040026. (Honda Code 5793641).

$

$

Not available

4

Honda 17561-ZM3-000

STAY, FUEL TANK
(Superseded to 04101-ZM3-000)

Note: Use up to Engine SN 1040026. (Honda Code 5383617).

$

$

Not available

4

Honda 17561-ZM3-010

STAY, FUEL TANK

Note: Use from Engine SN 1040027. (Honda Code 5686969).

$

$

Not available

5

Honda 17620-ZM3-043

CAP ASSY., FUEL TANK
(Superseded to 17620-ZM3-063)

Note: (Honda Code 6446488).

$13.99

$

Usually ships in 3-6 days

0

6

Honda 17672-ZM3-003

FILTER, FUEL
(Superseded to 17672-Z0H-003)

Note: (Honda Code 5383633).

$6.99

$

Usually ships in 3-6 days

0

7

Honda 17701-ZM3-003

TUBE, FUEL

Note: (Honda Code 5421268).

$7.99

$

In Stock, Qty 5

0

8

Honda 17702-ZM3-003

TUBE, FUEL RETURN

Note: (Honda Code 5581442).

$2.99

$

In Stock, Qty 6

0

9

Honda 91401-ZM3-003

CLIP, TUBE

Note: (Honda Code 5581459).

$1.99

$

Usually ships in 3-6 days

0

10

Honda 17532-ZM3-000

RUBBER, TANK MOUNTING

Note: Use up to Engine SN 1040026. (Honda Code 5383609).

$

$

Currently unavailable

10

Honda 17533-ZM3-000

RUBBER B, TANK MOUNTING
(Superseded to 17532-ZM3-010)

Note: Use from Engine SN 1040027. (Honda Code 5686951).

$2.49

$

In Stock, Qty 6

0
