GX270 VMS2 (GCAB) - Honda Engine, Made in Japan (SN: GCAB-2000001 - GCAB-9999999) CARBURETOR (2) Parts Diagram

Engine, Made in Japan

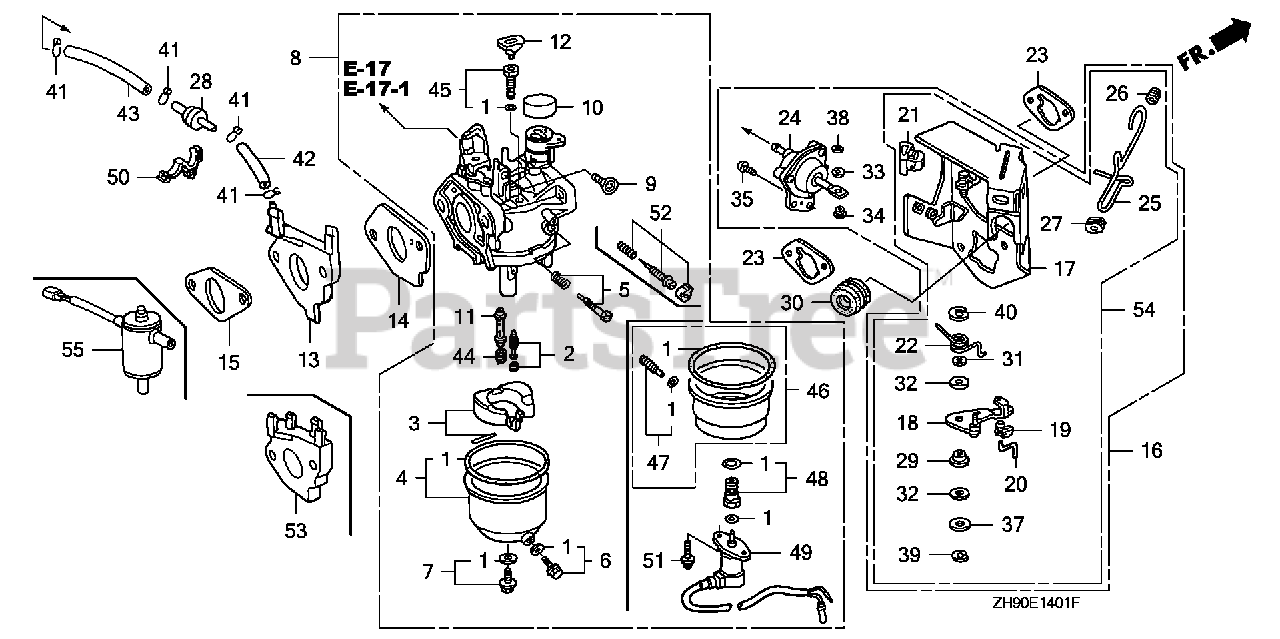

CARBURETOR (2) Parts Diagram

  • Title

1

Honda 16010-ZE3-701

GASKET SET (Honda Code 2386233).

$19.99

$

In Stock, Qty 9

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$45.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$51.99

$

In Stock, only 1 left!

0

8

Honda 16100-ZK9-R41

CARBURETOR ASSY. (BE77Q A) (N/A: USE ALTERNATE P/N 16100-ZH9-D41)

$

$

Currently unavailable

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$6.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZH9-820

NOZZLE, MAIN (CARBURETOR NO.)

$30.99

$

Usually ships in 3-6 days

0

12

Honda 16172-ZE3-W10

COLLAR, SET (Honda Code 3738358).

$10.99

$

Usually ships in 3-6 days

0

14

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3678620).

$2.49

$

In Stock, Qty 20+

0

15

Honda 16223-ZA0-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 3678638).

$2.99

$

In Stock, Qty 19

0

17

Honda 16261-ZE2-702

SEE PART DETAILS - PRI; STAY, SOLENOID

$35.99

$

Usually ships in 3-6 days

0

18

Honda 16262-ZE2-711

LEVER, CHOKE

$9.49

$

Usually ships in 3-6 days

0

19

Honda 16263-ZA0-000

JOINT, ROD (Honda Code 1307677).

$5.49

$

Usually ships in 3-6 days

0

20

Honda 16264-ZE2-701

ROD, CHOKE

$2.49

$

In Stock, only 1 left!

0

21

Honda 16265-ZE2-721

STOPPER, CHOKE ROD

$3.49

$

Usually ships in 3-6 days

0

22

Honda 16268-ZE2-721

SPRING, MANUAL CHOKE

$4.49

$

Usually ships in 3-6 days

0

23

Honda 16269-ZA0-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 3755212).

$2.49

$

In Stock, Qty 20+

0

25

Honda 16611-ZE2-711

ROD, CHOKE CONTROL

$8.99

$

Usually ships in 3-6 days

0

26

Honda 16613-893-000

SEE PART DETAILS - PRI; GROMMET, CHOKE ROD

$3.99

$

In Stock, Qty 20+

0

27

Honda 16615-893-000

GUIDE, CHOKE ROD

$4.99

$

In Stock, only 1 left!

0

29

Honda 53149-964-003

BUSH, ARM PIVOT

$8.99

$

Usually ships in 3-6 days

0

30

Honda 88911-MJ3-000

GROMMET, FENDER (Honda Code 2288900).

$2.49

$

In Stock, Qty 5

0

31

Honda 90431-ZE2-700

WASHER, CHOKE LEVER

$4.49

$

Usually ships in 3-6 days

0

32

Honda 90432-ZE2-700

SEAL, CHOKE LEVER

$4.49

$

Usually ships in 3-6 days

0

37

Honda 94103-05000

WASHER, PLAIN (5MM) (Honda Code 1555630).

$0.99

$

In Stock, only 3 left!

0

39

Honda 94540-04010

E-RING (4MM)

$2.99

$

Usually ships in 3-6 days

0

40

Honda 94540-07010

E-RING (7MM)

$3.49

$

Usually ships in 3-6 days

0

44

Honda 99101-ZH8-0850

SEE PART DETAILS - PRI; JET, MAIN (#85) Use up to Engine SN BE81B B.

Note: (Optional)

$8.49

$

Usually ships in 3-6 days

0

44

Honda 99101-ZH8-0880

SEE PART DETAILS - PRI; JET, MAIN (#88) Use up to Engine SN BE81B B.

Note: (Optional)

$8.49

$

In Stock, only 1 left!

0

44

Honda 99101-ZH8-0900

SEE PART DETAILS - PRI; JET, MAIN (#90) Use from Engine SN BE81B C.

$8.49

$

In Stock, only 2 left!

0

45

Honda 99204-ZE2-0400

SEE PART DETAILS - PRI; JET SET, PILOT (#40) (ADVENTURE GREEN) (CARBURETOR NO.)

$23.99

$

In Stock, only 2 left!

0

46

Honda 16015-ZA0-931

CHAMBER SET, FLOAT (Honda Code 2386241).

$83.99

$

Usually ships in 3-6 days

0

47

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.)

$15.99

$

Usually ships in 3-6 days

0

48

Honda 16028-ZA0-931

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 2097376).

$29.99

$

In Stock, only 2 left!

0

49

Honda 16230-ZE3-701

SEE PART DETAILS - SUP; VALVE ASSY., SOLENOID
(Superseded to 16230-ZE3-702)

$75.99

$

In Stock, only 1 left!

0

49

Honda 16230-ZE3-702

SEE PART DETAILS - PRI; VALVE ASSY., SOLENOID

$75.99

$

In Stock, only 1 left!

0

51

Honda 93892-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12) (Honda Code 0368621).

$1.49

$

In Stock, Qty 5

0

52

Honda 16016-ZH8-W01

SCREW SET (Honda Code 4212387).

$12.99

$

In Stock, only 1 left!

0

53

Honda 16211-ZE2-010

SEE PART DETAILS - PRI; INSULATOR, CARBURETOR

$10.99

$

In Stock, Qty 11

0

54

Honda 16260-ZF6-U70

STAY ASSY., MANUAL CHOKE

$

$

Not available
