GX270 VM2 (GCAB) - Honda Engine, Made in Japan (SN: GCAB-1000001 - GCAB-1999999) CRANKCASE COVER (2) Parts Diagram

Engine, Made in Japan

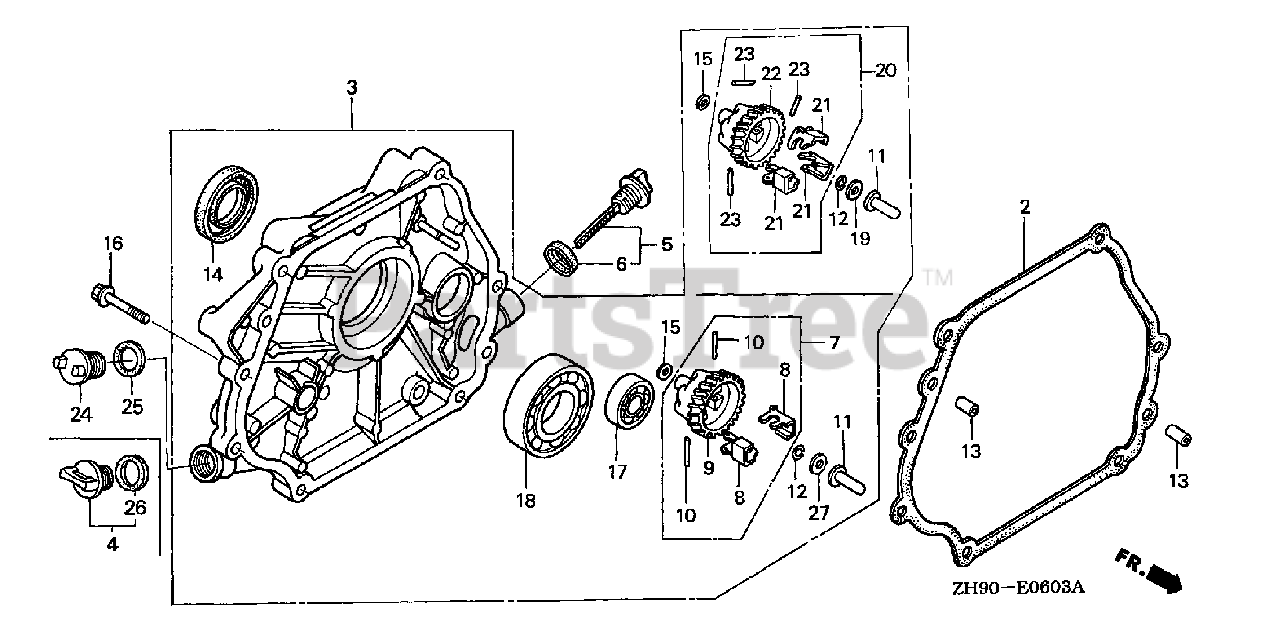

CRANKCASE COVER (2) Parts Diagram

  • Title

2

Honda 11381-ZE2-801

GASKET, CASE COVER

Note: (Honda Code 6436851).

$11.99

$

In Stock, only 4 left!

0

3

Honda 11400-ZE2-601

COVER ASSY., CRANKCASE (Q-TYPE)(BALANCER)
(Superseded to 11400-Z1D-600)

Note: Use up to Engine SN 1368686. (Honda Code 3689494).

$114.99

$

Usually ships in 3-6 days

0

3

Honda 11400-ZE2-670

COVER ASSY., CRANKCASE
(Superseded to 11400-ZE2-671)

Note: Use from Engine SN 1368687. (Honda Code 5772744).

$244.99

$

Usually ships in 3-6 days

0

4

Honda 15600-ZG4-003

CAP ASSY., OIL FILLER

Note: (Honda Code 4497921).

$6.99

$

In Stock, only 1 left!

0

5

Honda 15600-735-003

CAP ASSY., OIL FILLER

Note: (Honda Code 4523106).

$9.49

$

In Stock, Qty 11

0

6

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

Note: (Honda Code 4497947).

$3.49

$

In Stock, only 3 left!

0

7

Honda 16510-ZE2-811

GOVERNOR ASSY. (BALANCER)

Note: Use up to Engine SN 1368686. (Honda Code 3690005).

$27.99

$

Usually ships in 3-6 days

0

8

Honda 16511-ZE2-000

WEIGHT, GOVERNOR

Note: Use up to Engine SN 1368686. (Honda Code 2025955).

$4.49

$

Usually ships in 3-6 days

0

9

Honda 16512-ZE2-811

HOLDER, GOVERNOR WEIGHT

Note: Use up to Engine SN 1368686. (Honda Code 3682010).

$19.99

$

Usually ships in 3-6 days

0

10

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

Note: Use up to Engine SN 1368686. (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16531-ZE2-000

SLIDER, GOVERNOR
(Superseded to 16531-Z0A-000)

Note: (Honda Code 2025989).

$3.99

$

In Stock, only 3 left!

0

11

Honda 16531-Z0A-000

SLIDER, GOVERNOR

Note: (Honda Code 6605117).

$3.99

$

In Stock, only 3 left!

0

12

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

In Stock, only 3 left!

0

13

Honda 90701-HC4-000

PIN, DOWEL (8X12)

Note: (Honda Code 2978443).

$3.99

$

In Stock, only 2 left!

0

14

Honda 91201-890-003

OIL SEAL (30X46X8)

Note: (Honda Code 0756494).

$11.99

$

In Stock, Qty 5

0

15

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

16

Honda 95701-08035-00

BOLT, FLANGE (8X35)

Note: (Honda Code 2724029).

$2.99

$

In Stock, only 3 left!

0

17

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

Note: (Honda Code 0708941).

$12.99

$

In Stock, only 3 left!

0

18

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

Note: (Honda Code 0636118).

$32.99

$

In Stock, only 1 left!

0

19

Honda 90473-147-000

WASHER (6X16)

Note: Use from Engine SN 1368687. (Honda Code 0465591).

$1.99

$

In Stock, only 1 left!

0

20

Honda 16510-ZE3-000

GOVERNOR ASSY.

Note: Use from Engine SN 1368687. (Honda Code 3713187).

$33.99

$

Usually ships in 3-6 days

0

21

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

Note: Use from Engine SN 1368687. (Honda Code 2090090).

$7.99

$

Usually ships in 3-6 days

0

22

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT

Note: Use from Engine SN 1368687. (Honda Code 3713195).

$19.99

$

Usually ships in 3-6 days

0

23

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

Note: Use from Engine SN 1368687. (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

26

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

Note: (Honda Code 4497947).

$3.49

$

In Stock, only 3 left!

0
