GX270 VKB2/A (GCAB) - Honda Engine, Made in Japan (SN: GCAB-2000001 - GCAB-9999999) CYLINDER Parts Diagram

Engine, Made in Japan

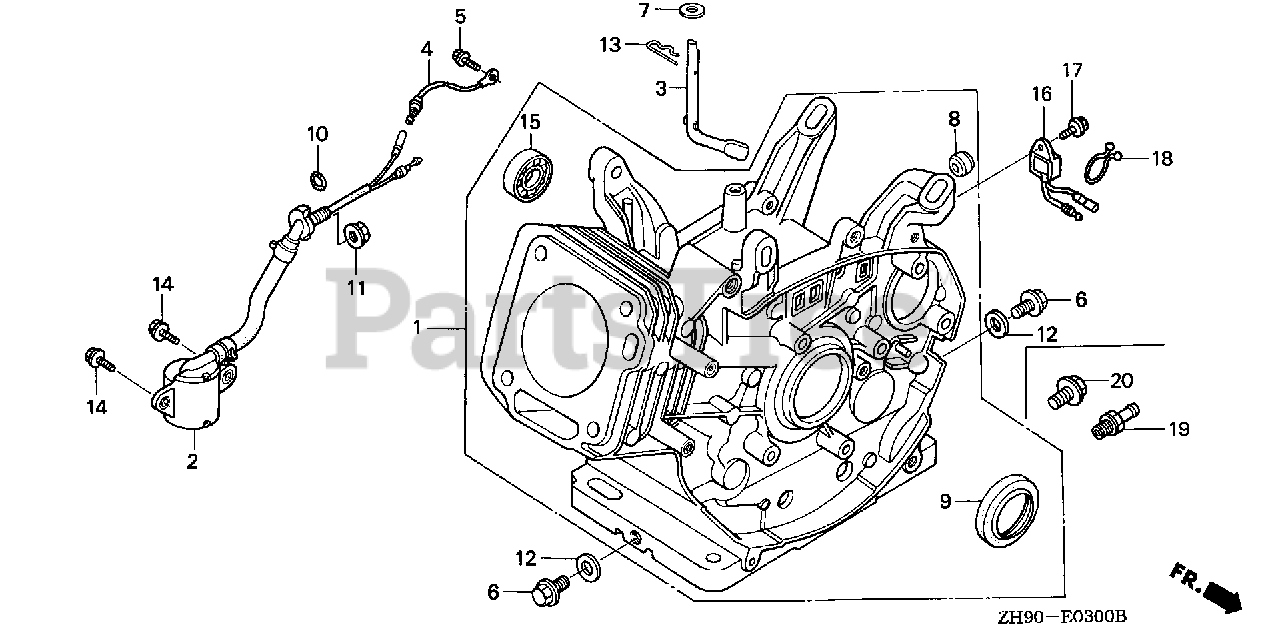

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZH9-Q10

SEE PART DETAILS - SUP; CYLINDER ASSY. (BALANCER+SELFSTARTER+ALERT)
(Superseded to 12000-Z1D-Q10)

$194.99

$

Usually ships in 3-6 days

0

1

Honda 12000-Z1D-Q10

SEE PART DETAILS - PRI; CYLINDER ASSY.

$194.99

$

Usually ships in 3-6 days

0

2

Honda 15510-ZE2-043

SEE PART DETAILS - PRI; SWITCH ASSY., OIL LEVEL (Honda Code 5792361).
(Superseded to 15510-ZE2-053)

$60.99

$

In Stock, only 1 left!

0

3

Honda 16541-ZE2-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$12.99

$

Usually ships in 3-6 days

0

6

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, only 2 left!

0

7

Honda 90446-KE1-000

WASHER (8.2X17X0.8) (Honda Code 2027134).

$2.49

$

In Stock, only 1 left!

0

9

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$11.99

$

Usually ships in 3-6 days

0

10

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 13

0

10

Honda 91353-671-004

SEE PART DETAILS - SUP; O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 13

0

11

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

In Stock, Qty 6

0

12

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 12

0

13

Honda 94251-10000

PIN, LOCK (10MM) (Honda Code 0159269).

$1.99

$

In Stock, Qty 5

0

14

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 13

0

15

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

In Stock, only 1 left!

0
