GX270 VA (GCAB) - Honda Engine, Made in Japan (SN: GCAB-1000001 - GCAB-1999999) FAN COVER Parts Diagram

Engine, Made in Japan

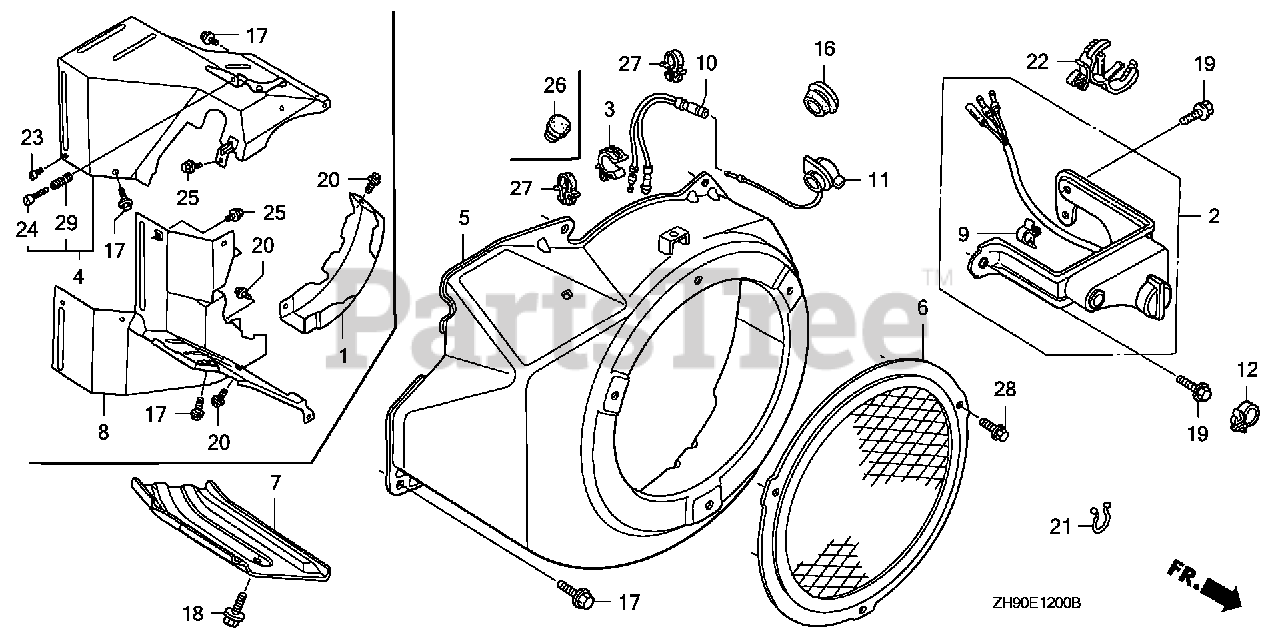

FAN COVER Parts Diagram

  • Title

2

Honda 15520-ZE2-003

ALERT UNIT, OIL SWITCH ENGINE STOP

Note: Use up to Engine SN 1033679.

$

$

Not available

3

Honda 16731-ZE2-003

CLIP, TUBE

$2.99

$

In Stock, only 2 left!

0

5

Honda 19610-ZE2-010ZG

COVER, FAN *NH105* (MAT BLACK)

$115.99

$

Usually ships in 3-6 days

0

5

Honda 19610-ZE2-010ZL

SEE PART DETAILS - PRI; COVER, FAN *R280* (POWER RED)

$89.99

$

In Stock, only 1 left!

0

7

Honda 19631-ZE2-D00

SHROUD

$14.99

$

Usually ships in 3-6 days

0

9

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

Note: Use up to Engine SN 1033679.

$3.99

$

In Stock, only 1 left!

0

10

Honda 32197-ZH8-003

SUB-HARNESS

Note: Use from Engine SN 1033680 to 1225386.

$11.99

$

In Stock, only 2 left!

0

11

Honda 36100-ZE1-015

SWITCH ASSY., ENGINE STOP

Note: Use from Engine SN 1033680 to 1225386.

$21.99

$

In Stock, only 1 left!

0

11

Honda 36100-ZH7-003

SWITCH ASSY., ENGINE STOP
(Superseded to 36100-ZF6-P82)

Note: Use from Engine SN 1225387.

$19.99

$

Usually ships in 3-6 days

0

16

Honda 81329-567-020

GROMMET, DRAIN HOLE

Note: Use up to Engine SN 1033679.

$5.49

$

Usually ships in 3-6 days

0

17

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

18

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

19

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use up to Engine SN 1033679.

$1.99

$

In Stock, Qty 20+

0

22

Honda 90684-ZA0-601

CLIP, HARNESS

$4.99

$

Usually ships in 3-6 days

0
