GX270 VA (GCAB) - Honda Engine, Made in Japan (SN: GCAB-1000001 - GCAB-1999999) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

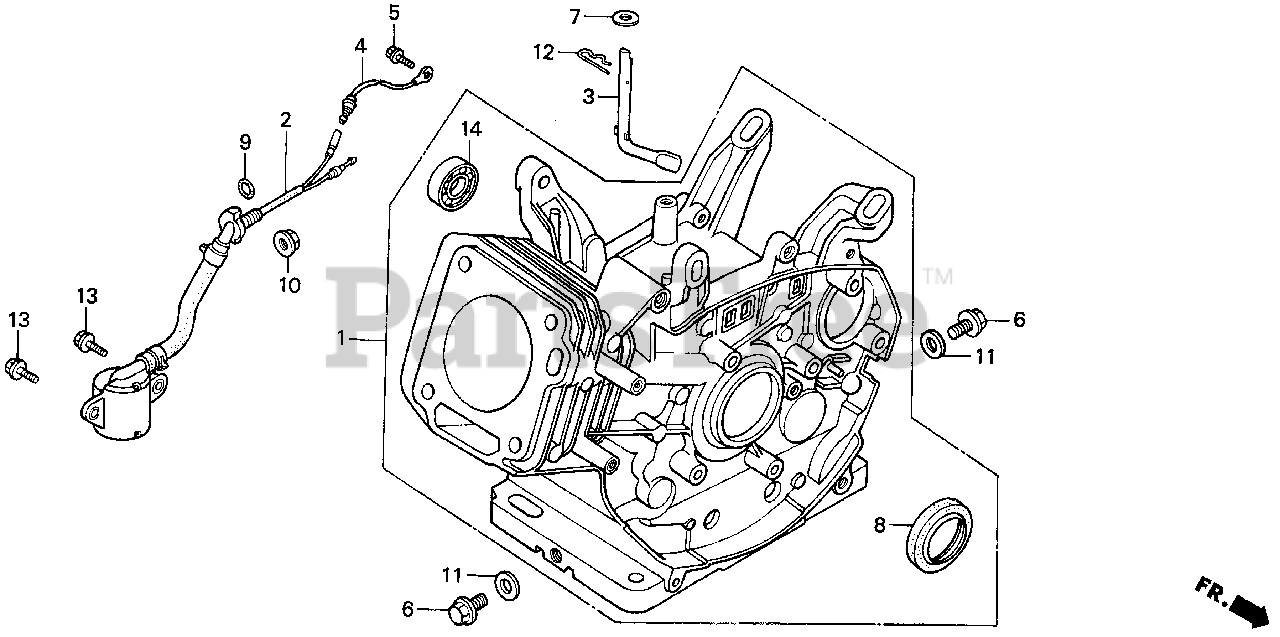

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-ZH9-851

CYLINDER ASSY. (BALANCER+ALERT)

Note: (Honda Code 4640496).

$

$

Currently unavailable

2

Honda 15510-ZE2-023

SWITCH ASSY., OIL LEVEL

Note: Use up to Engine SN 1033679. (Honda Code 4193736).

$60.99

$

Usually ships in 3-6 days

0

2

Honda 15510-ZE2-023

SWITCH ASSY., OIL LEVEL

Note: Use from Engine SN 1033680 to 1225386. (Honda Code 4193736).

$60.99

$

Usually ships in 3-6 days

0

2

Honda 15510-ZE2-033

SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

Note: Use up to Engine SN 1033679. (Honda Code 5361605).

$60.99

$

In Stock, only 1 left!

0

2

Honda 15510-ZE2-033

SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

Note: Use from Engine SN 1033680 to 1225386. (Honda Code 5361605).

$60.99

$

In Stock, only 1 left!

0

2

Honda 15510-ZE2-033

SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

Note: Use from Engine SN 1225387. (Honda Code 5361605).

$60.99

$

In Stock, only 1 left!

0

2

Honda 15510-ZE2-043

SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

Note: Use up to Engine SN 1033679. (Honda Code 5792361).

$60.99

$

In Stock, only 1 left!

0

2

Honda 15510-ZE2-043

SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

Note: Use from Engine SN 1033680 to 1225386. (Honda Code 5792361).

$60.99

$

In Stock, only 1 left!

0

2

Honda 15510-ZE2-043

SWITCH ASSY., OIL LEVEL
(Superseded to 15510-ZE2-053)

Note: Use from Engine SN 1225387. (Honda Code 5792361).

$60.99

$

In Stock, only 1 left!

0

3

Honda 16541-ZE2-000

SHAFT, GOVERNOR ARM

Note: Use up to Engine SN 1116513. (Honda Code 2025997).

$

$

Currently unavailable

3

Honda 16541-ZE2-010

SHAFT, GOVERNOR ARM

Note: (Honda Code 4723227).

$12.99

$

Usually ships in 3-6 days

0

4

Honda 32197-ZE2-003

SUB-HARNESS

Note: Use from Engine SN 1033680 to 1225386. (Honda Code 4220406).

$

$

Not available

5

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 1033680 to 1225386. (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

6

Honda 90131-896-650

BOLT, DRAIN PLUG

Note: (Honda Code 1986231).

$4.99

$

In Stock, only 2 left!

0

7

Honda 90446-KE1-000

WASHER (8.2X17X0.8)

Note: (Honda Code 2027134).

$2.49

$

In Stock, only 1 left!

0

8

Honda 91201-890-003

OIL SEAL (30X46X8)

Note: (Honda Code 0756494).

$11.99

$

Usually ships in 3-6 days

0

9

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

Note: (Honda Code 0949883).

$3.99

$

In Stock, Qty 15

0

10

Honda 94050-10000

NUT, FLANGE (10MM)

Note: (Honda Code 0483867).

$1.99

$

In Stock, Qty 6

0

11

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

Note: (Honda Code 0171868).

$1.49

$

In Stock, only 4 left!

0

12

Honda 94251-08000

PIN, LOCK (8MM)

Note: Use up to Engine SN 1116513. (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

12

Honda 94251-10000

PIN, LOCK (10MM)

Note: Use from Engine SN 1116514. (Honda Code 0159269).

$1.99

$

In Stock, Qty 5

0

13

Honda 95700-06012-00

BOLT, FLANGE (6X12)

Note: (Honda Code 0487025).

$

$

Not available

13

Honda 95701-06012-00

BOLT, FLANGE (6X12)

Note: (Honda Code 2105799).

$2.49

$

In Stock, Qty 19

0

14

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

Note: (Honda Code 0708941).

$12.99

$

In Stock, only 1 left!

0
