GX270 VA (GCAB) - Honda Engine, Made in Japan (SN: GCAB-1000001 - GCAB-1999999) CRANKCASE COVER (4) Parts Diagram

Engine, Made in Japan

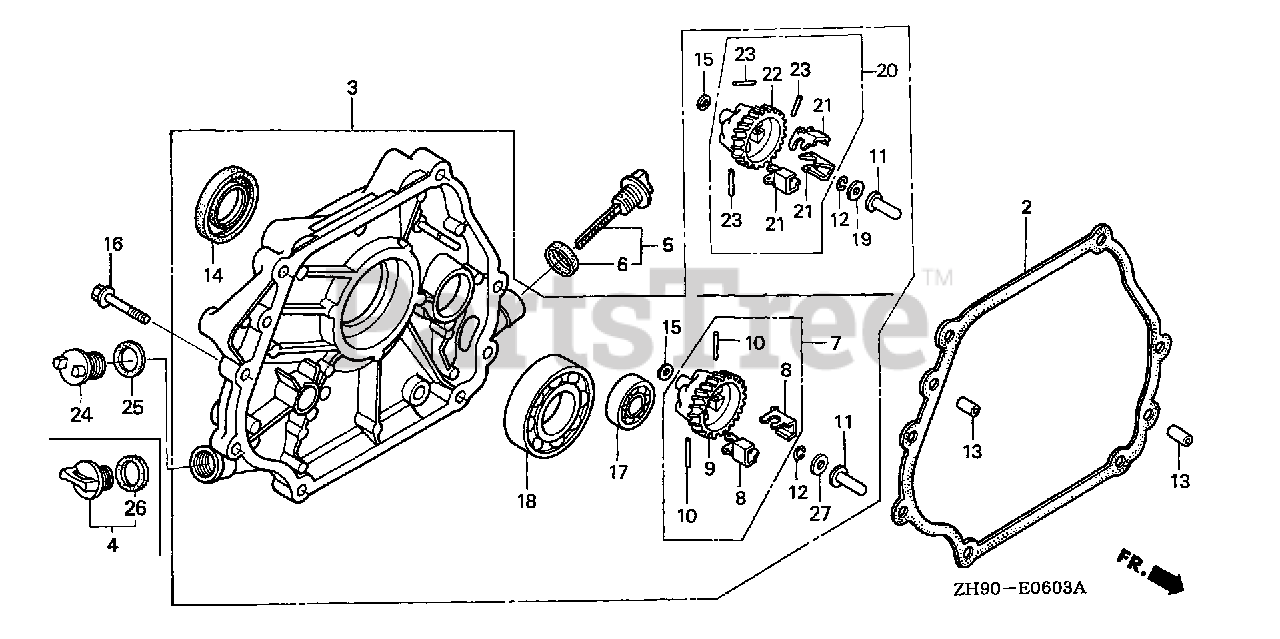

CRANKCASE COVER (4) Parts Diagram

  • Title

2

Honda 11381-ZE2-801

GASKET, CASE COVER

$11.99

$

In Stock, only 4 left!

0

3

Honda 11400-ZE2-601

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE
(Superseded to 11400-Z1D-600)

$114.99

$

Usually ships in 3-6 days

0

3

Honda 11400-Z1D-600

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$114.99

$

Usually ships in 3-6 days

0

4

Honda 15600-ZG4-003

CAP ASSY., OIL FILLER

Note: Use from Engine SN 1071799.

$6.99

$

In Stock, only 1 left!

0

5

Honda 15600-735-003

CAP ASSY., OIL FILLER

$9.49

$

In Stock, Qty 11

0

6

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$3.49

$

In Stock, only 3 left!

0

7

Honda 16510-ZE2-811

GOVERNOR ASSY.

$27.99

$

Usually ships in 3-6 days

0

8

Honda 16511-ZE2-000

WEIGHT, GOVERNOR

$4.49

$

Usually ships in 3-6 days

0

9

Honda 16512-ZE2-811

HOLDER, GOVERNOR WEIGHT

$19.99

$

Usually ships in 3-6 days

0

10

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, only 3 left!

0

12

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

12

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

Note: (Optional).

$1.99

$

In Stock, only 3 left!

0

12

Honda 90602-896-000

CLIP, GOVERNOR HOLDER

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90701-HC4-000

PIN, DOWEL (8X12)

$3.99

$

In Stock, only 2 left!

0

14

Honda 91201-890-003

OIL SEAL (30X46X8)

$11.99

$

In Stock, Qty 5

0

15

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

16

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$2.99

$

In Stock, only 3 left!

0

17

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 3 left!

0

18

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

$32.99

$

In Stock, only 1 left!

0

24

Honda 15620-ZG4-910

SEE PART DETAILS - PRI; CAP, OIL FILLER

Note: Use up to Engine SN 1071798.

$4.99

$

Usually ships in 3-6 days

0

25

Honda 15621-896-010

GASKET, OIL FILLER CAP

Note: Use up to Engine SN 1071798.

$5.99

$

In Stock, Qty 5

0

26

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

Note: Use from Engine SN 1071799.

$3.49

$

In Stock, only 3 left!

0

27

Honda 90473-147-000

WASHER (6X16)

Note: Use up to Engine SN 1064745.

$1.99

$

In Stock, only 1 left!

0
