GX270 UT2 RHQ6/A (GCBGT) - Honda Engine, Made in Thailand (SN: GCBGT-2000001 - GCBGT-2258490) MUFFLER COVER Parts Diagram

Engine, Made in Thailand

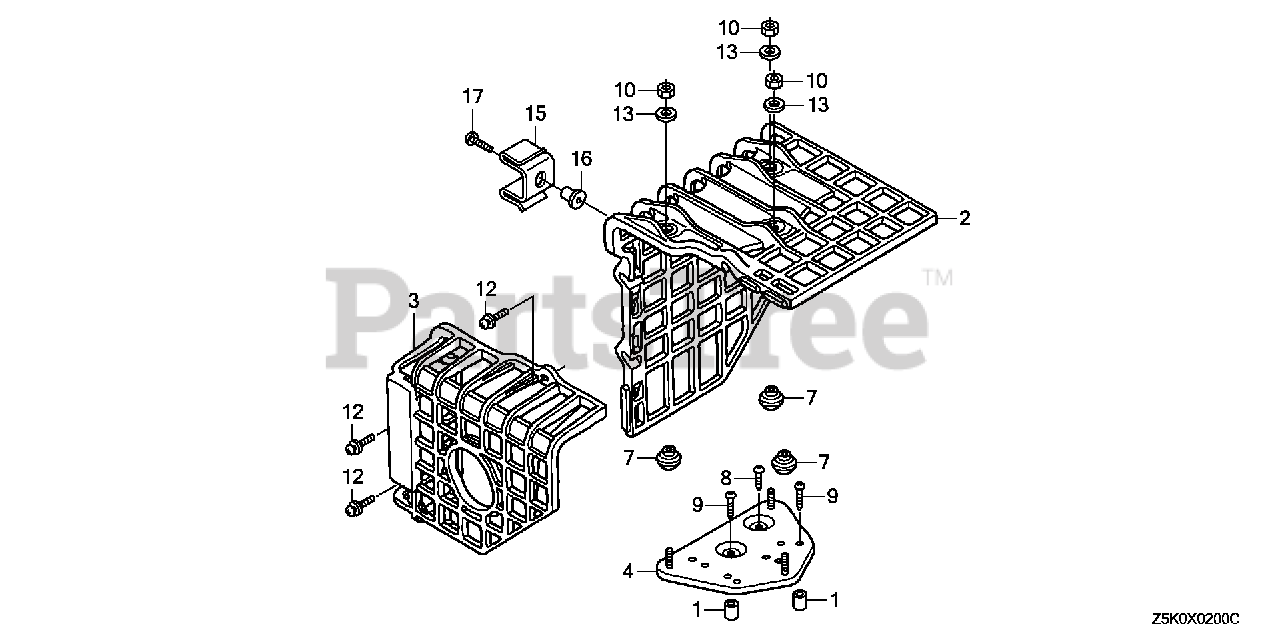

MUFFLER COVER Parts Diagram

  • Title

1

Honda 17233-896-701

COLLAR, AIR CLEANER HOUSING (Honda Code 2577419).

Note: (Optional)

$4.99

$

Usually ships in 3-6 days

0

2

Honda 18433-ZK9-W41

COVER, MUFFLER

Note: (Optional)

$18.99

$

Usually ships in 3-6 days

0

3

Honda 18434-ZK9-W41

COVER, RR. MUFFLER

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

4

Honda 18436-ZH8-W41

BASE, MUFFLER COVER

Note: (Optional)

$19.99

$

Usually ships in 3-6 days

0

7

Honda 18466-ZH8-W40

SPACER, MUFFLER COVER (Honda Code 4787198).

Note: (Optional)

$8.49

$

Usually ships in 3-6 days

0

8

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

Note: (Optional)

$2.49

$

In Stock, Qty 20+

0

9

Honda 90050-ZH8-W40

SCREW, TAPPING (5X25) (Honda Code 4787206).

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90302-KF9-900

NUT, HEX. (5MM) (Honda Code 4787214).

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

12

Honda 93891-06020-07

SCREW-WASHER (6X20) (Honda Code 1188614).

Note: (Optional)

$1.99

$

In Stock, only 4 left!

0

13

Honda 94103-05700

WASHER, PLAIN (5MM) (Honda Code 0692491).

Note: (Optional)

$1.49

$

In Stock, only 4 left!

0

15

Honda 18437-Z5T-000

STAY, MUFFLER COVER

Note: (Optional)

$32.99

$

Usually ships in 3-6 days

0

16

Honda 19619-ZL8-300

COLLAR, FAN COVER (Honda Code 5580527). (N/A: SEE ASSEMBLY)

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

17

Honda 90006-Z5T-000

SCREW, TAPPING (6X25)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0
