GX270 UT2 QXC4 (GCBGT) - Honda Engine, Made in Thailand (SN: GCBGT-1000001 - GCBGT-9999999) CRANKCASE COVER (1) Parts Diagram

Engine, Made in Thailand

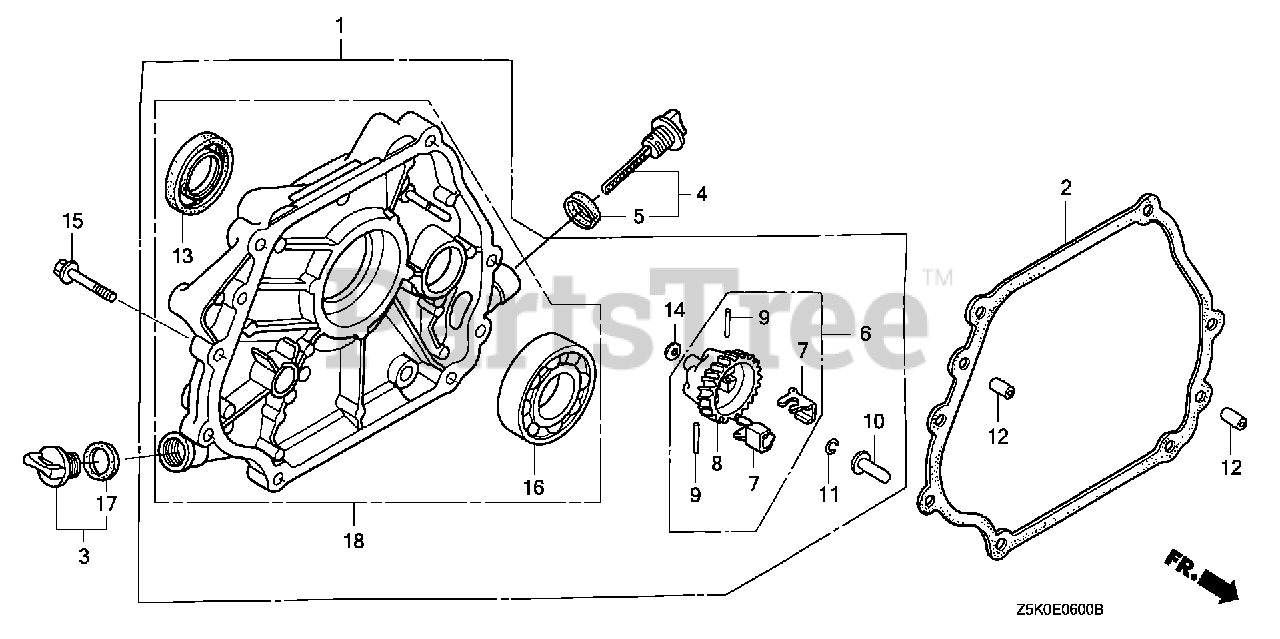

CRANKCASE COVER (1) Parts Diagram

  • Title

1

Honda 11300-Z1D-600

COVER ASSY., CRANKCASE

$295.99

$

Usually ships in 3-6 days

0

2

Honda 11381-Z5K-000

GASKET, CASE COVER

$7.49

$

In Stock, Qty 8

0

3

Honda 15600-Z0T-820

CAP ASSY., OIL FILLER (BLACK)

$1.49

$

In Stock, Qty 5

0

4

Honda 15600-Z1C-000

CAP ASSY., OIL FILLER

$7.99

$

In Stock, Qty 10

0

5

Honda 15625-Z0T-800

GASKET, OIL FILLER CAP

$4.99

$

In Stock, Qty 19

0

6

Honda 16510-ZE2-000

GOVERNOR ASSY.

$28.99

$

Usually ships in 3-6 days

0

7

Honda 16511-ZE2-000

WEIGHT, GOVERNOR

$4.49

$

Usually ships in 3-6 days

0

8

Honda 16512-ZE2-000

HOLDER, GOVERNOR WEIGHT

$19.99

$

Usually ships in 3-6 days

0

9

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, only 3 left!

0

11

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

12

Honda 90701-HC4-000

PIN, DOWEL (8X12)

$3.99

$

In Stock, only 2 left!

0

13

Honda 91201-Z1D-003

OIL SEAL (30X46X8) (NOK ASIA)

$12.99

$

In Stock, only 2 left!

0

14

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

15

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$2.99

$

In Stock, only 3 left!

0

16

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

$32.99

$

In Stock, only 1 left!

0

17

Honda 15625-Z0T-800

GASKET, OIL FILLER CAP

$4.99

$

In Stock, Qty 19

0
