GX270 UT2 QSC9 (GCBGT) - Honda Engine, Made in Thailand (SN: GCBGT-1000001 - GCBGT-9999999) CONTROL BOX (2) Parts Diagram

Engine, Made in Thailand

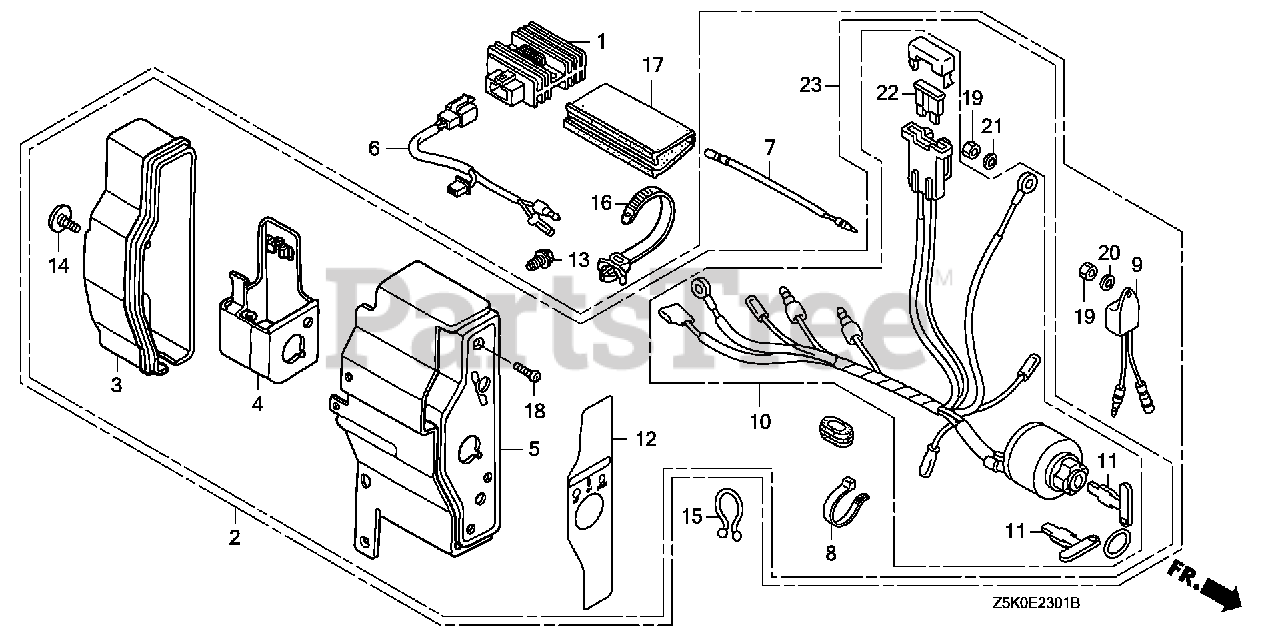

CONTROL BOX (2) Parts Diagram

  • Title

3

Honda 31612-ZE2-003

SEE PART DETAILS - PRI; CASE, CONTROL (Honda Code 2095875).

$22.99

$

Usually ships in 3-6 days

0

4

Honda 31614-ZE2-003

SEE PART DETAILS - PRI; BRACKET, CASE MOUNTING (Honda Code 2095883).

$18.99

$

Usually ships in 3-6 days

0

5

Honda 31615-ZE2-003ZG

SEE PART DETAILS - PRI; PANEL, CONTROL *R280* (POWER RED)

$30.99

$

In Stock, only 1 left!

0

8

Honda 32902-892-003

BAND (Honda Code 0947457).

$4.99

$

In Stock, only 1 left!

0

10

Honda 35100-Z5T-831

SWITCH ASSY., COMBINATION (10A)

$172.99

$

Usually ships in 3-6 days

0

11

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY (Honda Code 7635063).

$11.99

$

In Stock, only 3 left!

0

12

Honda 87529-Z4S-820

MARK, CONTROL BOX (EXP)

$15.99

$

Usually ships in 3-6 days

0

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

14

Honda 90380-MA6-010

SEE PART DETAILS - PRI; SCREW, SPECIAL (6X12) (Honda Code 1490648).

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90630-751-000

SEE PART DETAILS - PRI; CLIP, PURSE LOCK

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L* (Honda Code 1170653). (BLACK)

$9.99

$

In Stock, only 1 left!

0

17

Honda 91406-ZE2-003

TUBE, FASTENER (30) (Honda Code 2159762).

$7.49

$

Usually ships in 3-6 days

0

18

Honda 93500-04012-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X12) (Honda Code 0285643).

$1.49

$

In Stock, Qty 10

0

19

Honda 94001-04390-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM) (Honda Code 0499707).

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94111-04800

WASHER, SPRING (4MM) (Honda Code 0346114).

$1.49

$

Usually ships in 3-6 days

0

22

Honda 98200-31500

FUSE, BLADE (15A) (Honda Code 1644244).

$1.99

$

In Stock, Qty 6

0

23

Honda 31610-Z5K-831ZB

BOX ASSY., CONTROL (10A) *R280* (EXP-ALERT) (POWER RED)

$190.99

$

Usually ships in 3-6 days

0
