GX270 UT2 QAE2 (GCBGT) - Honda Engine, Made in Thailand (SN: GCBGT-1000001 - GCBGT-9999999) FUEL TANK Parts Diagram

Engine, Made in Thailand

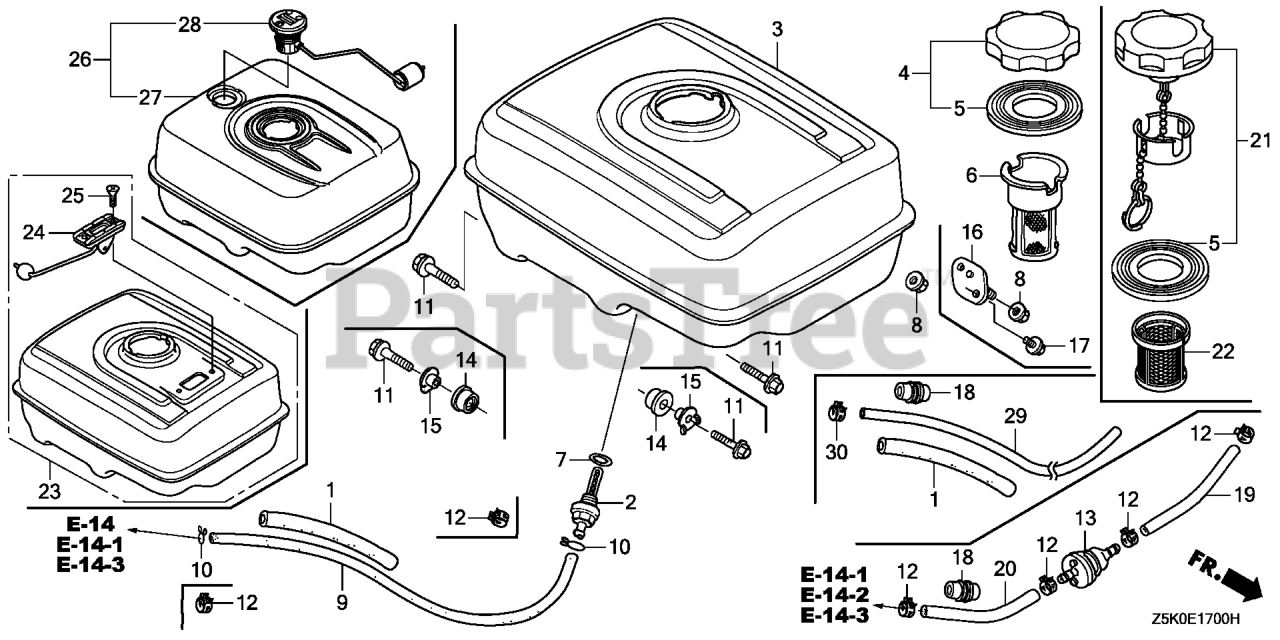

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.49

$

In Stock, Qty 6

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$9.49

$

In Stock, Qty 12

0

5

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

$0.99

$

In Stock, Qty 6

0

5

Honda 17631-Z1T-800

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)

$

$

Not available

7

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

8

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

9

Honda 91424-Z5K-013

TUBE, FUEL (4.5X210) (FKM)

$12.99

$

In Stock, only 2 left!

0

11

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, Qty 5

0

12

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$3.49

$

Usually ships in 3-6 days

0

21

Honda 17620-Z4H-020

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use up to Engine SN 1131503.

$79.99

$

Usually ships in 3-6 days

0

21

Honda 17620-Z4H-900

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: Use up to Engine SN 2162203.

$79.99

$

Usually ships in 3-6 days

0

21

Honda 17620-Z4H-910

CAP, FUEL FILLER
(Superseded to 17620-Z4H-912)

Note: Use from Engine SN 2162204.

$82.99

$

In Stock, Qty 8

0

21

Honda 17620-Z4H-912

CAP, FUEL FILLER

Note: Use from Engine SN 2162204.

$82.99

$

In Stock, Qty 8

0

22

Honda 17672-Z4H-000

FILTER, FUEL (FROM 1204807)

$12.99

$

In Stock, only 4 left!

0

27

Honda 17510-Z5K-000ZA

TANK, FUEL *NH1* (BLACK)

$69.99

$

Usually ships in 3-6 days

0

27

Honda 17510-Z5K-000ZB

TANK, FUEL *NH31* (MCKINLEY WHITE)

$63.99

$

Usually ships in 3-6 days

0
