GX270 UT2 PZMD (GCBGT) - Honda Engine, Made in Thailand (SN: GCBGT-1000001 - GCBGT-2258490) IGNITION COIL (2) Parts Diagram

Engine, Made in Thailand

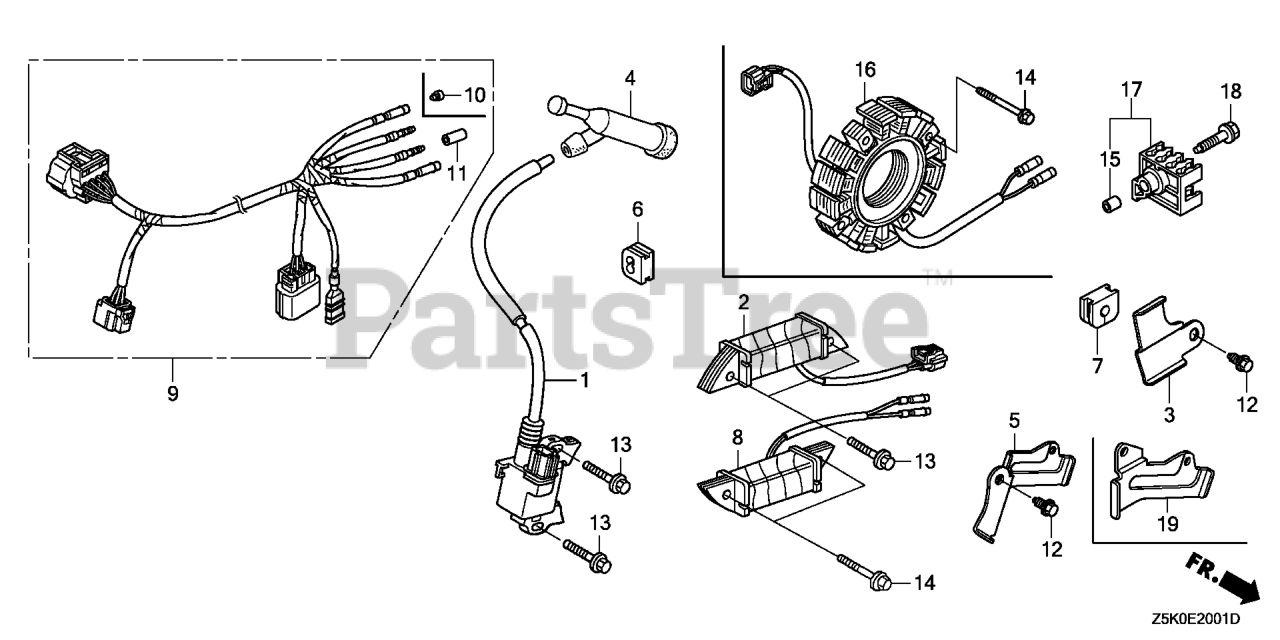

IGNITION COIL (2) Parts Diagram

  • Title

1

Honda 30500-Z5K-003

COIL ASSY., IGNITION

$74.99

$

Usually ships in 3-6 days

0

2

Honda 30595-Z5T-W01

COIL ASSY., POWER

$90.99

$

Usually ships in 3-6 days

0

3

Honda 30596-Z5T-W00

BRACKET B, HARNESS

$54.99

$

Usually ships in 3-6 days

0

4

Honda 30700-Z1C-813

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (NGK Y-EZD)

$6.99

$

Usually ships in 3-6 days

0

5

Honda 31511-Z5T-W00

CLAMP, WIRE

$23.99

$

Usually ships in 3-6 days

0

6

Honda 31512-ZE2-000

GROMMET, WIRE (Honda Code 2026557).

$4.49

$

Usually ships in 3-6 days

0

7

Honda 31512-Z5T-W00

GROMMET, WIRE

$7.99

$

Usually ships in 3-6 days

0

8

Honda 31630-Z5T-W11

COIL ASSY., CHARGE (2.9A)

$42.99

$

Usually ships in 3-6 days

0

9

Honda 32110-Z5K-U02

WIRE HARNESS ASSY., ENGINE (HM,SW)

Note: Use from Engine SN 2000001. Use up to Engine SN 1999999.

$51.99

$

Usually ships in 3-6 days

0

10

Honda 32823-ZV5-003

PLUG, CONNECTOR (INNER) (TROLLING CONTROL)

$4.49

$

Usually ships in 3-6 days

0

11

Honda 32824-ZV5-003

PLUG, CONNECTOR (OUTER) (ENGINE NO.)

$4.49

$

Usually ships in 3-6 days

0

12

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

13

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.99

$

In Stock, Qty 8

0

14

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

$3.49

$

In Stock, only 2 left!

0

15

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER (Honda Code 1427533).

$4.99

$

In Stock, Qty 7

0

17

Honda 32111-Z5T-W00

HOLDER, CONNECTOR

$210.99

$

Usually ships in 3-6 days

0

18

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200) (Honda Code 0671552).

$2.99

$

In Stock, only 2 left!

0
