GX270 UT HA2 (GCAJT) - Honda Engine, Made in Thailand (SN: GCAJT-1000001 - GCAJT-9999999) CRANKCASE COVER (2) Parts Diagram

Engine, Made in Thailand

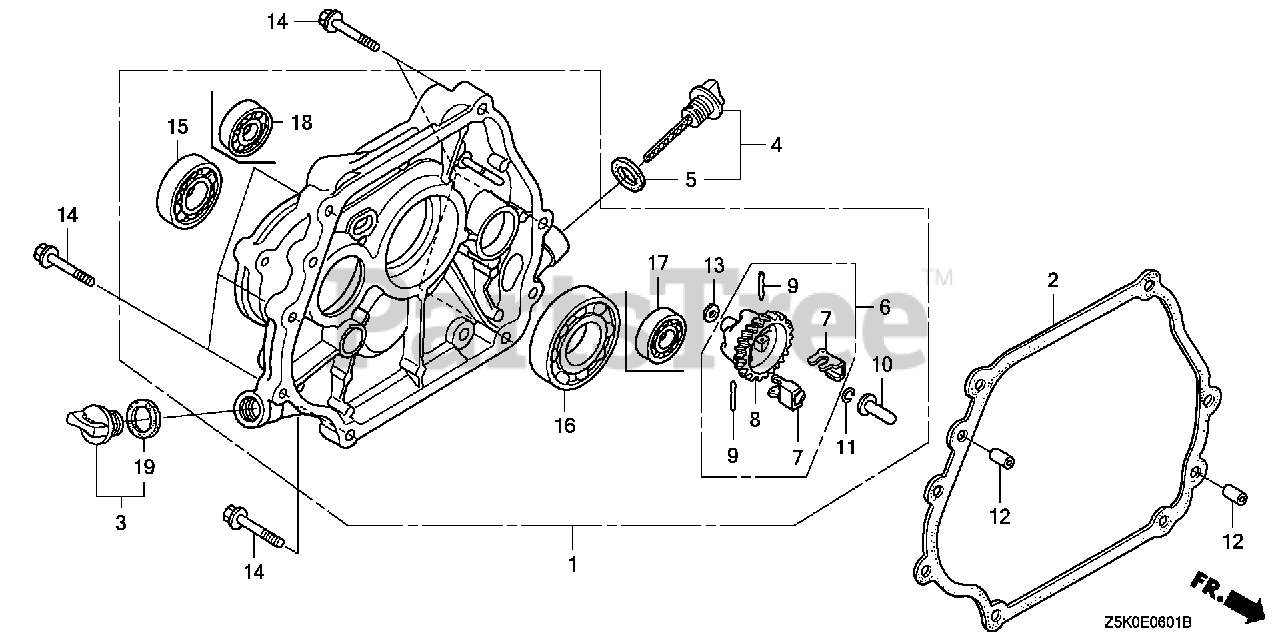

CRANKCASE COVER (2) Parts Diagram

  • Title

1

Honda 11400-ZE2-623

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$249.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE2-801

GASKET, CASE COVER

$11.99

$

In Stock, only 4 left!

0

3

Honda 15600-Z0T-820

CAP ASSY., OIL FILLER (BLACK)

$1.49

$

In Stock, Qty 5

0

4

Honda 15600-Z1C-000

CAP ASSY., OIL FILLER

$7.99

$

In Stock, Qty 10

0

5

Honda 15625-Z0T-800

GASKET, OIL FILLER CAP

$4.99

$

In Stock, Qty 19

0

6

Honda 16510-ZE2-811

GOVERNOR ASSY.

$27.99

$

Usually ships in 3-6 days

0

7

Honda 16511-ZE2-000

WEIGHT, GOVERNOR

$4.49

$

Usually ships in 3-6 days

0

8

Honda 16512-ZE2-811

HOLDER, GOVERNOR WEIGHT

$19.99

$

Usually ships in 3-6 days

0

9

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, only 3 left!

0

11

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

12

Honda 90701-HC4-000

PIN, DOWEL (8X12)

$3.99

$

In Stock, only 2 left!

0

13

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

14

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$2.99

$

In Stock, only 3 left!

0

15

Honda 96100-62040-00

BEARING, RADIAL BALL (6204)

$16.99

$

In Stock, only 2 left!

0

16

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

$32.99

$

In Stock, only 1 left!

0

17

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 3 left!

0

18

Honda 96100-63020-00

BEARING, RADIAL BALL (6302)

$12.99

$

Usually ships in 3-6 days

0

19

Honda 15625-Z0T-800

GASKET, OIL FILLER CAP

$4.99

$

In Stock, Qty 19

0
