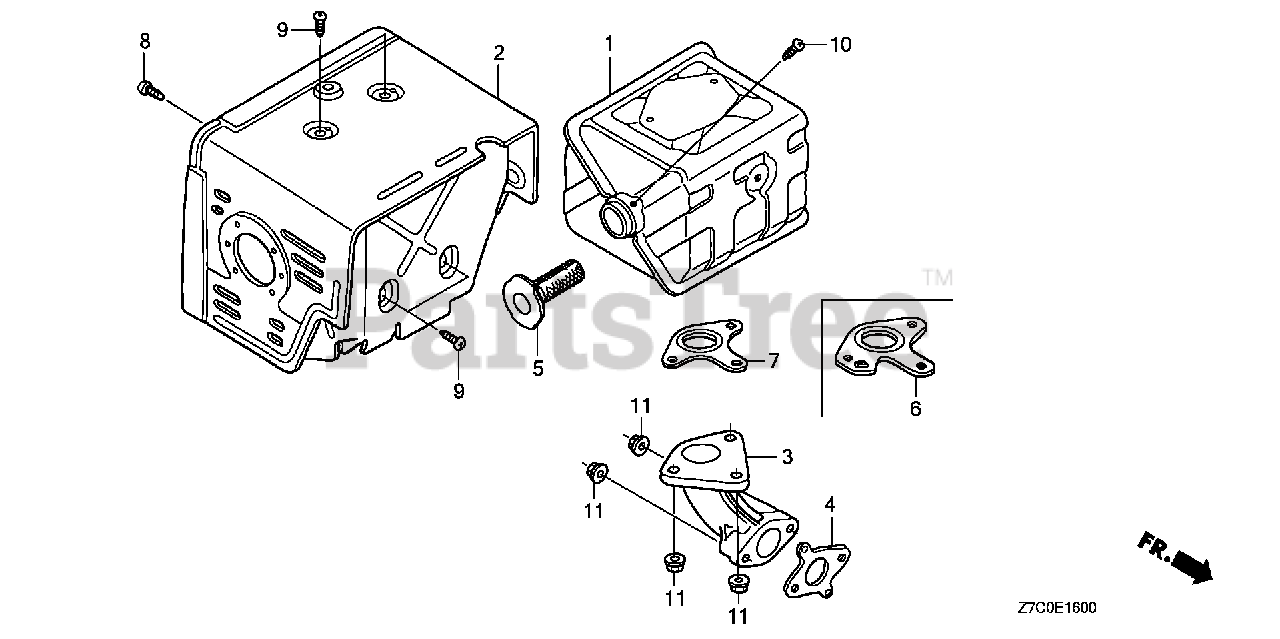

GX270 UH QXC9 (GCAGH) - Honda Engine, Made in China (SN: GCAGH-0000001 - GCAGH-9999999) MUFFLER Parts Diagram

Engine, Made in China

MUFFLER Parts Diagram

  • Title

1

Honda 18310-ZE2-W61

MUFFLER (100DB)

$121.99

$

In Stock, only 1 left!

0

2

Honda 18320-ZE2-W61

SEE PART DETAILS - SUP; PROTECTOR, MUFFLER
(Superseded to 18320-ZE2-W62)

$68.99

$

In Stock, only 1 left!

0

2

Honda 18320-ZE2-W62

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER

$68.99

$

In Stock, only 1 left!

0

3

Honda 18330-ZH9-N00

PIPE, EX.

$91.99

$

Usually ships in 3-6 days

0

4

Honda 18333-ZF6-W01

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-Z1C-901)

$2.99

$

In Stock, only 3 left!

0

4

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$2.99

$

In Stock, only 3 left!

0

5

Honda 18355-ZE2-W00

ARRESTER, SPARK

Note: (Optional).

$54.99

$

In Stock, only 2 left!

0

6

Honda 18381-ZE2-W10

GASKET, MUFFLER (ARRESTER) (NIPPON LEAKLESS)

Note: (Optional).

$12.99

$

In Stock, Qty 7

0

7

Honda 18381-ZE2-800

SEE PART DETAILS - PRI; GASKET, MUFFLER (NIPPON LEAKLESS)
(Superseded to 18381-ZE2-801)

$14.99

$

In Stock, only 1 left!

0

7

Honda 18381-Z1C-801

GASKET, MUFFLER (THAI LEAKLESS)

$15.99

$

Usually ships in 3-6 days

0

8

Honda 90006-ZE2-000

SCREW, TAPPING (6X10)

$1.99

$

In Stock, Qty 5

0

9

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

$2.49

$

In Stock, Qty 20+

0

10

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Optional).

$1.49

$

In Stock, Qty 11

0

11

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0
