GX270 UH QXC9 (GCAGH) - Honda Engine, Made in China (SN: GCAGH-0000001 - GCAGH-9999999) FUEL TANK Parts Diagram

Engine, Made in China

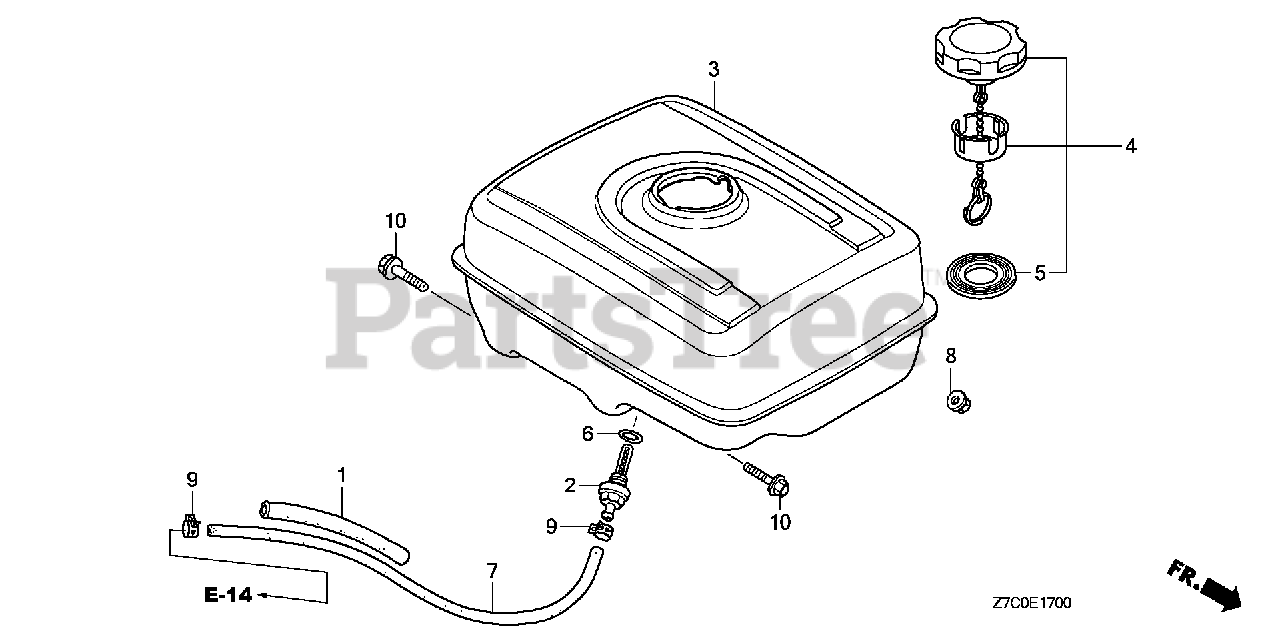

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, Qty 14

0

2

Honda 16955-ZE1-010

JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE2-801ZA

TANK, FUEL *NH1* (BLACK)

$180.99

$

In Stock, only 1 left!

0

3

Honda 17510-ZE2-801ZC

TANK, FUEL *NH31* (MCKINLEY WHITE)

$279.99

$

Usually ships in 3-6 days

0

4

Honda 17620-Z4H-010

SEE PART DETAILS - SUP; CAP, FUEL FILLER (CHROME PLATED)
(Superseded to 17620-Z4H-900)

Note: Use up to Engine SN 0000007.

$69.99

$

Usually ships in 3-6 days

0

4

Honda 17620-Z4H-020

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

$69.99

$

Usually ships in 3-6 days

0

4

Honda 17620-Z4H-030

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

$69.99

$

Usually ships in 3-6 days

0

5

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (39X62X3) (RADICON)

Note: Use from Engine SN 0000008.

$0.99

$

In Stock, Qty 8

0

5

Honda 17631-Z4H-800

GASKET, FUEL FILLER CAP (39X62X3)

Note: Use up to Engine SN 0000007.

$0.99

$

In Stock, Qty 6

0

6

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

6

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

7

Honda 91424-Z5F-802

TUBE, FUEL (4.5X222) (FKM)
(Superseded to 91424-Z5F-803)

$22.99

$

Usually ships in 3-6 days

0

8

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

9

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, Qty 6

0

10

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, only 4 left!

0
