GX270 UH QXC9 (GCAGH) - Honda Engine, Made in China (SN: GCAGH-0000001 - GCAGH-9999999) CYLINDER BARREL Parts Diagram

Engine, Made in China

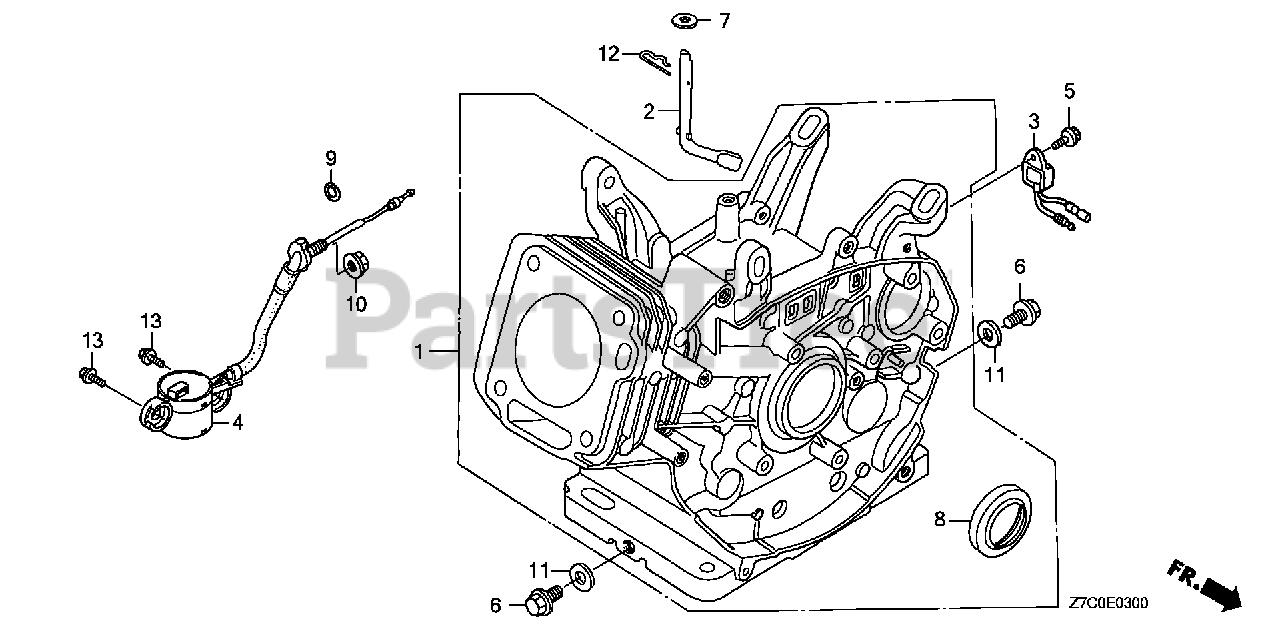

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-ZH9-406

CYLINDER ASSY. (ALERT)
(Superseded to 12000-Z1D-406)

$713.99

$

Usually ships in 3-6 days

0

2

Honda 16541-Z7B-000

SHAFT, GOVERNOR ARM

$10.99

$

Usually ships in 3-6 days

0

3

Honda 34150-ZH7-013

SEE PART DETAILS - SUP; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

$51.99

$

In Stock, only 1 left!

0

3

Honda 34150-ZH7-023

SEE PART DETAILS - PRI; ALERT UNIT, OIL

$51.99

$

In Stock, only 1 left!

0

4

Honda 35480-Z7E-003

SWITCH ASSY., OIL LEVEL

$59.99

$

Usually ships in 3-6 days

0

5

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

6

Honda 90131-896-650

BOLT, DRAIN PLUG (12X15)

$4.99

$

In Stock, only 2 left!

0

7

Honda 90446-Z7E-000

WASHER (8.2X17X0.8)

$4.99

$

Usually ships in 3-6 days

0

8

Honda 91201-Z7B-003

OIL SEAL (30X46X8)

$11.99

$

Usually ships in 3-6 days

0

9

Honda 91353-Z7E-003

O-RING (14MM)

$0.99

$

Usually ships in 3-6 days

0

10

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 6

0

11

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 12

0

12

Honda 94251-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, Qty 5

0

13

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 13

0
