GX270 U2 QXEM (GCBMK) - Honda Engine, Made in Japan (SN: GCBMK-1000001 - GCBMK-9999999) CONTROL BOX (1) Parts Diagram

Engine, Made in Japan

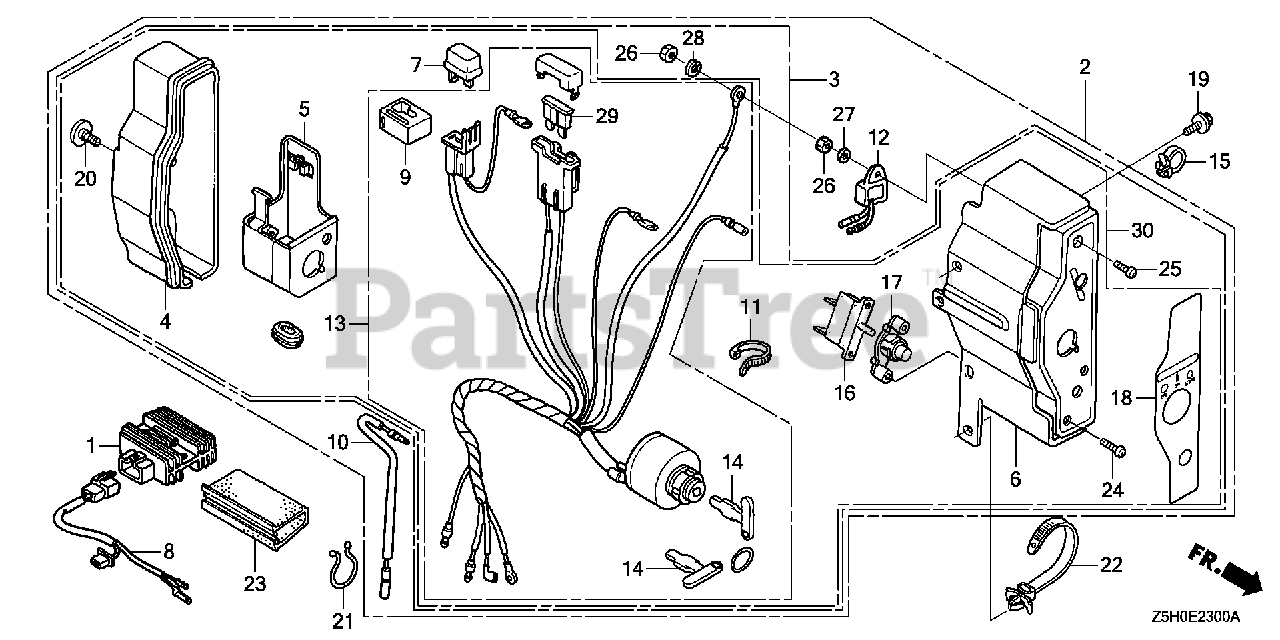

CONTROL BOX (1) Parts Diagram

  • Title

4

Honda 31612-ZE2-003

SEE PART DETAILS - PRI; CASE, CONTROL (Honda Code 2095875).

$22.99

$

Usually ships in 3-6 days

0

5

Honda 31614-ZE2-003

SEE PART DETAILS - PRI; BRACKET, CASE MOUNTING (Honda Code 2095883).

$18.99

$

Usually ships in 3-6 days

0

6

Honda 31615-ZE2-003ZG

SEE PART DETAILS - PRI; PANEL, CONTROL *R280* (POWER RED)

$30.99

$

In Stock, only 1 left!

0

7

Honda 31700-124-008

SEE PART DETAILS - PRI; RECTIFIER ASSY., SILICON (SHINDENGEN)

$40.99

$

In Stock, only 1 left!

0

9

Honda 32127-738-700

SUSPENSION, CONNECTOR (Honda Code 2026631).

$4.99

$

Usually ships in 3-6 days

0

11

Honda 32902-892-003

BAND (Honda Code 0947457).

$4.99

$

In Stock, only 1 left!

0

13

Honda 35100-Z5T-811

SWITCH ASSY., COMBINATION

$113.99

$

Usually ships in 3-6 days

0

14

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY (Honda Code 7635063).

$11.99

$

In Stock, only 3 left!

0

15

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819.

$2.99

$

In Stock, only 1 left!

0

16

Honda 38240-VA3-900

PROTECTOR, CIRCUIT (1.0A) (Honda Code 1751288).

$35.99

$

Usually ships in 3-6 days

0

17

Honda 38250-ZA8-701

LENS ASSY., PROTECTOR (Honda Code 1888676).

$20.99

$

Usually ships in 3-6 days

0

18

Honda 87529-Z4T-840

MARK, CONTROL BOX (EXTERNAL)

$16.99

$

Usually ships in 3-6 days

0

19

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

20

Honda 90380-MA6-010

SEE PART DETAILS - PRI; SCREW, SPECIAL (6X12) (Honda Code 1490648).

$4.49

$

Usually ships in 3-6 days

0

21

Honda 90630-751-000

SEE PART DETAILS - PRI; CLIP, PURSE LOCK

$2.99

$

Usually ships in 3-6 days

0

22

Honda 90672-SA0-003

STRAP, CABLE (118MM) *NH1L* (Honda Code 1170653). (BLACK)

$9.99

$

In Stock, only 1 left!

0

23

Honda 91406-ZE2-003

TUBE, FASTENER (30) (Honda Code 2159762).

$7.49

$

Usually ships in 3-6 days

0

24

Honda 93500-03012-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X12) (Honda Code 0665521).

$1.49

$

Usually ships in 3-6 days

0

29

Honda 98200-30500

SEE PART DETAILS - PRI; FUSE, BLADE (5A) (Honda Code 1938737).

$1.99

$

In Stock, Qty 5

0

30

Honda 31610-Z5K-811ZB

BOX ASSY., CONTROL *R280* (EXP-ALERT) (POWER RED)

$183.99

$

Usually ships in 3-6 days

0
