GX270 U VSD (GCALK) - Honda Engine, Made in Japan (SN: GCALK-1000001 - GCALK-9999999) MUFFLER COVER Parts Diagram

Engine, Made in Japan

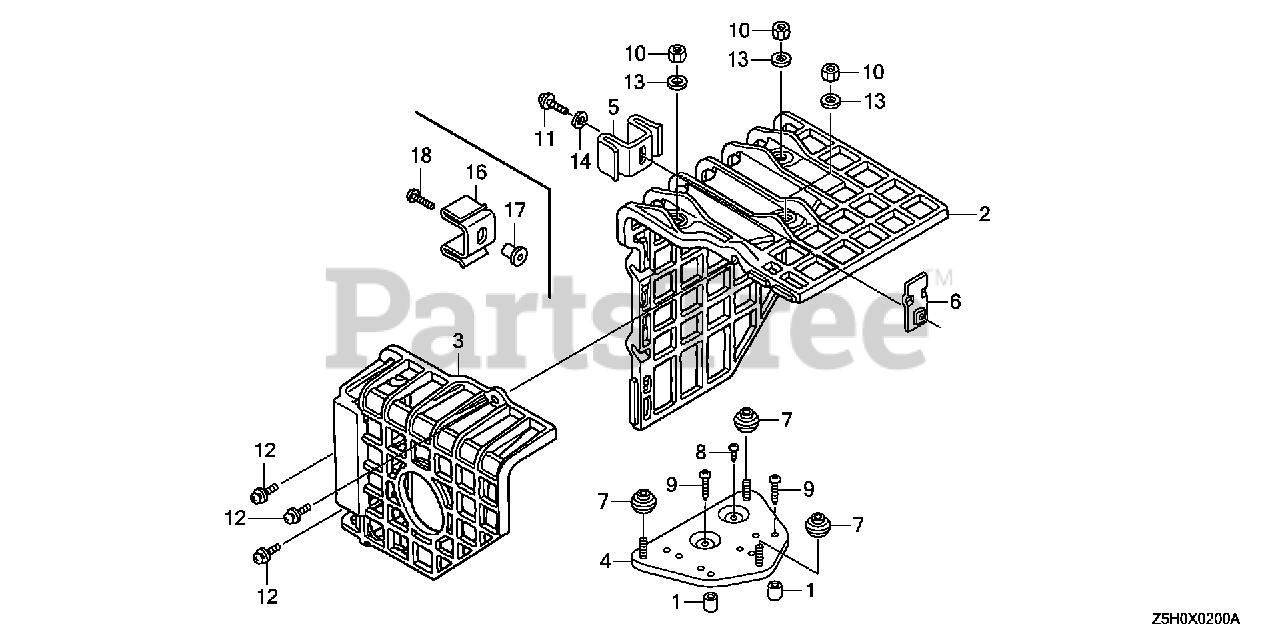

MUFFLER COVER Parts Diagram

  • Title

1

Honda 17233-896-701

COLLAR, AIR CLEANER HOUSING (Honda Code 2577419).

Note: (Optional).

$4.99

$

Usually ships in 3-6 days

0

2

Honda 18433-ZF6-W40

SEE PART DETAILS - SUP; COVER, MUFFLER

Note: (Optional).

$121.99

$

Usually ships in 3-6 days

0

3

Honda 18434-ZF6-W40

SEE PART DETAILS - SUP; COVER, RR. MUFFLER

Note: (Optional).

$61.99

$

Usually ships in 3-6 days

0

4

Honda 18436-ZF6-W400

BASE, MUFFLER COVER

Note: (Optional).

$

$

Not available

5

Honda 18437-ZF6-W40

STAY, MUFFLER COVER

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

6

Honda 18438-ZF6-W40

PLATE, SET

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

7

Honda 18466-ZH8-W40

SPACER, MUFFLER COVER (Honda Code 4787198).

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

8

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

9

Honda 90050-ZH8-W40

SCREW, TAPPING (5X25) (Honda Code 4787206).

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90302-KF9-900

NUT, HEX. (5MM) (Honda Code 4787214).

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

11

Honda 93891-05012-00

SEE PART DETAILS - PRI; SCREW-WASHER (5X12) (Honda Code 0487009).

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

12

Honda 93891-06020-07

SCREW-WASHER (6X20) (Honda Code 1188614).

Note: (Optional).

$1.99

$

In Stock, Qty 5

0

13

Honda 94103-05700

WASHER, PLAIN (5MM) (Honda Code 0692491).

Note: (Optional).

$1.49

$

In Stock, only 4 left!

0

14

Honda 94111-05000

SEE PART DETAILS - PRI; WASHER, SPRING (5MM) (Honda Code 0058966).

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0
