GX270 U VPX5 (GCALK) - Honda Engine, Made in Japan (SN: GCALK-1000001 - GCALK-9999999) AIR CLEANER (4) Parts Diagram

Engine, Made in Japan

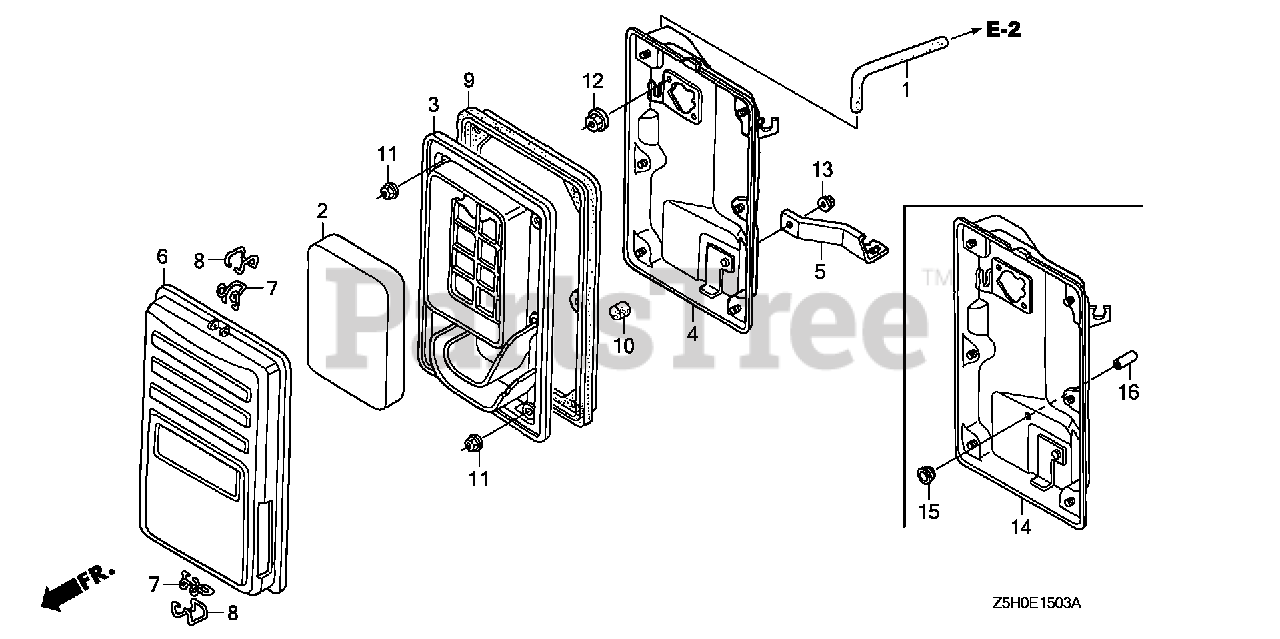

AIR CLEANER (4) Parts Diagram

  • Title

1

Honda 15721-ZB4-000

TUBE, BREATHER

$9.49

$

In Stock, Qty 10

0

2

Honda 17211-899-000

ELEMENT, AIR CLEANER

$9.49

$

In Stock, Qty 20+

0

3

Honda 17212-ZB4-003

SEPARATOR, AIR CLEANER

Note: Use up to Engine SN 1201798.

$85.99

$

Usually ships in 3-6 days

0

3

Honda 17212-Z5R-000

SEPARATOR, AIR CLEANER

Note: Use from Engine SN 1201799.

$63.99

$

Usually ships in 3-6 days

0

4

Honda 17220-ZB4-013

SEE PART DETAILS - PRI; HOUSING, AIR CLEANER

Note: Use up to Engine SN 1201798.

$111.99

$

Usually ships in 3-6 days

0

5

Honda 17222-ZB4-000

STAY, AIR CLEANER

$13.99

$

Usually ships in 3-6 days

0

6

Honda 17231-899-000

COVER, AIR CLEANER

$85.99

$

Usually ships in 3-6 days

0

7

Honda 17235-899-000

CLIP A, AIR CLEANER WIRE

$5.49

$

In Stock, only 2 left!

0

8

Honda 17236-899-000

CLIP B, AIR CLEANER WIRE

$5.49

$

In Stock, only 2 left!

0

9

Honda 17252-899-000

SEAL, AIR CLEANER

$29.99

$

In Stock, only 1 left!

0

10

Honda 17367-413-690

FILTER, DRAIN TUBE

$2.99

$

In Stock, only 1 left!

0

11

Honda 94050-05000

NUT, FLANGE (5MM)

$1.99

$

In Stock, Qty 20+

0

12

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

13

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

14

Honda 17220-Z5R-000

HOUSING, AIR CLEANER

Note: Use from Engine SN 1201799.

$95.99

$

Usually ships in 3-6 days

0

15

Honda 17232-898-000

GROMMET, AIR CLEANER

Note: Use from Engine SN 1201799.

$4.49

$

In Stock, only 2 left!

0

16

Honda 90634-ZL8-H00

CAP, SEALING

Note: Use from Engine SN 1201799.

$5.99

$

Usually ships in 3-6 days

0
