GX270 U VKE4 (GCALK) - Honda Engine, Made in Japan (SN: GCALK-1000001 - GCALK-9999999) MUFFLER (5) Parts Diagram

Engine, Made in Japan

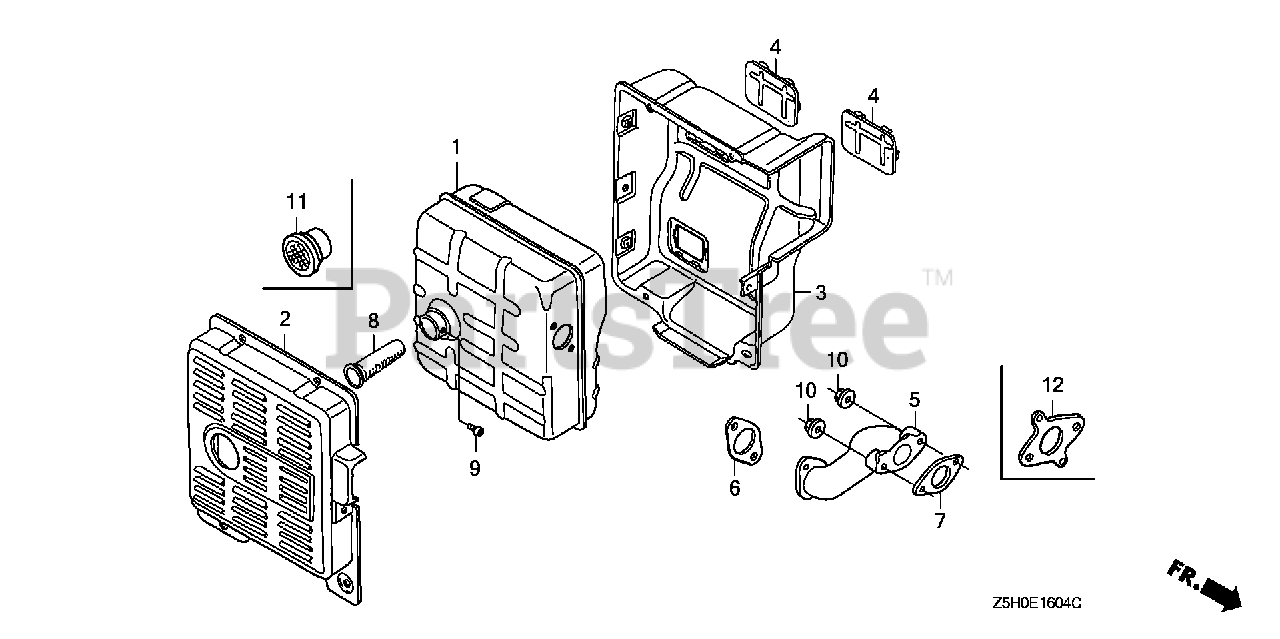

MUFFLER (5) Parts Diagram

  • Title

1

Honda 18310-ZE2-V60

SEE PART DETAILS - SUP; MUFFLER (TSURUMI)
(Superseded to 18310-ZE2-V61)

$243.99

$

Usually ships in 3-6 days

0

1

Honda 18310-ZE2-V61

SEE PART DETAILS - PRI; MUFFLER (TSURUMI)

$243.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZB4-000

PROTECTOR, MUFFLER (OUTER)

$107.99

$

Usually ships in 3-6 days

0

3

Honda 18325-ZB4-000

PROTECTOR, MUFFLER (INNER)

$137.99

$

Usually ships in 3-6 days

0

4

Honda 18329-ZB4-000

SEAL, MUFFLER PROTECTOR

$13.99

$

Usually ships in 3-6 days

0

5

Honda 18330-ZE2-700

PIPE, EX.

$73.99

$

Usually ships in 3-6 days

0

6

Honda 18333-ZB4-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE

$

$

Not available

6

Honda 18333-ZB4-801

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$4.49

$

In Stock, only 3 left!

0

7

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

Note: Use up to Engine SN 1120942.

$5.49

$

In Stock, Qty 20+

0

7

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE

Note: Use up to Engine SN 1120942.

$5.49

$

In Stock, Qty 20+

0

8

Honda 18355-ZB4-630

ARRESTER, SPARK

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

9

Honda 90002-ZE2-U91

SCREW, TAPPING (4X8)

Note: (Optional).

$1.49

$

In Stock, only 2 left!

0

9

Honda 90056-ZL0-000

SCREW, TAPPING (4X6)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

11

Honda 18361-ZL0-000

NETTING, WIRE FLANGE

$21.99

$

Usually ships in 3-6 days

0

12

Honda 18333-ZF6-W01

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-Z1C-901)

Note: Use from Engine SN 1120943.

$3.49

$

In Stock, Qty 20+

0

12

Honda 18333-Z1C-901

SEE PART DETAILS - PRI; GASKET, EX. PIPE

Note: Use from Engine SN 1120943.

$3.49

$

In Stock, Qty 20+

0
