GX270 SX2 (GCAB) - Honda Engine, Made in Japan (SN: GCAB-1000001 - GCAB-1999999) MUFFLER (2) Parts Diagram

Engine, Made in Japan

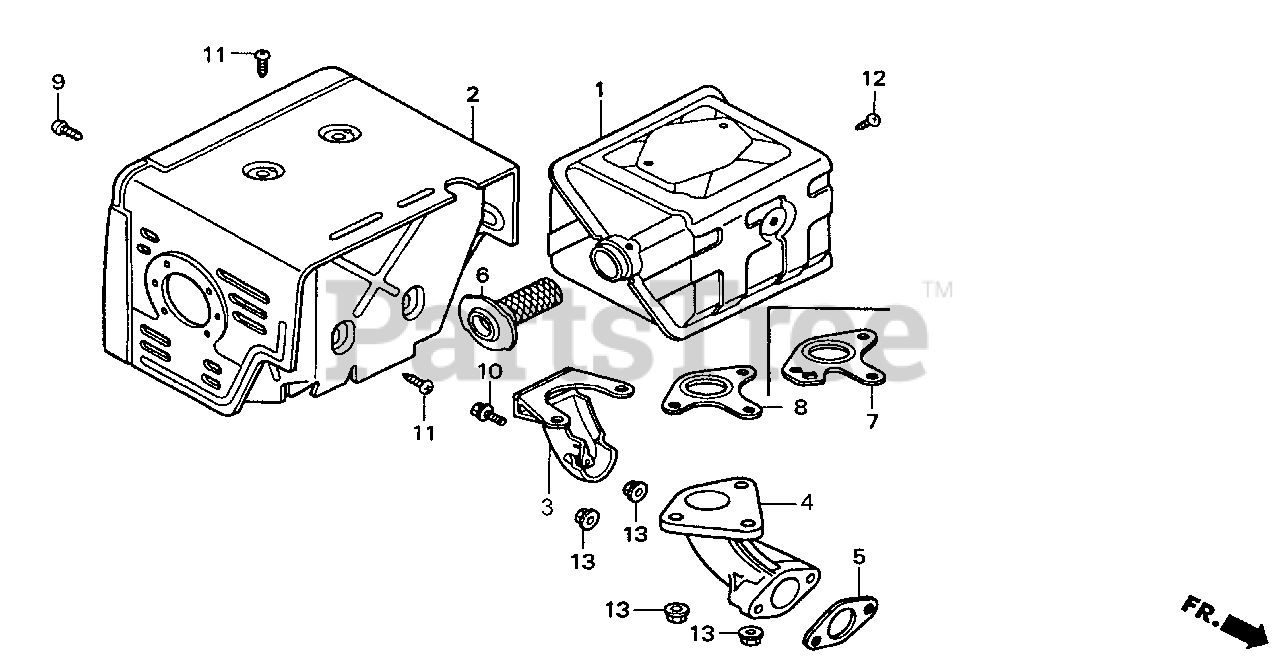

MUFFLER (2) Parts Diagram

  • Title

1

Honda 18310-ZE2-W60

MUFFLER (100DB) (SILENT)
(Superseded to 18310-ZE2-W61)

Note: (Honda Code 3678752).

$135.99

$

Usually ships in 3-6 days

0

1

Honda 18310-ZE2-W61

MUFFLER (100DB)

Note: (Honda Code 6145353).

$135.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZE2-W61

PROTECTOR, MUFFLER
(Superseded to 18320-ZE2-W62)

Note: (Honda Code 4684098).

$74.99

$

In Stock, only 1 left!

0

4

Honda 18330-ZH9-N00

PIPE, EX.

Note: (Honda Code 3682036).

$99.99

$

Usually ships in 3-6 days

0

5

Honda 18333-ZE3-800

GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

Note: Use up to Engine SN 1187115. (Honda Code 3520194).

$5.49

$

In Stock, Qty 20+

0

5

Honda 18333-ZK6-Y00

GASKET, EX. PIPE (WACKER)

Note: Use up to Engine SN 1187115. (Honda Code 5164199).

$5.49

$

In Stock, Qty 20+

0

5

Honda 18333-ZK6-Y00

GASKET, EX. PIPE (WACKER)

Note: Use from Engine SN 1187116. (Honda Code 5164199).

$5.49

$

In Stock, Qty 20+

0

8

Honda 18381-ZE2-800

GASKET, MUFFLER
(Superseded to 18381-ZE2-801)

Note: (Honda Code 3678810).

$16.99

$

In Stock, only 4 left!

0

9

Honda 90006-ZE2-000

SCREW, TAPPING (6X10)

Note: (Honda Code 4335436).

$2.49

$

In Stock, only 1 left!

0

11

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

13

Honda 94050-08000

NUT, FLANGE (8MM)

Note: (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0
