GX270 SMX2 (GCAB) - Honda Engine, Made in Japan (SN: GCAB-2000001 - GCAB-9999999) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

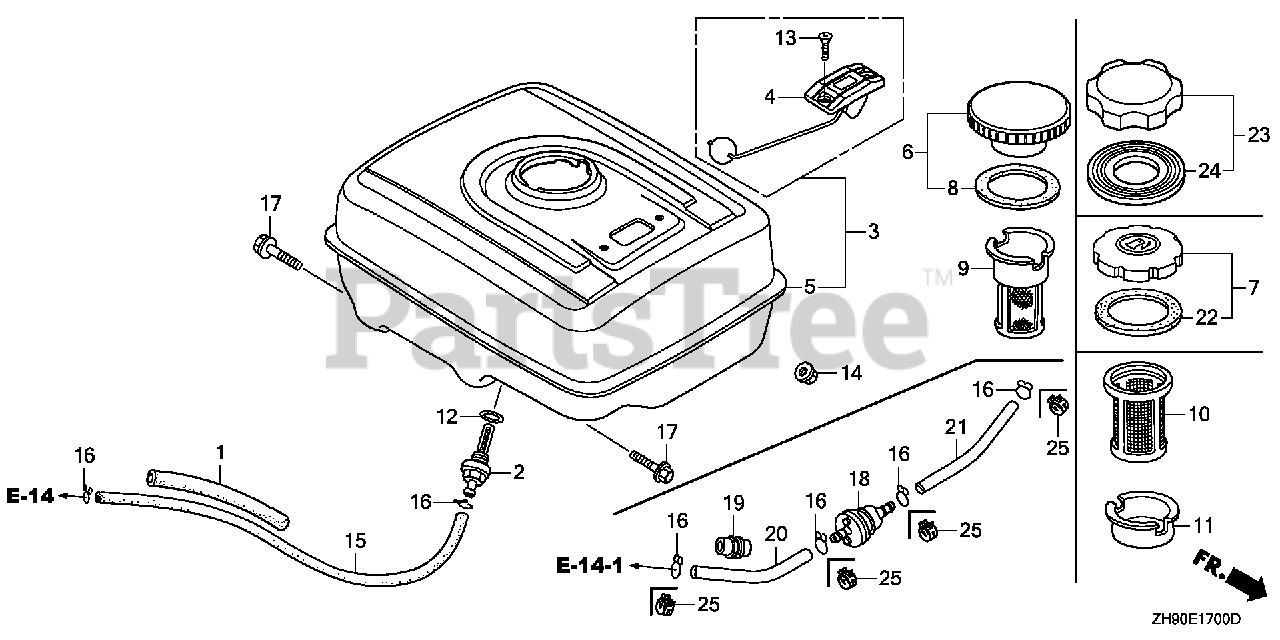

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$4.99

$

In Stock, Qty 14

0

2

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK (NOT AVAILABLE)
(Superseded to 16955-ZE1-010)

$8.99

$

In Stock, Qty 20+

0

5

Honda 17510-ZE2-801ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH1* (BLACK)

Note: Use up to Engine SN 2400587.

$180.99

$

In Stock, only 1 left!

0

5

Honda 17510-ZE2-801ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH1* (BLACK)

Note: Use from Engine SN 2400588.

$180.99

$

In Stock, only 1 left!

0

9

Honda 17672-ZE2-W01

SEE PART DETAILS - PRI; FILTER, FUEL

$12.99

$

In Stock, only 3 left!

0

12

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

12

Honda 91353-671-004

SEE PART DETAILS - SUP; O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

14

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

15

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$54.99

$

In Stock, only 4 left!

0

16

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

17

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, only 4 left!

0

23

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

$

$

Not available

24

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
(Superseded to 17631-Z0T-813)

$3.49

$

Usually ships in 3-6 days

0
