GX270 R VMX2 (GCALK) - Honda Engine, Made in Japan (SN: GCALK-1000001 - GCALK-9999999) CARBURETOR (3) Parts Diagram

Engine, Made in Japan

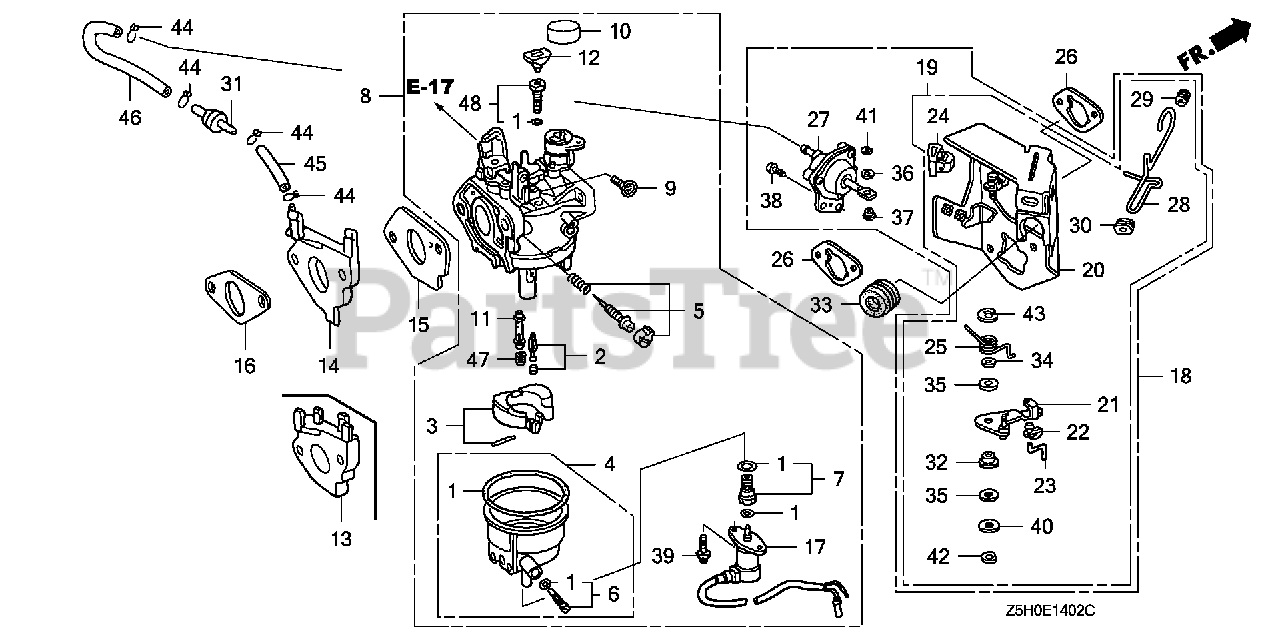

CARBURETOR (3) Parts Diagram

  • Title

1

Honda 16010-ZE3-701

GASKET SET

$18.99

$

Usually ships in 3-6 days

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$43.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZA0-931

FLOAT SET

$49.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZA0-931

CHAMBER SET, FLOAT

$80.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH8-W01

SCREW SET

$12.99

$

In Stock, only 1 left!

0

6

Honda 16024-124-760

SCREW SET, DRAIN

$14.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZA0-931

SCREW SET

$27.99

$

Usually ships in 3-6 days

0

8

Honda 16100-Z5J-V13

CARBURETOR ASSY. (BE21G C)

$375.99

$

Usually ships in 3-6 days

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE DUST

$6.49

$

In Stock, only 1 left!

0

11

Honda 16166-ZH9-820

NOZZLE, MAIN

$28.99

$

Usually ships in 3-6 days

0

12

Honda 16172-ZE3-W10

COLLAR, SETTING

$10.99

$

Usually ships in 3-6 days

0

14

Honda 16211-ZE2-701

INSULATOR, CARBURETOR

$10.99

$

In Stock, only 2 left!

0

15

Honda 16221-ZA0-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 6

0

16

Honda 16223-ZA0-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 20+

0

17

Honda 16230-ZE3-702

VALVE ASSY., SOLENOID

$72.99

$

In Stock, only 1 left!

0

18

Honda 16260-ZE2-723

SEE PART DETAILS - PRI; STAY ASSY., MANUAL CHOKE

$165.99

$

Usually ships in 3-6 days

0

20

Honda 16261-ZE2-702

STAY, SOLENOID

$34.99

$

Usually ships in 3-6 days

0

21

Honda 16262-ZE2-711

LEVER, CHOKE

$8.99

$

Usually ships in 3-6 days

0

22

Honda 16263-ZA0-000

JOINT, ROD

$5.49

$

Usually ships in 3-6 days

0

23

Honda 16264-ZE2-701

ROD, CHOKE

$2.49

$

In Stock, only 1 left!

0

24

Honda 16265-ZE2-721

STOPPER, CHOKE ROD

$2.99

$

Usually ships in 3-6 days

0

25

Honda 16268-ZE2-721

SPRING, MANUAL CHOKE

$3.99

$

Usually ships in 3-6 days

0

26

Honda 16269-ZA0-800

GASKET, AIR CLEANER

$2.49

$

In Stock, Qty 5

0

27

Honda 16400-ZE2-704

DIAPHRAGM ASSY.

$82.99

$

Usually ships in 3-6 days

0

28

Honda 16611-ZE2-711

ROD, CHOKE CONTROL

$8.49

$

Usually ships in 3-6 days

0

29

Honda 16613-893-000

GROMMET, CHOKE ROD

$3.99

$

In Stock, only 2 left!

0

30

Honda 16615-893-000

GUIDE, CHOKE ROD

$4.99

$

In Stock, only 1 left!

0

31

Honda 36135-ZF6-D41

VALVE, DASHPOT CHECK

$41.99

$

Usually ships in 3-6 days

0

32

Honda 53149-964-003

BUSH, ARM PIVOT

$8.49

$

Usually ships in 3-6 days

0

33

Honda 88911-MJ3-000

GROMMET, FENDER

$2.49

$

In Stock, Qty 5

0

34

Honda 90431-ZE2-700

WASHER, CHOKE LEVER

$3.99

$

Usually ships in 3-6 days

0

35

Honda 90432-ZE2-700

SEAL, CHOKE LEVER

$3.99

$

Usually ships in 3-6 days

0

36

Honda 90433-ZE2-700

WASHER, THRUST (2.7X8)

$3.99

$

Usually ships in 3-6 days

0

37

Honda 90434-ZE2-700

COLLAR, LEVER

$3.99

$

Usually ships in 3-6 days

0

38

Honda 93500-05012-0A

SCREW, PAN (5X12)

$1.49

$

In Stock, Qty 8

0

39

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 3 left!

0

40

Honda 94103-05000

WASHER, PLAIN (5MM)

$0.99

$

In Stock, only 3 left!

0

41

Honda 94540-02010

E-RING (2MM)

$1.99

$

In Stock, only 4 left!

0

42

Honda 94540-04010

E-RING (4MM)

$2.99

$

Usually ships in 3-6 days

0

43

Honda 94540-07010

E-RING (7MM)

$2.99

$

Usually ships in 3-6 days

0

44

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 5

0

45

Honda 95005-35008-10M

BULK HOSE, VACUUM (3.5X8000) (3.5X55)

$158.99

$

Usually ships in 3-6 days

0

46

Honda 95005-35008-10M

BULK HOSE, VACUUM (3.5X8000) (3.5X75)

$158.99

$

Usually ships in 3-6 days

0

47

Honda 99101-ZH8-0880

SEE PART DETAILS - PRI; JET, MAIN (#88)

Note: (Optional).

$7.99

$

In Stock, only 1 left!

0

47

Honda 99101-ZH8-0900

JET, MAIN (#90)

Note: (Optional).

$7.99

$

In Stock, only 2 left!

0

47

Honda 99101-ZH8-0920

JET, MAIN (#92)

$7.99

$

In Stock, only 1 left!

0

48

Honda 99204-ZE2-0400

JET SET, PILOT (#40)

$22.99

$

In Stock, only 2 left!

0
