GX270 QAW (GCAB) - Honda Engine, Made in Japan (SN: GCAB-1000001 - GCAB-1999999) MUFFLER (3) Parts Diagram

Engine, Made in Japan

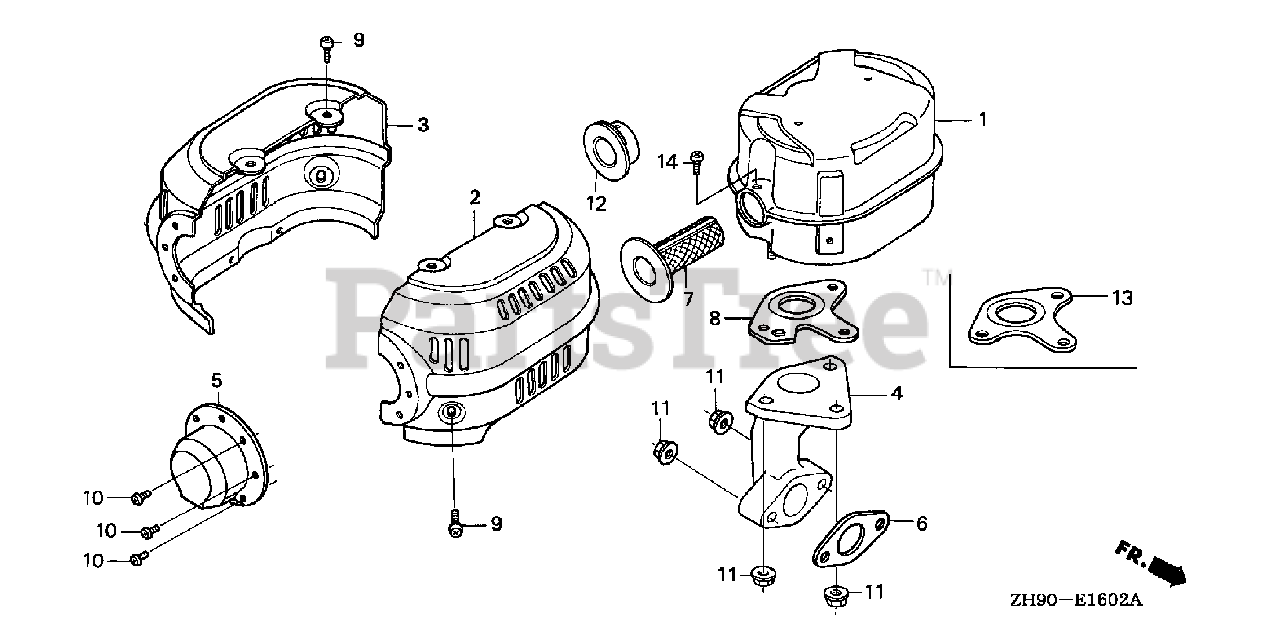

MUFFLER (3) Parts Diagram

  • Title
1

Honda 18310-ZE2-013

MUFFLER

Note: (Honda Code 2538478).

$91.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZE2-P30

PROTECTOR, R. MUFFLER (STD)

Note: (Honda Code 3828688).

$

$

Not available

3

Honda 18325-ZE2-P30

PROTECTOR, L. MUFFLER (STD)

Note: (Honda Code 3828696).

$56.99

$

Usually ships in 3-6 days

0

4

Honda 18330-ZE2-000

PIPE, EX.

Note: (Honda Code 2026219).

$70.99

$

In Stock, only 1 left!

0

5

Honda 18331-ZE2-810

CAP, MUFFLER

Note: (Honda Code 2026227).

$11.99

$

Usually ships in 3-6 days

0

6

Honda 18333-ZE3-800

GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

Note: (Honda Code 3520194).

$4.99

$

In Stock, Qty 20+

0

6

Honda 18333-ZK6-Y00

GASKET, EX. PIPE (WACKER)

Note: (Honda Code 5164199).

$4.99

$

In Stock, Qty 20+

0

7

Honda 18355-ZE2-010

ARRESTER, SPARK

Note: (Honda Code 2482594).

$25.99

$

Usually ships in 3-6 days

0

8

Honda 18381-ZE2-W10

GASKET, MUFFLER (ARRESTER)

Note: (Honda Code 3678802).

$12.99

$

In Stock, Qty 7

0

9

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

10

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Honda Code 1431121).

$1.49

$

In Stock, Qty 11

0

11

Honda 94050-08000

NUT, FLANGE (8MM)

Note: (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

14

Honda 90050-ZE1-000

SCREW, TAPPING (5X8)

Note: (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0
