GX270 PA2/A (GCAB) - Honda Engine, Made in Japan (SN: GCAB-2000001 - GCAB-9999999) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

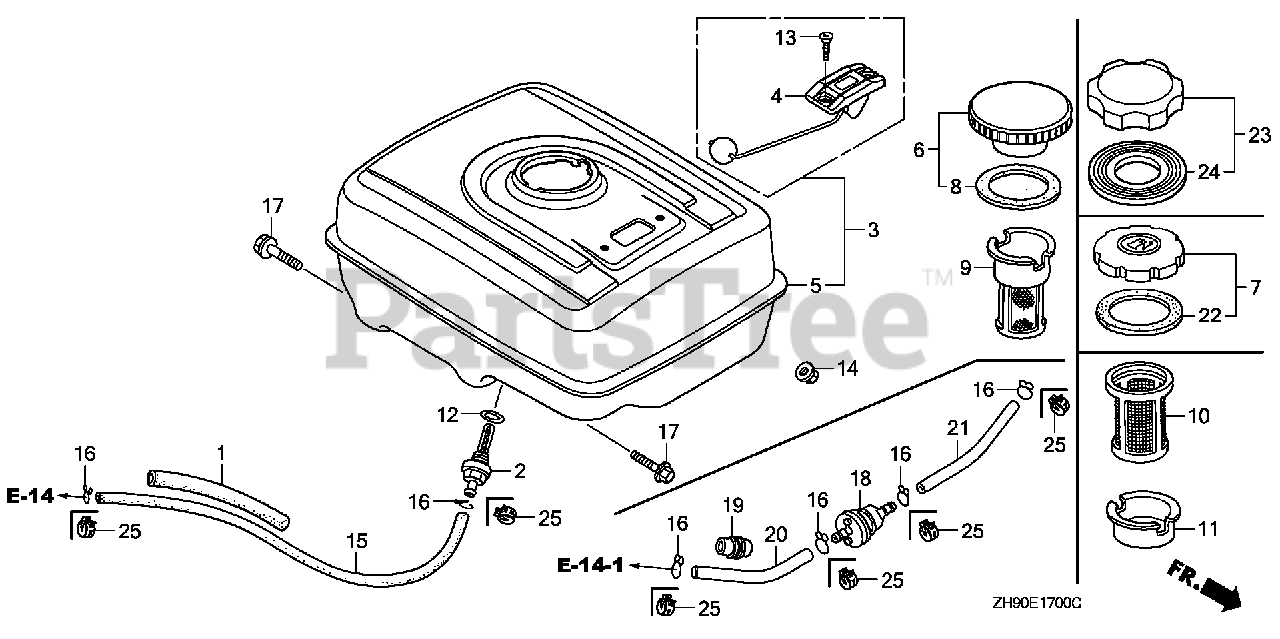

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, Qty 14

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

5

Honda 17510-ZE2-801ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH1* (BLACK)

$180.99

$

In Stock, only 1 left!

0

5

Honda 17510-ZE2-801ZC

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

$279.99

$

Usually ships in 3-6 days

0

7

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use up to Engine SN 2118570.

$

$

Not available

9

Honda 17672-ZE2-W01

FILTER, FUEL

$12.99

$

In Stock, only 3 left!

0

12

Honda 91353-671-003

O-RING (14MM) (ARAI)

$3.99

$

In Stock, Qty 20+

0

12

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 20+

0

14

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X222)

$54.99

$

In Stock, only 4 left!

0

16

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

17

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, only 4 left!

0

22

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: Use up to Engine SN 2118570.

$

$

Not available

23

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

Note: Use from Engine SN 2118571.

$

$

Not available

24

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
(Superseded to 17631-Z0T-813)

Note: Use from Engine SN 2118571.

$3.49

$

Usually ships in 3-6 days

0
