GX270 HEA2 (GCAB) - Honda Engine, Made in Japan (SN: GCAB-1000001 - GCAB-1999999) CRANKCASE COVER (2) Parts Diagram

Engine, Made in Japan

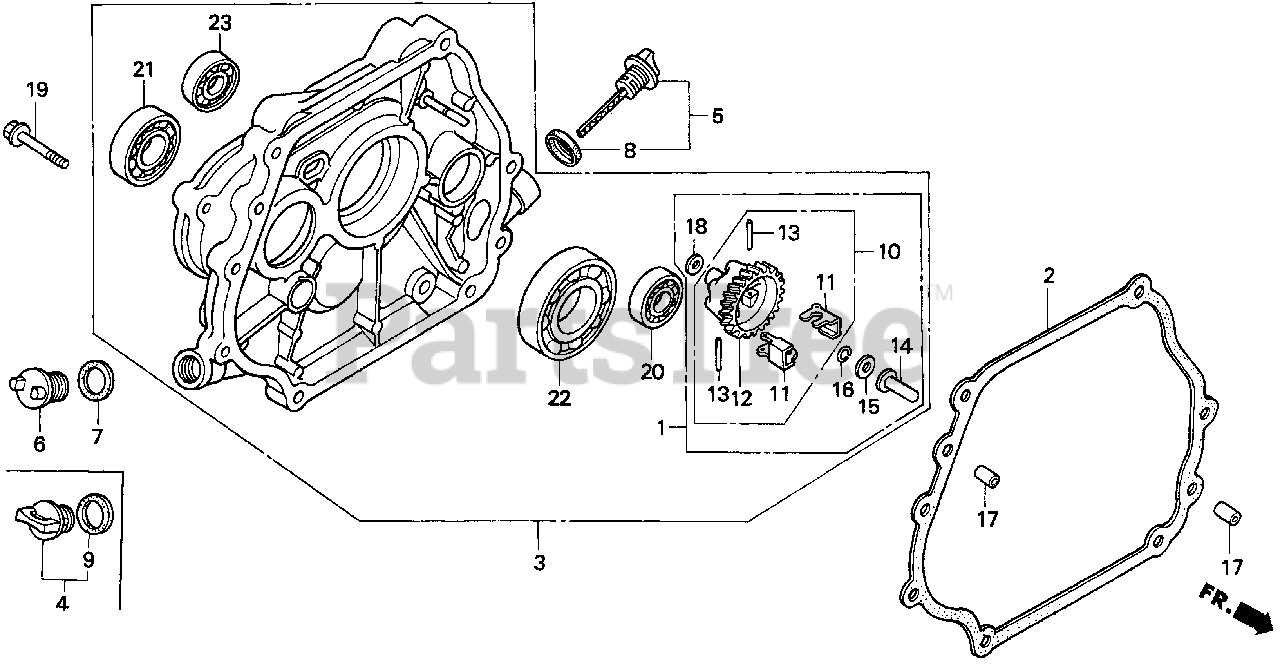

CRANKCASE COVER (2) Parts Diagram

  • Title

1

Honda 06165-ZE2-811

GOVERNOR KIT (BALANCER)
(Superseded to 06165-ZE2-813)

Note: (Optional). (Honda Code 3689460).

$20.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE2-812

GOVERNOR KIT (BALANCER)
(Superseded to 06165-ZE2-813)

Note: (Optional). (Honda Code 7086382).

$20.99

$

Usually ships in 3-6 days

0

1

Honda 06165-ZE2-813

GOVERNOR KIT (BALANCER)

Note: (Optional). (Honda Code 7158785).

$20.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE2-800

GASKET, CASE COVER
(Superseded to 11381-ZE2-801)

Note: Use up to Engine SN 1641019. (Honda Code 3678505).

$12.99

$

In Stock, only 3 left!

0

2

Honda 11381-ZE2-801

GASKET, CASE COVER

Note: (Honda Code 6436851).

$12.99

$

In Stock, only 3 left!

0

3

Honda 11400-ZE2-621

COVER ASSY., CRANKCASE (H-TYPE)(BALANCER)
(Superseded to 11400-ZE2-623)

Note: (Honda Code 3689502).

$260.99

$

Usually ships in 3-6 days

0

3

Honda 11400-ZE2-623

COVER ASSY., CRANKCASE (H-TYPE)(BALANCER)

Note: (Honda Code 7185598).

$260.99

$

Usually ships in 3-6 days

0

4

Honda 15600-ZG4-003

CAP ASSY., OIL FILLER

Note: (Honda Code 4497921).

$7.49

$

In Stock, only 1 left!

0

5

Honda 15600-735-003

CAP ASSY., OIL FILLER

Note: (Honda Code 4523106).

$9.49

$

In Stock, Qty 9

0

8

Honda 15625-ZE1-000

GASKET, OIL FILLER CAP
(Superseded to 15625-ZE1-003)

Note: (Honda Code 1427079).

$3.99

$

In Stock, only 3 left!

0

8

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

Note: (Honda Code 4497947).

$3.99

$

In Stock, only 3 left!

0

9

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

Note: (Honda Code 4497947).

$3.99

$

In Stock, only 3 left!

0

10

Honda 16510-ZE2-811

GOVERNOR ASSY. (BALANCER)

Note: (Honda Code 3690005).

$29.99

$

Usually ships in 3-6 days

0

11

Honda 16511-ZE2-000

WEIGHT, GOVERNOR

Note: (Honda Code 2025955).

$4.49

$

Usually ships in 3-6 days

0

12

Honda 16512-ZE2-811

HOLDER, GOVERNOR WEIGHT

Note: (Honda Code 3682010).

$20.99

$

Usually ships in 3-6 days

0

13

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

Note: (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

14

Honda 16531-ZE2-000

SLIDER, GOVERNOR
(Superseded to 16531-Z0A-000)

Note: (Honda Code 2025989).

$3.99

$

In Stock, only 2 left!

0

14

Honda 16531-Z0A-000

SLIDER, GOVERNOR

Note: (Honda Code 6605117).

$3.99

$

In Stock, only 2 left!

0

16

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

Note: (Optional). (Honda Code 2456697).

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90602-896-000

CLIP, GOVERNOR HOLDER

Note: (Optional). (Honda Code 0928101).

$1.99

$

Usually ships in 3-6 days

0

17

Honda 90701-HC4-000

PIN, DOWEL (8X12)

Note: (Honda Code 2978443).

$3.99

$

In Stock, only 2 left!

0

18

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

19

Honda 95701-08035-00

BOLT, FLANGE (8X35)

Note: (Honda Code 2724029).

$3.49

$

In Stock, Qty 9

0

20

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

Note: (Honda Code 0708941).

$13.99

$

In Stock, only 3 left!

0

21

Honda 96100-62040-00

BEARING, RADIAL BALL (6204)

Note: (Honda Code 0674390).

$17.99

$

In Stock, only 2 left!

0

22

Honda 96100-62060-00

BEARING, RADIAL BALL (6206)

Note: (Honda Code 0636118).

$33.99

$

In Stock, only 1 left!

0

23

Honda 96100-63020-00

BEARING, RADIAL BALL (6302)

Note: (Honda Code 0834176).

$12.99

$

Usually ships in 3-6 days

0
