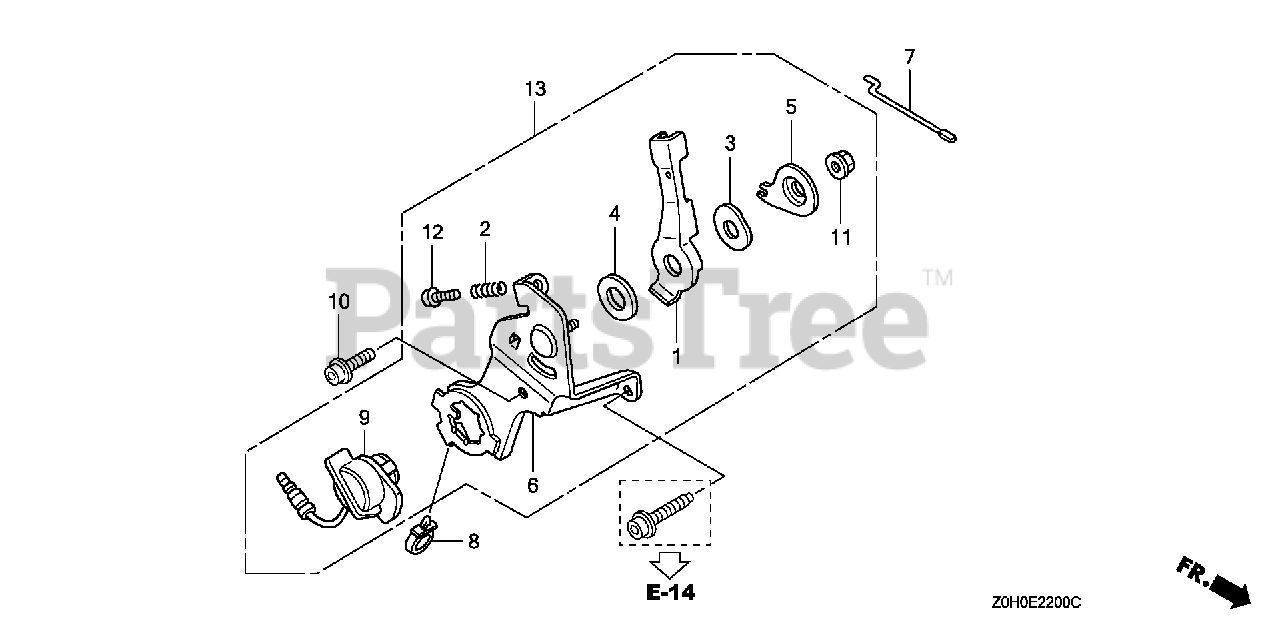

GX25 WA/A (GCAAM) - Honda Engine, Made in Japan (SN: GCAAM-1200001 - GCAAM-9999999) CONTROL Parts Diagram
Engine, Made in Japan
CONTROL Parts Diagram
Honda 16571-Z0H-800
LEVER, CONTROL
$10.99
$
Usually ships in 3-6 days
Honda 16571-892-000
SPRING, CONTROL ADJUSTING
$2.49
$
In Stock, Qty 5
Honda 16574-ZE1-000
SPRING, LEVER
$4.49
$
In Stock, only 1 left!
Honda 16578-ZE1-000
SPACER, CONTROL LEVER
$5.49
$
In Stock, only 4 left!
Honda 16575-ZH8-000
WASHER, CONTROL LEVER
$5.99
$
Usually ships in 3-6 days
Honda 16580-Z0H-800
BASE, CONTROL
$9.49
$
Usually ships in 3-6 days
Honda 17841-Z0H-800
ROD, THROTTLE
$2.49
$
In Stock, Qty 5
Honda 30701-883-000
SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)
$3.99
$
In Stock, only 1 left!
Honda 35120-Z0D-V81
SWITCH ASSY., ENGINE STOP
$20.99
$
In Stock, only 2 left!
Honda 90011-Z0H-801
BOLT, SOCKET (5X10)
$1.49
$
Usually ships in 3-6 days
Honda 90114-SA0-000
NUT, SELF-LOCK (6MM)
$4.49
$
In Stock, Qty 20+
Honda 93500-05025-0A
SCREW, PAN (5X25)
$1.49
$
Usually ships in 3-6 days
Honda 16500-Z0H-801
CONTROL ASSY.
$52.99
$
Usually ships in 3-6 days
