GX25 T HUT (GCANT) - Honda Engine, Made in Thailand (SN: GCANT-2000001 - GCANT-9999999) CRANKSHAFT + PISTON Parts Diagram

Engine, Made in Thailand

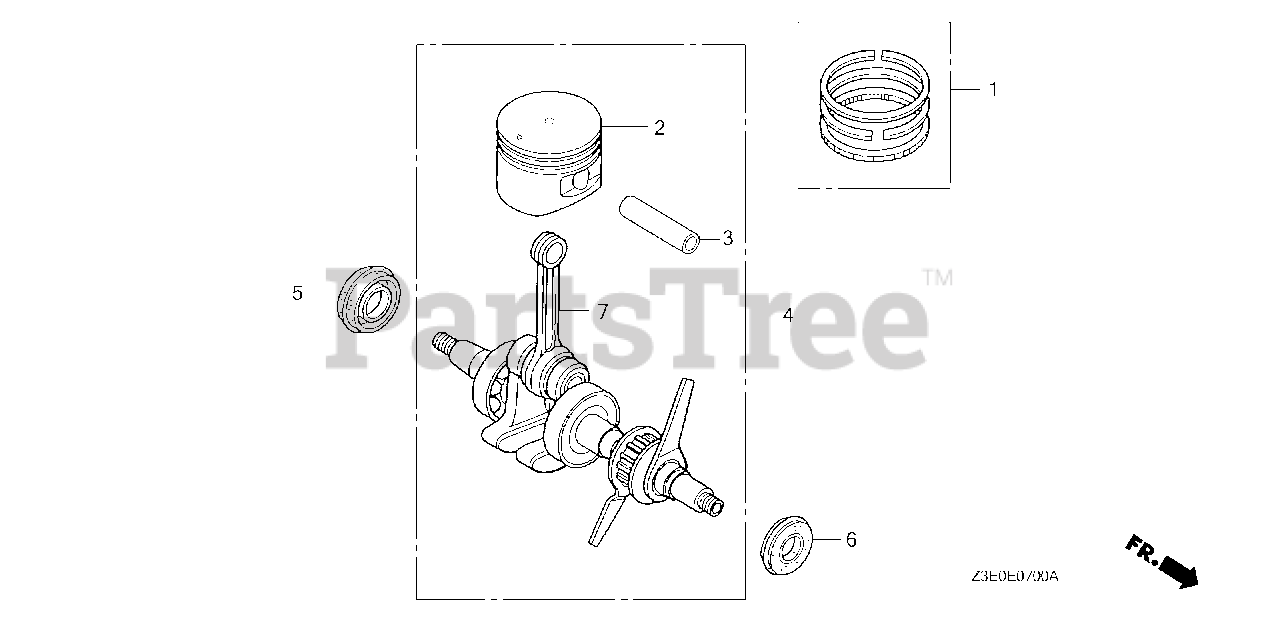

CRANKSHAFT + PISTON Parts Diagram

  • Title

1

Honda 13010-Z0H-000

RING SET, PISTON

$14.99

$

Usually ships in 3-6 days

0

1

Honda 13010-Z3E-003

RING SET, PISTON (TPR)

Note: Use from Engine SN 1179040.

$12.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z0H-010

SEE PART DETAILS - SUP; PISTON
(Superseded to 13101-Z3E-000)

Note: Use up to Engine SN 1114861.

$22.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z3E-000

SEE PART DETAILS - PRI; PISTON (STD)

$22.99

$

Usually ships in 3-6 days

0

3

Honda 13111-Z0H-000

PIN, PISTON

$3.99

$

In Stock, only 1 left!

0

4

Honda 13310-Z0H-030

SEE PART DETAILS - SUP; CRANKSHAFT
(Superseded to 13310-Z3E-000)

Note: Use up to Engine SN 1114861.

$70.99

$

Usually ships in 3-6 days

0

4

Honda 13310-Z3E-000

SEE PART DETAILS - PRI; CRANKSHAFT

$70.99

$

Usually ships in 3-6 days

0

5

Honda 91211-Z3E-003

SEE PART DETAILS - PRI; OIL SEAL (12X24X5)

$1.49

$

In Stock, only 4 left!

0

6

Honda 91212-Z3E-000

OIL SEAL (10X20X5) (NA USE ALT:91212-Z3E-003)

Note: Use up to Engine SN 1001280.

$

$

Currently unavailable

6

Honda 91212-Z3E-003

OIL SEAL (10X20X5)

Note: Use from Engine SN 1001281.

$1.99

$

In Stock, only 2 left!

0

7

Honda 13310-Z0H-305

CRANKSHAFT
(Superseded to 13310-Z3E-305)

Note: (Optional). Use up to Engine SN 1114861.

$122.99

$

Usually ships in 3-6 days

0

7

Honda 13310-Z3E-305

CRANKSHAFT

Note: (Optional). Use from Engine SN 1114862.

$122.99

$

Usually ships in 3-6 days

0
