GX25 T HUT (GCANT) - Honda Engine, Made in Thailand (SN: GCANT-2000001 - GCANT-9999999) CRANKCASE SET Parts Diagram

Engine, Made in Thailand

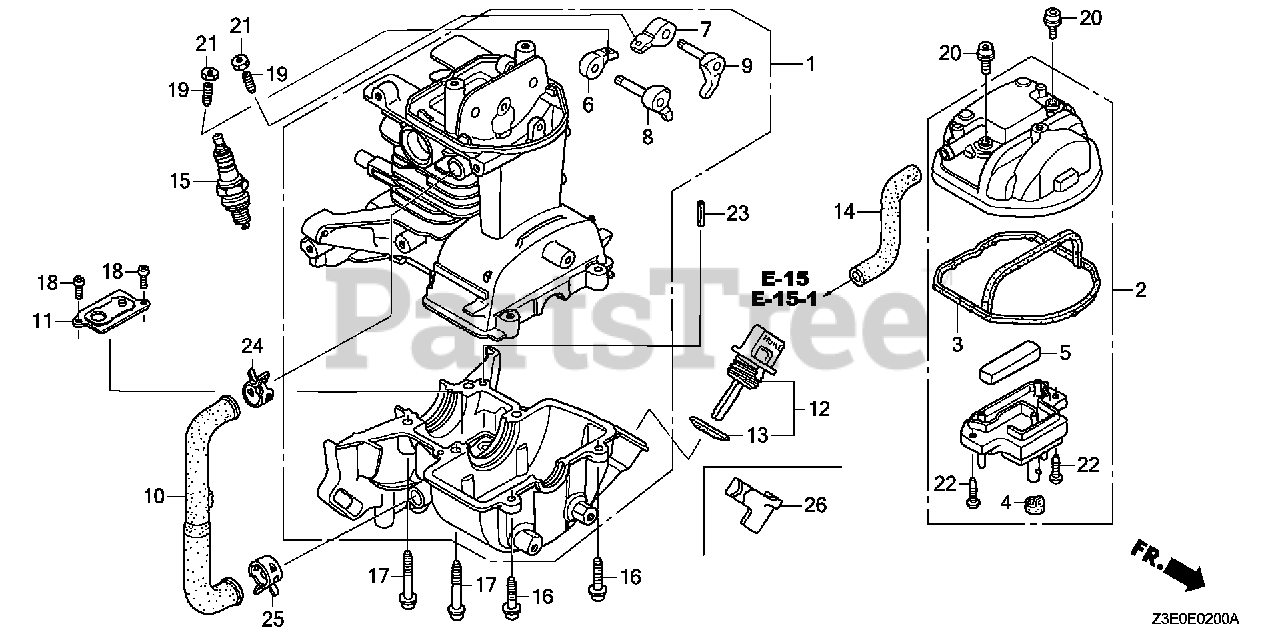

CRANKCASE SET Parts Diagram

  • Title
1

Honda 10100-Z3E-405

CRANKCASE SET
(Superseded to 10100-Z3E-415)

$116.99

$

Usually ships in 3-6 days

0

2

Honda 12310-Z0H-010

SEE PART DETAILS - PRI; COVER, CYLINDER HEAD

$44.99

$

Usually ships in 3-6 days

0

3

Honda 12312-Z0H-300

SEAL, HEAD COVER

$10.99

$

In Stock, only 1 left!

0

4

Honda 12314-Z0H-300

GROMMET, HEAD COVER

$1.49

$

Usually ships in 3-6 days

0

5

Honda 12367-Z0H-000

FILTER, BREATHER

$3.99

$

In Stock, Qty 10

0

6

Honda 14431-Z0H-003

ARM, IN. VALVE ROCKER

$9.99

$

In Stock, only 2 left!

0

7

Honda 14441-Z0H-003

ARM, EX. VALVE ROCKER

$16.99

$

In Stock, only 1 left!

0

8

Honda 14730-Z0H-000

LIFTER, IN. VALVE

$15.99

$

Usually ships in 3-6 days

0

9

Honda 14740-Z0H-000

LIFTER, EX. VALVE

$21.99

$

Usually ships in 3-6 days

0

10

$9.99

$

Usually ships in 3-6 days

0

11

Honda 15510-Z3E-000

PLATE ASSY., OIL OUTLET VALVE

$8.49

$

Usually ships in 3-6 days

0

12

Honda 15600-Z0T-800

CAP ASSY., OIL FILLER

$6.99

$

In Stock, only 1 left!

0

13

Honda 15625-Z0T-800

GASKET, OIL FILLER CAP

$4.99

$

In Stock, Qty 20+

0

14

Honda 15721-Z0H-000

TUBE, BREATHER

$5.99

$

Usually ships in 3-6 days

0

15

Honda 31914-Z0H-003

SPARK PLUG (CMR4H) (NGK)

Note: (Optional).

$4.99

$

In Stock, Qty 11

0

15

Honda 31915-Z0H-003

SPARK PLUG (CMR5H) (NGK)

$4.99

$

In Stock, Qty 20+

0

15

Honda 31916-Z0H-003

SPARK PLUG (CMR6H) (NGK)

Note: (Optional).

$4.99

$

In Stock, Qty 20+

0

16

Honda 90009-Z0H-003

BOLT, SOCKET (5X20)

$0.99

$

In Stock, Qty 6

0

17

Honda 90010-Z0H-003

BOLT, SOCKET (5X30)

$1.49

$

In Stock, Qty 5

0

18

Honda 90013-Z0H-004

SCREW, PAN (4X8)

Note: Use up to Engine SN 1001280.

$0.99

$

Usually ships in 3-6 days

0

18

Honda 90013-Z3E-003

SCREW, PAN (4X8)

Note: Use from Engine SN 1001281.

$0.99

$

Usually ships in 3-6 days

0

19

Honda 90017-Z0H-000

SCREW, TAPPET ADJUSTING

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90019-Z0H-003

BOLT, SOCKET (5X12)

$0.99

$

Usually ships in 3-6 days

0

21

Honda 90206-ZM3-000

NUT, TAPPET ADJUSTING

$1.49

$

In Stock, only 1 left!

0

22

Honda 93901-34320

SCREW, TAPPING (4X12)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94305-40102

PIN, SPRING (4X10)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 95002-41200-08

CLAMP, TUBE (D12)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 95002-41300-04

CLAMP, TUBE (D13)

$4.99

$

Usually ships in 3-6 days

0
