GX25 T HET (GCANT) - Honda Engine, Made in Thailand (SN: GCANT-3000001 - GCANT-3499999) FUEL TANK (1) Parts Diagram

Engine, Made in Thailand

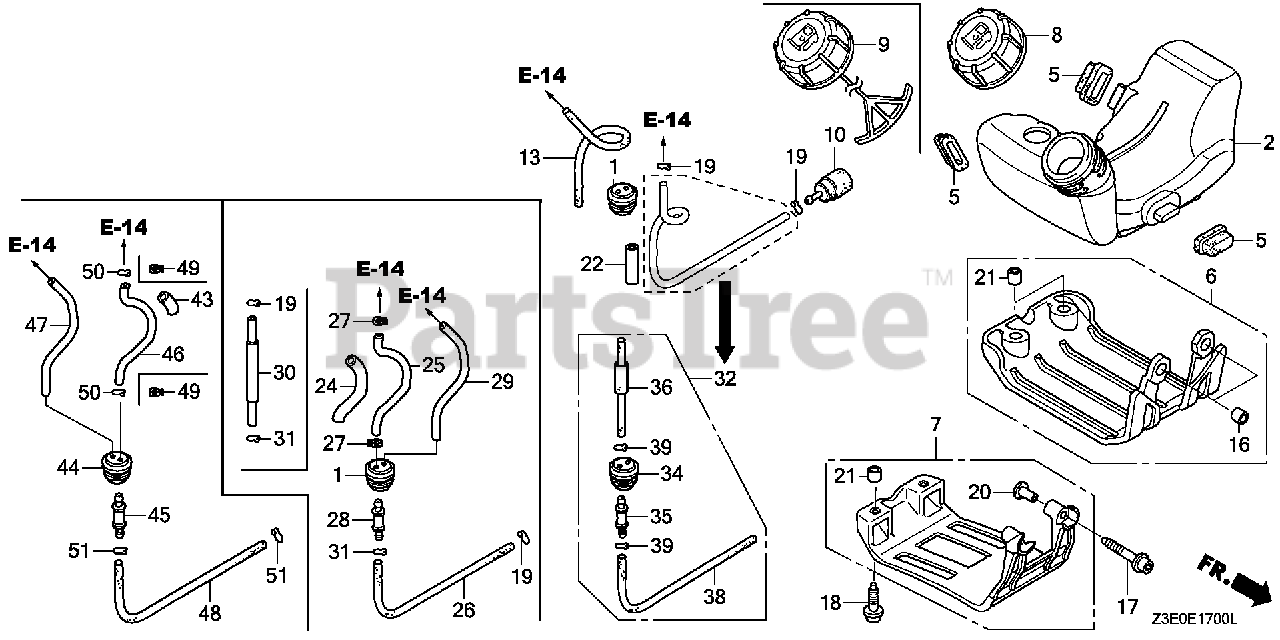

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

Note: Use up to Engine SN 3017922.

$4.49

$

In Stock, Qty 18

0

2

Honda 17511-Z0H-305

SEE PART DETAILS - PRI; TANK, FUEL (FOR U.S.A.)

$33.99

$

Usually ships in 3-6 days

0

5

Honda 17533-Z0H-000

RUBBER, TANK MOUNTING

$1.99

$

In Stock, Qty 20+

0

6

Honda 17555-Z0H-V00ZA

GUARD, TANK *T93* (HUSQVARNA ONLY) (HUSQVARNA GRAY)

$22.99

$

Usually ships in 3-6 days

0

9

Honda 17620-ZM3-817

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK
(Superseded to 17620-ZM3-818)

$14.99

$

In Stock, Qty 5

0

9

Honda 17620-ZM3-818

CAP ASSY., FUEL TANK

$14.99

$

In Stock, Qty 5

0

10

Honda 17672-Z0H-003

SEE PART DETAILS - PRI; FILTER, FUEL

$6.99

$

In Stock, only 2 left!

0

13

Honda 17702-Z0H-003

TUBE, FUEL RETURN

Note: Use up to Engine SN 3012800.

$2.49

$

In Stock, only 4 left!

0

16

Honda 33609-GK4-620

COLLAR, FR. TURN SIGNAL

$3.49

$

In Stock, only 1 left!

0

18

Honda 90018-Z0H-003

BOLT, SOCKET (5X16)

$0.99

$

In Stock, only 3 left!

0

19

Honda 91401-ZM3-003

CLIP, TUBE

Note: Use up to Engine SN 3017922.

$1.99

$

In Stock, only 3 left!

0

21

Honda 91506-ZM3-000

COLLAR A, HEAD COVER

$1.99

$

In Stock, only 4 left!

0

22

Honda 16865-Z6J-000

PROTECTOR, TUBE

Note: Use up to Engine SN 3012800.

$0.99

$

In Stock, only 2 left!

0

26

Honda 17703-Z0H-J71

TUBE A, FUEL

Note: Use from Engine SN 3012801 to 3017922.

$11.99

$

In Stock, only 2 left!

0

28

Honda 17519-ZM5-003

FITTING

Note: Use from Engine SN 3012801 to 3017922.

$5.99

$

In Stock, Qty 19

0

29

Honda 17702-Z0H-003

TUBE, FUEL RETURN

Note: Use from Engine SN 3012801 to 3017922.

$2.49

$

In Stock, only 4 left!

0

30

Honda 17701-Z0H-800

TUBE, FUEL FEED
(Superseded to 17701-Z3E-305)

Note: Use from Engine SN 3012801 to 3017922.

$5.99

$

Usually ships in 3-6 days

0

30

Honda 17701-Z3E-305

SEE PART DETAILS - PRI; TUBE, FUEL FEED

Note: Use from Engine SN 3012801 to 3017922.

$5.99

$

Usually ships in 3-6 days

0

31

Honda 91401-ZM3-003

CLIP, TUBE

Note: Use from Engine SN 3012801 to 3017922.

$1.99

$

In Stock, only 3 left!

0

32

Honda 17700-Z0H-305

GROMMET ASSY., FUEL TANK

Note: Use up to Engine SN 3012800.

$

$

Not available

34

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

Note: (Optional).Use up to Engine SN 3012800.

$4.49

$

In Stock, Qty 18

0

35

Honda 17519-ZM5-003

FITTING

Note: (Optional).Use up to Engine SN 3012800.

$5.99

$

In Stock, Qty 19

0

36

Honda 17701-Z0H-800

TUBE, FUEL FEED
(Superseded to 17701-Z3E-305)

Note: (Optional).Use up to Engine SN 3012800.

$5.99

$

Usually ships in 3-6 days

0

36

Honda 17701-Z3E-305

SEE PART DETAILS - PRI; TUBE, FUEL FEED

Note: (Optional).Use up to Engine SN 3012800.

$5.99

$

Usually ships in 3-6 days

0

38

Honda 17703-Z0H-J71

TUBE A, FUEL

Note: (Optional).Use up to Engine SN 3012800.

$11.99

$

In Stock, only 2 left!

0

39

Honda 91401-ZM3-003

CLIP, TUBE

Note: (Optional).Use up to Engine SN 3012800.

$1.99

$

In Stock, only 3 left!

0

43

Honda 16865-Z6J-010

PROTECTOR, TUBE

Note: Use from Engine SN 3017923.

$2.99

$

In Stock, only 2 left!

0

44

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

Note: Use from Engine SN 3017923.

$4.49

$

In Stock, Qty 18

0

45

Honda 17519-ZM5-003

FITTING

Note: Use from Engine SN 3017923.

$5.99

$

In Stock, Qty 19

0

46

Honda 17701-Z0H-801

TUBE, FUEL FEED

Note: Use from Engine SN 3017923.

$4.99

$

Usually ships in 3-6 days

0

47

Honda 17702-Z0H-003

TUBE, FUEL RETURN

Note: Use from Engine SN 3017923.

$2.49

$

In Stock, only 4 left!

0

48

Honda 17703-Z0H-J71

TUBE A, FUEL

Note: Use from Engine SN 3017923.

$11.99

$

In Stock, only 2 left!

0

50

Honda 91401-Z3E-000

CLIP, TUBE (B1 5)

Note: Use from Engine SN 3017923.

$0.99

$

In Stock, Qty 8

0

51

Honda 91401-Z3E-000

CLIP, TUBE (B1 5)

Note: Use from Engine SN 3017923.

$0.99

$

In Stock, Qty 8

0
