GX25 NT W3 (GCART) - Honda Engine, Made in Thailand (SN: GCART-1000001 - GCART-1999999) RECOIL STARTER Parts Diagram

Engine, Made in Thailand

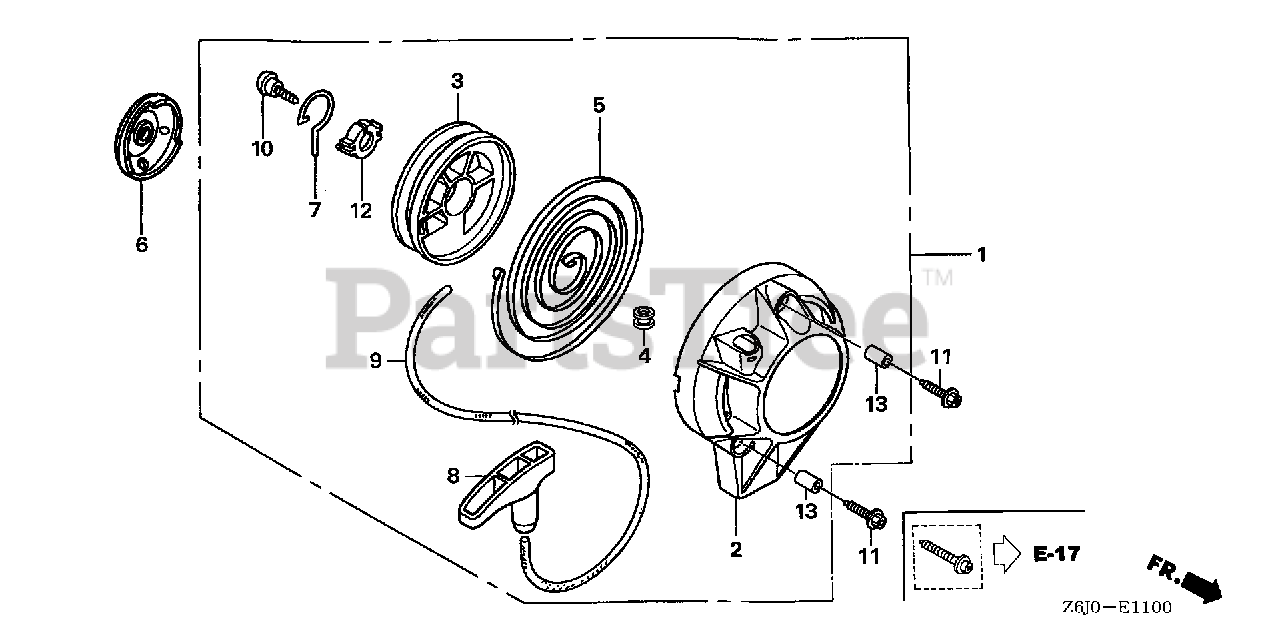

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-Z3E-M01

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL
(Superseded to 28400-Z0H-315)

$10.99

$

In Stock, only 1 left!

0

2

Honda 28414-Z0H-003

CASE, RECOIL STARTER

$18.99

$

Usually ships in 3-6 days

0

3

Honda 28421-Z0H-003

REEL, RECOIL STARTER

$8.49

$

In Stock, only 1 left!

0

4

Honda 28433-ZM3-003

GUIDE, ROPE

$2.49

$

In Stock, only 4 left!

0

5

Honda 28442-Z0H-003

SPRING, RECOIL STARTER

$14.99

$

In Stock, Qty 5

0

6

Honda 28451-Z0H-003

PULLEY, RECOIL STARTER

$4.99

$

In Stock, Qty 9

0

7

Honda 28459-Z0H-003

SWINGARM

$4.49

$

Usually ships in 3-6 days

0

8

Honda 28461-ZM3-003

KNOB, RECOIL STARTER

Note: Use up to Engine SN 1284310.

$4.99

$

Usually ships in 3-6 days

0

8

Honda 28461-Z3F-M01

KNOB, RECOIL STARTER

Note: Use from Engine SN 1284311.

$8.99

$

Usually ships in 3-6 days

0

9

Honda 28462-ZM3-003

ROPE, RECOIL STARTER (#3.5X40")

$6.49

$

In Stock, only 1 left!

0

10

Honda 90012-ZM3-003

SCREW, SETTING

$2.49

$

In Stock, Qty 5

0

11

Honda 90018-Z0H-003

BOLT, SOCKET (5X16)

Note: Use up to Engine SN 1276014.

$0.99

$

In Stock, only 3 left!

0

11

Honda 90018-Z3E-901

BOLT, SOCKET (5X16)

Note: Use from Engine SN 1276015.

$4.99

$

Usually ships in 3-6 days

0

12

Honda 91504-ZM3-003

COLLAR

$1.99

$

In Stock, only 3 left!

0

13

Honda 91506-ZM3-000

COLLAR A, HEAD COVER

$1.99

$

In Stock, only 4 left!

0
