GX25 NT SGT9 (GCART) - Honda Engine, Made in Thailand (SN: GCART-1000001 - GCART-9999999) FUEL TANK Parts Diagram

Engine, Made in Thailand

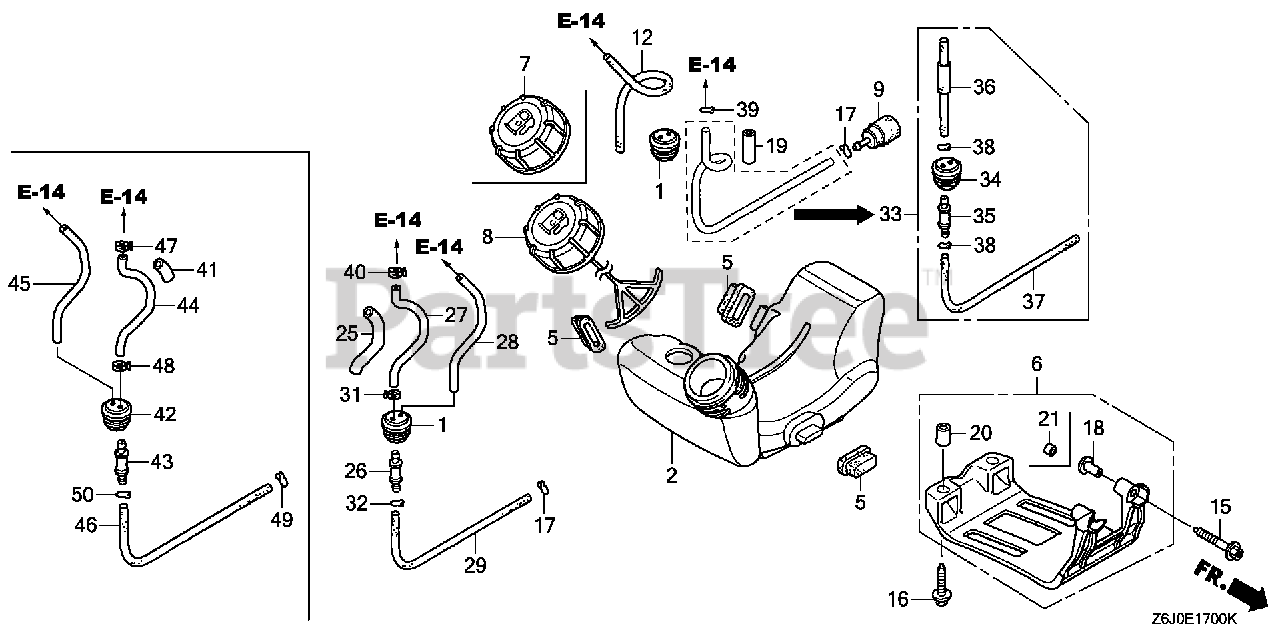

FUEL TANK Parts Diagram

  • Title

1

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

Note: Use up to Engine SN 1333626.

$4.49

$

In Stock, Qty 18

0

2

Honda 17511-Z0H-023

SEE PART DETAILS - SUP; TANK, FUEL
(Superseded to 17511-Z0H-305)

Note: Use up to Engine SN 1038979.

$33.99

$

Usually ships in 3-6 days

0

2

Honda 17511-Z0H-305

SEE PART DETAILS - PRI; TANK, FUEL (FOR U.S.A.)

$33.99

$

Usually ships in 3-6 days

0

2

Honda 17511-Z0H-305

SEE PART DETAILS - PRI; TANK, FUEL (FOR U.S.A.)

Note: Use up to Engine SN 1038979.

$33.99

$

Usually ships in 3-6 days

0

2

Honda 17511-Z6J-831

TANK, FUEL

Note: Use from Engine SN 1038980 to 1161187.

$52.99

$

In Stock, only 1 left!

0

2

Honda 17511-Z6J-831

TANK, FUEL

Note: Use from Engine SN 1161188 to 1333626.

$52.99

$

In Stock, only 1 left!

0

2

Honda 17511-Z6J-831

TANK, FUEL

Note: Use from Engine SN 1333627.

$52.99

$

In Stock, only 1 left!

0

5

Honda 17533-Z0H-000

RUBBER, TANK MOUNTING

$1.99

$

In Stock, Qty 20+

0

8

Honda 17620-ZM3-816

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZM3-817)

$12.99

$

Usually ships in 3-6 days

0

8

Honda 17620-ZM3-817

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK
(Superseded to 17620-ZM3-818)

$14.99

$

In Stock, Qty 5

0

9

Honda 17672-Z0H-003

FILTER, FUEL

$6.99

$

In Stock, only 2 left!

0

12

Honda 17702-Z0H-003

TUBE, FUEL RETURN

Note: Use up to Engine SN 1235594.

$2.49

$

In Stock, only 4 left!

0

17

Honda 91401-ZM3-003

CLIP, TUBE

Note: Use up to Engine SN 1333626.

$1.99

$

In Stock, only 3 left!

0

19

Honda 16865-Z6J-000

PROTECTOR, TUBE

$0.99

$

In Stock, only 2 left!

0

25

Honda 16865-Z6J-000

PROTECTOR, TUBE

Note: Use from Engine SN 1235595 to 1333626.

$0.99

$

In Stock, only 2 left!

0

26

Honda 17519-Z6J-003

JOINT, FUEL TANK

Note: Use from Engine SN 1235595 to 1333626.

$2.49

$

In Stock, Qty 8

0

27

Honda 17701-Z6J-003

SEE PART DETAILS - SUP; TUBE, FUEL
(Superseded to 17701-Z6J-305)

Note: Use from Engine SN 1235595 to 1333626.

$6.99

$

In Stock, Qty 7

0

27

Honda 17701-Z6J-305

SEE PART DETAILS - PRI; TUBE, FUEL

Note: Use from Engine SN 1235595 to 1333626.

$6.99

$

In Stock, Qty 7

0

28

Honda 17702-Z0H-003

TUBE, FUEL RETURN

Note: Use from Engine SN 1235595 to 1333626.

$2.49

$

In Stock, only 4 left!

0

29

Honda 17703-Z0H-J71

TUBE A, FUEL

Note: Use from Engine SN 1235595 to 1333626.

$11.99

$

In Stock, only 2 left!

0

30

Honda 90601-Z6J-003

CLAMP, TUBE

Note: Use from Engine SN 1235595.

$0.99

$

In Stock, only 3 left!

0

31

Honda 90601-Z6J-003

CLAMP, TUBE

Note: Use from Engine SN 1235595 to 1333626.

$0.99

$

In Stock, only 3 left!

0

32

Honda 91401-ZM3-003

CLIP, TUBE

Note: Use from Engine SN 1235595 to 1333626.

$1.99

$

In Stock, only 3 left!

0

33

Honda 17700-Z0H-305

GROMMET ASSY., FUEL TANK

Note: Use up to Engine SN 1235594.

$

$

Not available

34

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

Note: (Optional). Use up to Engine SN 1235594.

$4.49

$

In Stock, Qty 18

0

35

Honda 17519-ZM5-003

FITTING

Note: (Optional). Use up to Engine SN 1235594.

$5.99

$

In Stock, Qty 19

0

36

Honda 17701-Z3E-305

SEE PART DETAILS - PRI; TUBE, FUEL FEED

Note: (Optional). Use up to Engine SN 1235594.

$5.99

$

Usually ships in 3-6 days

0

37

Honda 17703-Z0H-J71

TUBE A, FUEL

Note: (Optional). Use up to Engine SN 1235594.

$11.99

$

In Stock, only 2 left!

0

38

Honda 91401-ZM3-003

CLIP, TUBE

Note: (Optional). Use up to Engine SN 1235594.

$1.99

$

In Stock, only 3 left!

0

39

Honda 91401-ZM3-003

CLIP, TUBE

Note: Use up to Engine SN 1235594.

$1.99

$

In Stock, only 3 left!

0

40

Honda 90601-Z6J-003

CLAMP, TUBE

Note: Use from Engine SN 1235595 to 1333626.

$0.99

$

In Stock, only 3 left!

0

41

Honda 16865-Z6J-010

PROTECTOR, TUBE

Note: Use from Engine SN 1333627.

$2.99

$

In Stock, only 2 left!

0

42

Honda 17504-ZM3-003

GROMMET, FUEL TUBE

Note: Use from Engine SN 1333627.

$4.49

$

In Stock, Qty 18

0

43

Honda 17519-Z6J-003

JOINT, FUEL TANK

Note: Use from Engine SN 1333627.

$2.49

$

In Stock, Qty 8

0

44

Honda 17701-Z6J-013

TUBE, FUEL

Note: Use from Engine SN 1333627.

$

$

Not available

45

Honda 17702-Z0H-003

TUBE, FUEL RETURN

Note: Use from Engine SN 1333627.

$2.49

$

In Stock, only 4 left!

0

46

Honda 17703-Z0H-J71

TUBE A, FUEL

Note: Use from Engine SN 1333627.

$11.99

$

In Stock, only 2 left!

0

47

Honda 90601-Z6J-801

CLAMP, TUBE (D5.5)

Note: Use from Engine SN 1333627.

$0.99

$

In Stock, Qty 10

0

48

Honda 90601-Z6J-801

CLAMP, TUBE (D5.5)

Note: Use from Engine SN 1333627.

$0.99

$

In Stock, Qty 10

0

49

Honda 91401-Z3E-000

CLIP, TUBE (B1 5)

Note: Use from Engine SN 1333627.

$0.99

$

In Stock, Qty 8

0

50

Honda 91401-Z3E-000

CLIP, TUBE (B1 5)

Note: Use from Engine SN 1333627.

$0.99

$

In Stock, Qty 8

0
