GX25 N ST3 (GCADK) - Honda Engine, Made in Japan (SN: GCADK-1000001 - GCADK-9999999) RECOIL STARTER Parts Diagram

Engine, Made in Japan

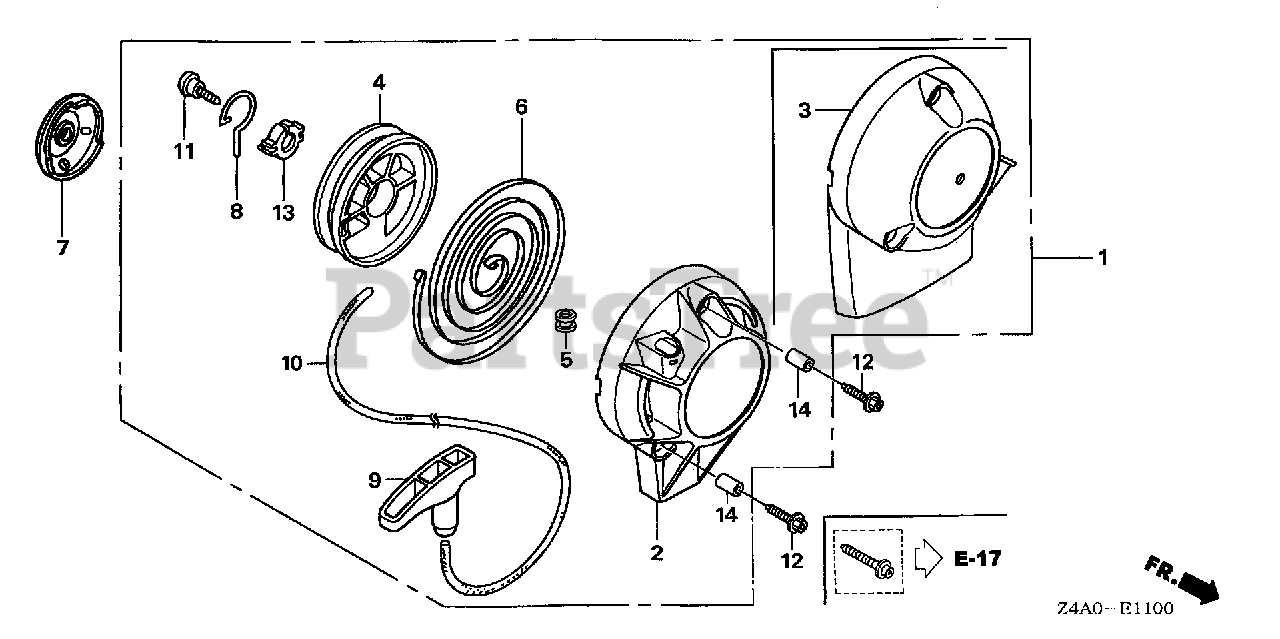

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-Z0H-003

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL
(Superseded to 28400-Z3E-M01)

$10.99

$

In Stock, only 1 left!

0

1

Honda 28400-Z0H-305

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL (FOR U.S.A.)
(Superseded to 28400-Z3E-M01)

$10.99

$

In Stock, only 1 left!

0

1

Honda 28400-Z0H-315

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL (FOR U.S.A.)
(Superseded to 28400-Z3E-M01)

$10.99

$

In Stock, only 1 left!

0

1

Honda 28400-Z3E-M01

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL
(Superseded to 28400-Z0H-315)

$10.99

$

In Stock, only 1 left!

0

2

Honda 28414-Z0H-003

CASE, RECOIL STARTER

$17.99

$

Usually ships in 3-6 days

0

4

Honda 28421-Z0H-003

REEL, RECOIL STARTER

$7.99

$

In Stock, only 1 left!

0

5

Honda 28433-ZM3-003

GUIDE, ROPE

$2.49

$

In Stock, only 4 left!

0

6

Honda 28442-Z0H-003

SPRING, RECOIL STARTER

$13.99

$

In Stock, Qty 5

0

7

Honda 28451-Z0H-003

PULLEY, RECOIL STARTER

$4.49

$

In Stock, Qty 10

0

8

Honda 28459-Z0H-003

SWINGARM

$4.49

$

Usually ships in 3-6 days

0

9

Honda 28461-ZM3-003

KNOB, RECOIL STARTER

$4.49

$

Usually ships in 3-6 days

0

10

Honda 28462-ZM3-003

ROPE, RECOIL STARTER

$5.99

$

In Stock, only 1 left!

0

11

Honda 90012-ZM3-003

SCREW, SETTING

$1.99

$

Usually ships in 3-6 days

0

12

Honda 90018-Z0H-003

BOLT, SOCKET (5X16)

$0.99

$

In Stock, only 3 left!

0

13

Honda 91504-ZM3-003

COLLAR

$1.99

$

In Stock, only 3 left!

0

14

Honda 91506-ZM3-000

COLLAR A, HEAD COVER

$1.99

$

In Stock, only 4 left!

0
