GX25 N ST3 (GCADK) - Honda Engine, Made in Japan (SN: GCADK-1000001 - GCADK-9999999) CARBURETOR Parts Diagram

Engine, Made in Japan

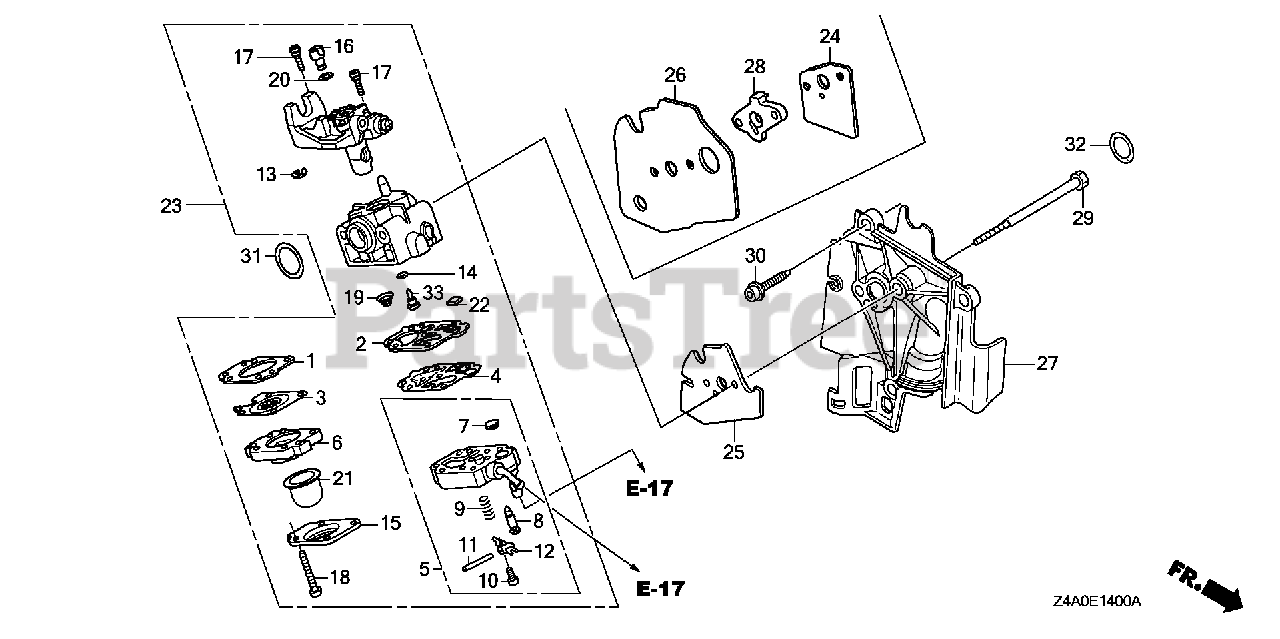

CARBURETOR Parts Diagram

  • Title
1

Honda 16010-ZM3-004

GASKET, METERING DIAPHRAGM

$2.49

$

In Stock, Qty 6

0

2

Honda 16011-Z0H-013

GASKET, PUMP

$4.99

$

In Stock, Qty 12

0

3

Honda 16013-Z0H-003

DIAPHRAGM ASSY., METERING

$18.99

$

In Stock, Qty 6

0

4

Honda 16014-ZM3-004

DIAPHRAGM, PUMP

$4.49

$

In Stock, Qty 20+

0

5

Honda 16015-Z0H-013

BODY ASSY., PUMP

$33.99

$

Usually ships in 3-6 days

0

6

Honda 16017-ZM3-004

BODY ASSY., AIR PURGE

$10.99

$

In Stock, Qty 8

0

7

Honda 16018-ZM3-802

SCREEN, INLET

$1.49

$

In Stock, only 1 left!

0

8

Honda 16019-ZM3-004

VALVE, INLET NEEDLE

$5.49

$

Usually ships in 3-6 days

0

9

Honda 16020-ZM3-004

SPRING, METERING LEVER

$2.49

$

In Stock, only 2 left!

0

10

Honda 16021-ZM3-004

SCREW, METERING LEVER PIN

$2.49

$

In Stock, only 2 left!

0

11

Honda 16022-ZM3-014

PIN, METERING LEVER

$2.49

$

In Stock, only 2 left!

0

12

Honda 16023-ZM3-004

LEVER, METERING

$2.99

$

In Stock, Qty 6

0

13

Honda 16024-Z0H-003

RING, RETAINING

$1.99

$

In Stock, Qty 5

0

$2.99

$

In Stock, Qty 8

0

15

Honda 16026-ZM3-004

COVER, PRIMER PUMP

$3.99

$

In Stock, only 1 left!

0

$3.49

$

Usually ships in 3-6 days

0

17

Honda 16028-ZM3-004

SCREW, THROTTLE COLLAR

$1.99

$

In Stock, only 3 left!

0

18

Honda 16029-ZM3-004

SCREW, PUMP COVER

$1.99

$

In Stock, Qty 6

0

19

Honda 16030-ZM3-004

SPRING, PUMP

$1.99

$

In Stock, only 4 left!

0

$1.99

$

Usually ships in 3-6 days

0

21

Honda 16032-ZM3-004

PUMP, PRIMER

$2.99

$

In Stock, Qty 20+

0

22

Honda 16035-ZM3-802

FILTER, FUEL INLET

$11.99

$

In Stock, only 1 left!

0

23

Honda 16100-Z0H-053

CARBURETOR ASSY. (WYB 6F)

$53.99

$

Usually ships in 3-6 days

0

25

Honda 16221-Z0H-000

GASKET, CARBURETOR
(Superseded to 16221-Z0H-010)

$1.49

$

In Stock, Qty 20+

0

$120.99

$

In Stock, Qty 19

0

29

Honda 90014-Z0H-003

BOLT (5X53)

$0.99

$

In Stock, only 2 left!

0

30

Honda 90018-Z0H-003

BOLT, SOCKET (5X16)

$0.99

$

In Stock, only 3 left!

0

31

Honda 91301-ZM3-000

O-RING (14.8X2.4)

$1.49

$

In Stock, only 4 left!

0

32

Honda 91308-Z0H-003

O-RING (12.3X2.4)

$1.99

$

In Stock, Qty 6

0

33

Honda 99101-ZM5-0330

JET (#33)

Note: (Optional).

$11.99

$

In Stock, only 1 left!

0

33

$11.99

$

Usually ships in 3-6 days

0

33

Honda 99101-Z0H-0320

JET (#32)

Note: (Optional).

$5.99

$

In Stock, only 1 left!

0
