GX240 UT2X QAE2 (GCBJT) - Honda Engine, Made in Thailand (SN: GCBJT-2042249 - GCBJT-9999999) STARTER MOTOR (3) Parts Diagram

Engine, Made in Thailand

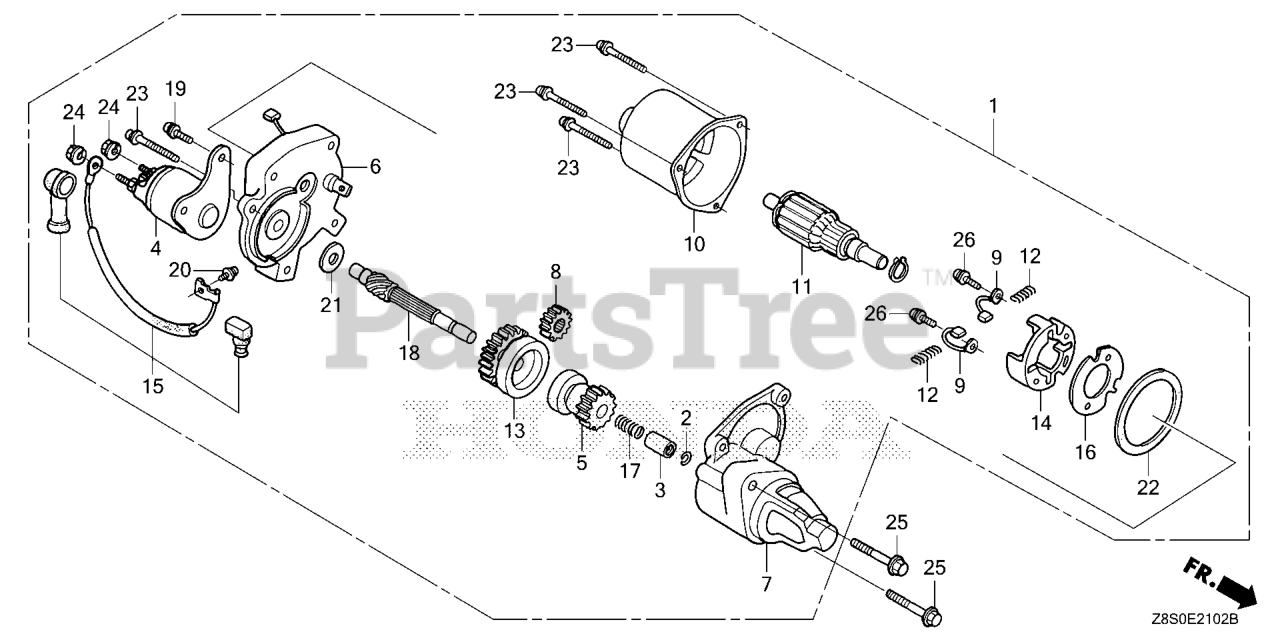

STARTER MOTOR (3) Parts Diagram

  • Title

1

Honda 31200-ZH9-013

SEE PART DETAILS - PRI; STARTER MOTOR ASSY.

$649.99

$

Usually ships in 3-6 days

0

2

Honda 31201-ZA1-003

RING, SNAP (Honda Code 1238195).

$2.49

$

Usually ships in 3-6 days

0

3

Honda 31202-ZA1-003

COLLAR, CLUTCH (Honda Code 1238203).

$19.99

$

Usually ships in 3-6 days

0

4

Honda 31204-ZA0-003

SEE PART DETAILS - PRI; CONTACTOR ASSY. (Honda Code 2108298).

$143.99

$

In Stock, only 1 left!

0

5

Honda 31207-ZH9-003

CLUTCH, OVERRUNNING

$319.99

$

Usually ships in 3-6 days

0

6

Honda 31211-ZE2-003

BRACKET, CENTER (Honda Code 2026433).

$110.99

$

Usually ships in 3-6 days

0

7

Honda 31212-ZE2-003

BRACKET, FR. (Honda Code 2026441).

$132.99

$

Usually ships in 3-6 days

0

8

Honda 31213-ZE2-003

GEAR, DRIVE PINION (Honda Code 2026458).

$56.99

$

Usually ships in 3-6 days

0

9

Honda 31215-ZE2-003

BRUSH (Honda Code 2026474).

$12.99

$

In Stock, only 2 left!

0

10

Honda 31216-ZE2-003

YOKE (Honda Code 2026482).

$46.99

$

Usually ships in 3-6 days

0

11

Honda 31217-ZE2-003

ARMATURE (Honda Code 2026490).

$85.99

$

Usually ships in 3-6 days

0

12

Honda 31219-ZE2-003

SPRING, BRUSH RETURN (Honda Code 2026508).

$4.49

$

In Stock, only 2 left!

0

13

Honda 31222-ZE3-791

SEE PART DETAILS - PRI; GEAR, REDUCTION (Honda Code 2418358).

$37.99

$

Usually ships in 3-6 days

0

14

Honda 31231-ZE2-003

HOLDER, BRUSH (Honda Code 2026516).

$15.99

$

Usually ships in 3-6 days

0

15

Honda 31232-ZE3-003

WIRE, WATER COVER (Honda Code 2108355).

$13.99

$

Usually ships in 3-6 days

0

16

Honda 31233-ZE2-003

INSULATOR (Honda Code 2026524).

$13.99

$

Usually ships in 3-6 days

0

17

Honda 31244-ZH9-003

SPRING

$4.99

$

Usually ships in 3-6 days

0

18

Honda 31245-ZH9-003

SHAFT

$75.99

$

Usually ships in 3-6 days

0

19

Honda 90007-ZE2-003

BOLT-WASHER (5X14)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90110-ZE2-003

SCREW-WASHER (4X6) (Honda Code 2027100).

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90403-ZH9-003

WASHER, SK

$6.99

$

Usually ships in 3-6 days

0

22

Honda 91601-ZE2-003

GASKET (Honda Code 2027266).

$7.99

$

Usually ships in 3-6 days

0

23

Honda 93892-05032-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X3) (Honda Code 1171891).

$1.99

$

In Stock, Qty 6

0

24

Honda 94070-06080

SEE PART DETAILS - PRI; NUT-WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

$1.99

$

In Stock, Qty 6

0

26

Honda 31219-ZE3-003

SCREW-WASHER (4X14)

$4.49

$

Usually ships in 3-6 days

0
