GX240 UT2 WKK2/A (GCBJT) - Honda Engine, Made in Thailand (SN: GCBJT-2000001 - GCBJT-2042248) MUFFLER (4) Parts Diagram

Engine, Made in Thailand

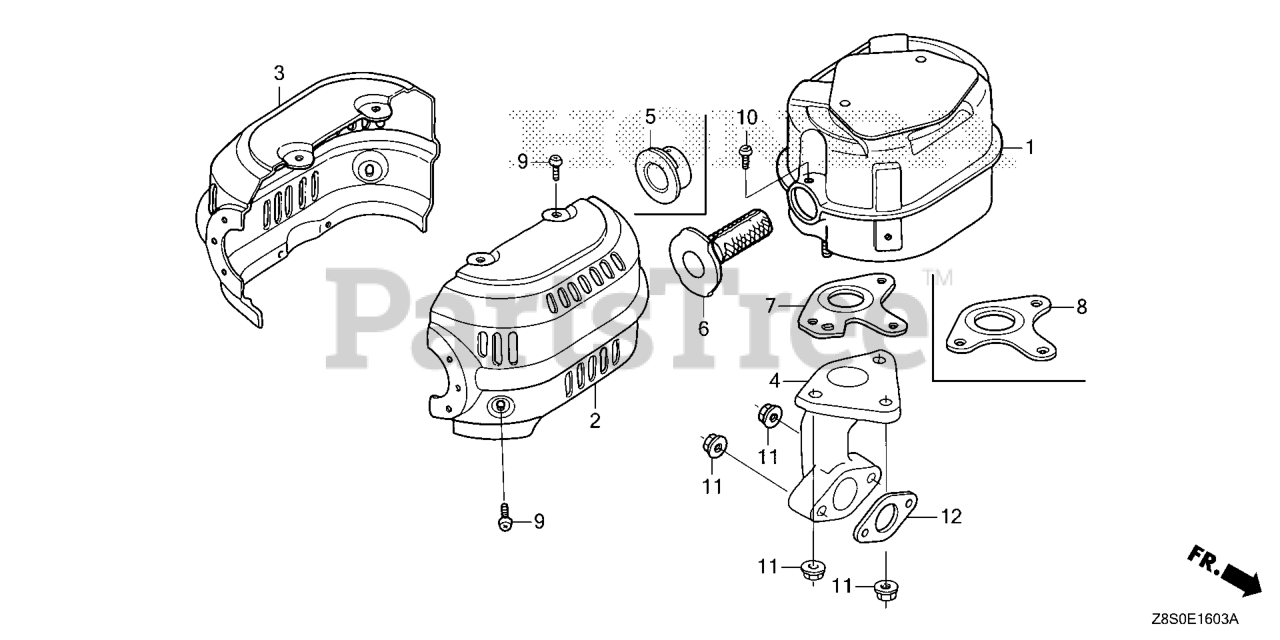

MUFFLER (4) Parts Diagram

  • Title
1

Honda 18310-Z8S-811

SEE PART DETAILS - PRI; MUFFLER

$45.99

$

Usually ships in 3-6 days

0

2

Honda 18320-ZE2-P31

SEE PART DETAILS - PRI; PROTECTOR, R. MUFFLER (STD)

$43.99

$

Usually ships in 3-6 days

0

3

Honda 18325-ZE2-P30

PROTECTOR, L. MUFFLER (STD)

$56.99

$

Usually ships in 3-6 days

0

4

Honda 18330-ZE2-000

PIPE, EX. (Honda Code 2026219).

$70.99

$

In Stock, only 1 left!

0

6

Honda 18355-ZE2-010

SEE PART DETAILS - PRI; ARRESTER, SPARK (Honda Code 2482594).

$25.99

$

Usually ships in 3-6 days

0

7

Honda 18381-ZE2-W10

SEE PART DETAILS - PRI; GASKET, MUFFLER (ARRESTER) (Honda Code 3678802).

Note: (Optional)

$12.99

$

In Stock, Qty 7

0

7

Honda 18381-Z8S-801

GASKET, MUFFLER (ARRESTER)(THAI LEAKLESS)

$3.49

$

In Stock, only 1 left!

0

9

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

10

Honda 90050-ZE1-000

SCREW, TAPPING (5X8) (Honda Code 1431105).

$2.49

$

In Stock, Qty 20+

0

11

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

12

Honda 18333-Z1C-801

GASKET, EX. PIPE

$3.49

$

In Stock, only 1 left!

0
