GX240 UT2 QZA2 (GCBJT) - Honda Engine, Made in Thailand (SN: GCBJT-1000001 - GCBJT-9999999) CONTROL BOX (3) Parts Diagram

Engine, Made in Thailand

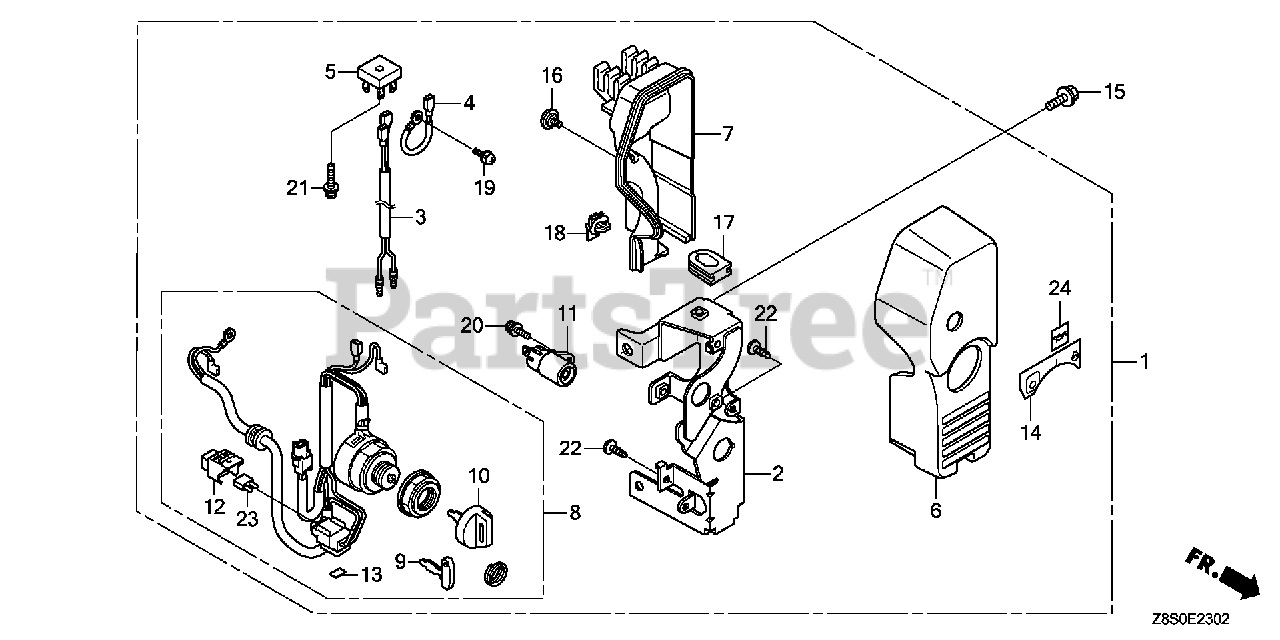

CONTROL BOX (3) Parts Diagram

  • Title
1

Honda 31610-Z5T-W00

BOX ASSY., CONTROL

$211.99

$

Usually ships in 3-6 days

0

2

Honda 31614-Z5T-W00

BRACKET, SWITCH BOX

$31.99

$

Usually ships in 3-6 days

0

3

Honda 31711-Z5T-W00

WIRE, CHARGE COIL

$4.49

$

Usually ships in 3-6 days

0

4

Honda 31712-Z5T-W00

WIRE, GROUND

$4.99

$

Usually ships in 3-6 days

0

5

$22.99

$

Usually ships in 3-6 days

0

6

Honda 32346-Z5T-W00

PANEL, CONTROL

$46.99

$

Usually ships in 3-6 days

0

7

Honda 32612-Z5T-W00

COVER, CONTROL

$19.99

$

Usually ships in 3-6 days

0

8

Honda 35100-Z5T-W01

SWITCH ASSY., COMBINATION (IND)

$346.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

10

Honda 35110-Z5T-W11

KEY ASSY., COMBINATION SWITCH (BLACK)

$11.99

$

Usually ships in 3-6 days

0

11

Honda 37150-Z5T-W01

INDICATOR ASSY.

$193.99

$

Usually ships in 3-6 days

0

12

Honda 38216-Z2E-003

COVER ASSY., FUSE

$7.99

$

Usually ships in 3-6 days

0

13

Honda 87117-Z2E-800

LABEL, FUSE (30A)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 87501-Z5T-W00

MARK, ENGINE SWITCH

$8.99

$

Usually ships in 3-6 days

0

15

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

16

Honda 90380-MB2-000

SCREW, SPECIAL (6X8)

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90601-Z5T-W00

GROMMET, CONTROL BOX

$4.99

$

Usually ships in 3-6 days

0

18

Honda 91565-SEL-003

CLIP, CONNECTOR (BLACK)

$5.99

$

In Stock, only 1 left!

0

19

Honda 93891-04008-08

SCREW-WASHER (4X8)

$1.49

$

In Stock, Qty 10

0

20

Honda 93891-04010-08

SCREW-WASHER (4X10)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 93893-04020-08

SCREW-WASHER (4X20)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 93913-24310

SCREW, TAPPING (4X14) (PO)

$0.99

$

Usually ships in 3-6 days

0

23

Honda 98200-43000

FUSE, MINI (30A)

$2.49

$

In Stock, Qty 8

0

24

Honda 87594-Z5T-W00

MARK, OIL CAUTION

$3.99

$

Usually ships in 3-6 days

0
