GX240 UT2 QXC9 (GCBJT) - Honda Engine, Made in Thailand (SN: GCBJT-1000001 - GCBJT-9999999) FUEL TANK Parts Diagram

Engine, Made in Thailand

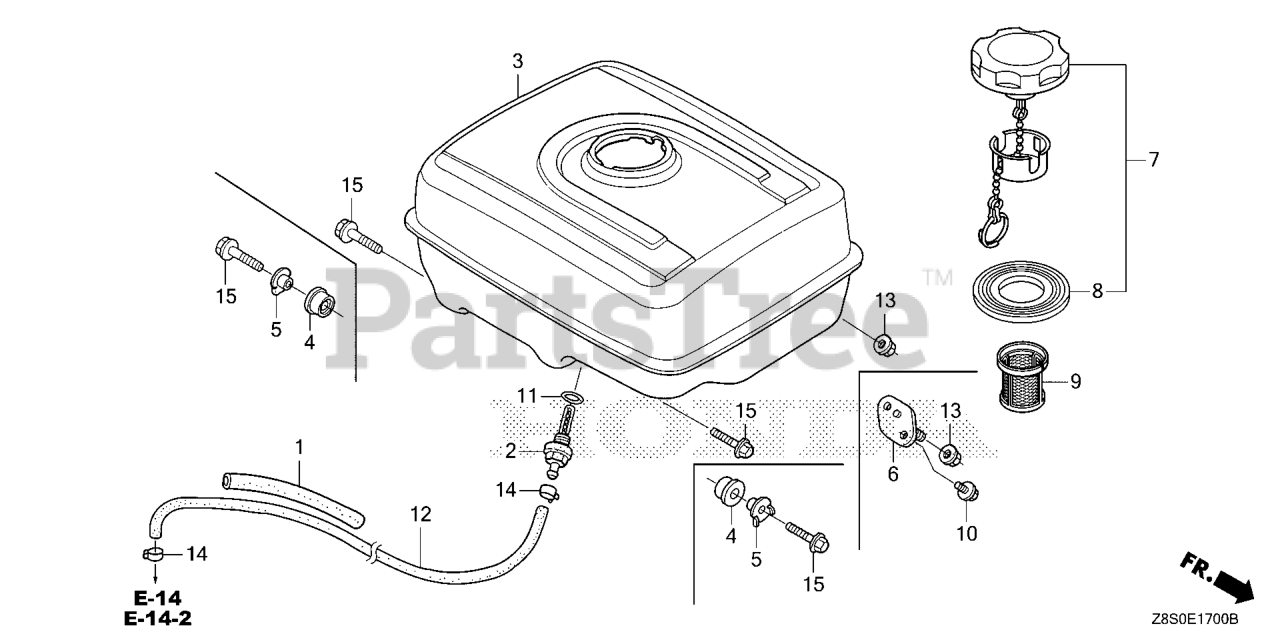

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.49

$

In Stock, Qty 12

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-Z5K-000ZA

TANK, FUEL *NH1* (BLACK)

$66.99

$

Usually ships in 3-6 days

0

3

Honda 17510-Z5K-000ZB

TANK, FUEL *NH31* (MCKINLEY WHITE)

$60.99

$

Usually ships in 3-6 days

0

7

Honda 17620-Z4H-030

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-Z4H-900)

Note: Use up to Engine SN 1029482.

$79.99

$

Usually ships in 3-6 days

0

7

Honda 17620-Z4H-900

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: Use up to Engine SN 2025590. Use up to Engine SN 1029482.

$79.99

$

Usually ships in 3-6 days

0

7

Honda 17620-Z4H-910

CAP, FUEL FILLER
(Superseded to 17620-Z4H-912)

Note: Use from Engine SN 2025591.

$79.99

$

In Stock, Qty 8

0

7

Honda 17620-Z4H-912

CAP, FUEL FILLER

Note: Use from Engine SN 2025591.

$79.99

$

In Stock, Qty 8

0

8

Honda 17631-Z0T-801

GASKET, FUEL FILLER CAP (Honda Code 7346745).

$0.99

$

In Stock, Qty 8

0

8

Honda 17631-Z1T-800

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)

$

$

Not available

11

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

12

Honda 91424-Z5K-013

TUBE, FUEL (4.5X210) (FKM)

$12.99

$

In Stock, only 2 left!

0

13

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

14

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, only 4 left!

0

15

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, Qty 5

0
